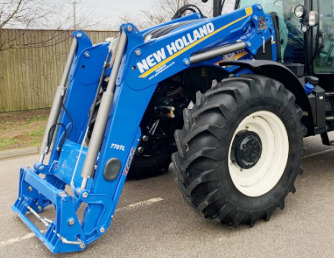

New Holland 770TL Front End Loader

The New Holland 770TL mechanical self leveling loader fits New Holland T6.155, T6.165, T6.175 tractors. The loader has double acting bucket and lift hydraulic cylinders. The New Holland 770TL front-end loader has a max lift height of 168.4" (4260 mm) at pin and bucket dump clearance of 126.9" (3210 mm).

The lift capacity is 5025 lbs (2284 kg) to max height at pin, and boom breakout force is 6170 lbs (2800 kg). The New Holland 770TL loader is equipped with the following buckets: a 95" (2400 mm) heavy-duty material bucket with a heaped capacity of 0.95 m3 (33.5 cu.ft), or 83" (2100 mm) heavy-duty high volume bucket with a heaped capacity of 1.5 m3 (52.9 cu.ft).

Compatible Tractors
Tractor model New Holland T6.155, T6.165, T6.175
Front tires 380/85-R28
Rear tires 460/85-R38
Pump capacity, gpm (lpm) 18.5 (70.0)

Loader
Loader model New Holland 770TL MSL
Leveling configuration Mechanical Self Leveling
Weight without bucket, lb (kg) 1490 (680)

Heavy Duty Material Bucket
Width, in (mm) 95 (2400)
Struck capacity, cu.ft (m3) 27,8 (0,79)
Heaped capacity, cu.ft (m3) 33,5 (0,95)
Weight, lb (kg) 816 (371)

Heavy Duty High Volume Bucket
Width, in (mm) 83 (2100)
Struck capacity, cu.ft (m3) 42,1 (1,20)
Heaped capacity, cu.ft (m3) 52,9 (1,50)
Weight, lb (kg) 932 (424)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 168.4 (4260)
Maximum lift height under level bucket, in (mm) 160.1 (4050)
Clearance with bucket dumped, in (mm) 126.9 (3210)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 76.3 (1930)
Reach at maximum height, in (mm) 31.0 (785)
Maximum rollback angle at ground level, degrees 46
Maximum dump angle at full height, degrees 59

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 5025 (2284)
Breakout force at pivot pin, lb (kg) 6170 (2800))
Bucket rollback force at ground level, lb (kg) 7471 (3396)
