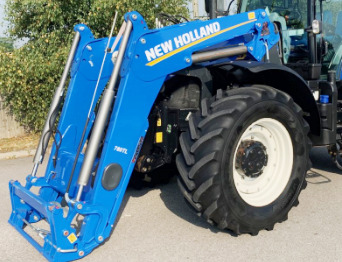

New Holland 780TL Front End Loader

The New Holland 780TL mechanical self leveling loader is used for New Holland T7.170, T7.210 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The New Holland 780TL front end loader has a lifting capacity (at pivot pin) of 5544 lbs (2520 kg) to maximum height of 176.3 in (4460 mm), and bucket's breakout force of 7425 lbs (3375 kg).

The bucket dump clearance is 134.8 in (3410 mm) at maximum dump angle of 59 degrees. The New Holland 780TL loader is compatible with a 95" (2400 mm) standard material bucket with a heaped capacity of 0.95 m3 (33.5 cu.ft), or 87" (2200 mm) high volume bucket with a heaped capacity of 1.28 m3 (45.1 cu.ft).

Compatible Tractors
Tractor model New Holland T7.170, T7.210
Front tires 14.9-R28
Rear tires 18.4-R38
Pump capacity, gpm (lpm) 33.0 (125.0)

Loader
Loader model New Holland 780TL MSL
Leveling configuration Mechanical Self Leveling
Weight without bucket, lb (kg) 1740 (790)

Standard Material Bucket
Width, in (mm) 95 (2400)
Struck capacity, cu.ft (m3) 27,81 (0,79)
Heaped capacity, cu.ft (m3) 33,5 (0,95)
Weight, lb (kg) 644 (293)

High Volume Bucket
Width, in (mm) 87 (2200)
Struck capacity, cu.ft (m3) 37,5 (1,06)
Heaped capacity, cu.ft (m3) 45,1 (1,28)
Weight, lb (kg) 650 (295)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 176.3 (4460)
Maximum lift height under level bucket, in (mm) 168.0 (4250)
Clearance with bucket dumped, in (mm) 134.8 (3410)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 80.2 (2030)
Reach at maximum height, in (mm) 31.6 (800)
Maximum rollback angle at ground level, degrees 46
Maximum dump angle at full height, degrees 59

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 5544 (2520)
Breakout force at pivot pin, lb (kg) 6470 (2940)
Bucket rollback force at ground level, lb (kg) 7425 (3375)
