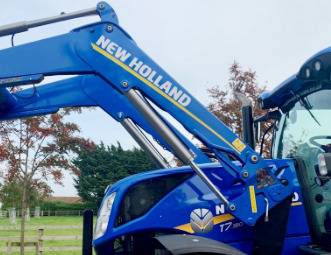

New Holland 790TL Front End Loader

The New Holland 790TL MSL loader is compatible with New Holland T7.220, T7.250, T7.270 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The New Holland 790TL loader has a lift capacity (at pivot pin) of 5810 lbs (2640 kg) to a maximum height of 188.2" (4760 mm) and breakout force of 8032 lbs (3651 kg) with bucket on ground. A full dump clearance with a 59-degree maximum dump angle is 146.2" (3700 mm).

The New Holland 790TL loader is equipped with the following buckets: a 95" (2400 mm) standard material bucket with a rated capacity of 0.95 m3 (33.5 cu.ft), or 87" (2200 mm) high volume bucket with a rated capacity of 1.28 m3 (45.1 cu.ft).

Compatible Tractors
Tractor model New Holland T7.220, T7.250, T7.270
Front tires 380/85 R34
Rear tires 480/80 R46
Pump capacity, gpm (lpm) 39.6 (150.0)

Loader
Loader model New Holland 790TL MSL
Leveling configuration Mechanical Self Leveling
Weight without bucket, lb (kg) 1870 (850)

Standard Material Bucket
Width, in (mm) 95 (2400)
Struck capacity, cu.ft (m3) 27,81 (0,79)
Heaped capacity, cu.ft (m3) 33,5 (0,95)
Weight, lb (kg) 644 (293)

High Volume Bucket
Width, in (mm) 87 (2200)
Struck capacity, cu.ft (m3) 37,5 (1,06)
Heaped capacity, cu.ft (m3) 45,1 (1,28)
Weight, lb (kg) 650 (295)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 188.2 (4760)
Maximum lift height under level bucket, in (mm) 179.8 (4550)
Clearance with bucket dumped, in (mm) 146.2 (3700)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 85.8 (2170)
Reach at maximum height, in (mm) 33.2 (840)
Maximum rollback angle at ground level, degrees 46
Maximum dump angle at full height, degrees 59

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 5810 (2640)
Breakout force at pivot pin, lb (kg) 6776 (3080)
Bucket rollback force at ground level, lb (kg) 8032 (3651)
