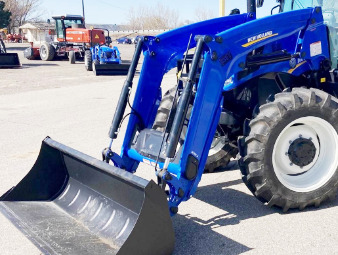

New Holland 810LA Loader
The
New Holland 810LA front end loader is designed for New Holland TS6.110-TS6.140,
T6.145, T6.155, T6.175, T6.180 tractors. The front end loader has double acting
hydraulic bucket and lift cylinders. The New Holland 810LA front end loader has
a lift capacity (at bucket pin) of 3373 lbs (1530 kg) to a max height of 145"
(3680 mm) and breakout force (bucket on ground) of 4387 lbs (1990 kg).
The clearance with a bucket dumped is 107" (2710 mm) at a maximum dump
angle of 62 degrees. The New Holland 810LA loader is compatible with the
following buckets: 83" (2100 mm) standard or heavy-duty material buckets
with heaped capacities of 0.75 m3 (0.89 cu.yd) and 0.81 m3 (1.07 cu.yd).
| Tractor Models |
New Holland TS6.110, TS6.120, TS6.130, TS6.140, T6.145, T6.155, T6.175, T6.180 |
| Front Tires |
14.9R24 |
| Rear Tires |
16.9R38 |
| Hydraulic System Flow, gpm (lpm) |
16.1 (61.0) |
| Loader Model |
New Holland 810LA NSL |
| Leveling System |
Non Self Leveling |
| Weight, lbs (kg) |
2420 (1100) |
| Width, in (mm) |
83 (2100) |
| Struck Capacity, cu.yd (m3) |
0.72 (0.55) |
| Heaped Capacity, cu.yd (m3) |
0.89 (0.75) |
| Heavy Duty Material Bucket |
| Width, in (mm) |
83 (2100) |
| Struck Capacity, cu.yd (m3) |
0.90 (0.76) |
| Heaped Capacity, cu.yd (m3) |
1.07 (0.81) |
| Maximum lift height to bucket pivot pin (T6.145-T6.180), in (mm) |
143 (3640) |
| Maximum lift height to bucket pivot pin (TS6.110-TS6.140), in (mm) |
145 (3680) |
| Maximum lift height under level bucket (T6.145-T6.180), in (mm) |
131 (3330) |
| Maximum lift height under level bucket (TS6.110-TS6.140), in (mm) |
133 (3370) |
| Clearance with bucket dumped 45 deg (T6.145-T6.180), in (mm) |
105 (2670) |
| Clearance with bucket dumped 45 deg (TS6.110-TS6.140), in (mm) |
107 (2710) |
| Reach at maximum lift height, bucket dump at 45 deg (T6.145-T6.180), in (mm) |
35.4 (900) |
| Reach at maximum lift height, bucket dump at 45 deg (TS6.110-TS6.140), in (mm) |
47 (1200) |
| Reach with bucket on ground level (T6.145-T6.180), in (mm) |
84 (2130) |
| Reach with bucket on ground level (TS6.110-TS6.140), in (mm) |
88 (2240) |
| Maximum dump angle, loader fully raised (T6.145-T6.180), degrees |
60 |
| Maximum dump angle, loader fully raised (TS6.110-TS6.140), degrees |
62 |
| Maximum rollback angle, bucket at ground (T6.145-T6.180), degrees |
44 |
| Maximum rollback angle, bucket at ground (TS6.110-TS6.140), degrees |
42 |
| Digging depth (T6.145-T6.180), in (mm) |
53.1 (80) |
| Digging depth (TS6.110-TS6.140), in (mm) |
2.0 (50) |
| Lift capacity to max height at pivot pin (T6.145-T6.180), lbs (kg) |
3836 (1740) |
| Lift capacity to max height at pivot pin (TS6.110-TS6.140), lbs (kg) |
3373 (1530) |
| Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (T6.145-T6.180), lbs (kg) |
2381 (1080) |
| Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (TS6.110-TS6.140), lbs (kg) |
2094 (950) |
| Lift capacity to 59" (1.5m) height at pivot pin (T6.145-T6.180), lbs (kg) |
4277 (1940) |
| Lift capacity to 59" (1.5m) height at pivot pin (TS6.110-TS6.140), lbs (kg) |
3770 (1710) |
| Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (T6.145-T6.180), lbs (kg) |
3175 (1440) |
| Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (TS6.110-TS6.140), lbs (kg) |
2778 (1260) |
| Boom breakout force at pivot pin (T6.145-T6.180), lbs (kg) |
4982 (2260) |
| Boom breakout force at pivot pin (TS6.110-TS6.140), lbs (kg) |
4387 (1990) |
| Boom breakout force at 31.5" (0.8m) forward of pivot pin (T6.145-T6.180), lbs (kg) |
3439 (1560) |
| Boom breakout force at 31.5" (0.8m) forward of pivot pin (TS6.110-TS6.140), lbs (kg) |
3020 (1370) |
| Bucket rollback force at max height (T6.145-T6.180), lbs (kg) |
3109 (1410) (13.8) |
| Bucket rollback force at max height (TS6.110-TS6.140), lbs (kg) |
2734 (1240) |
| Bucket rollback force at ground level (T6.145-T6.180), lbs (kg) |
5490 (2490) |
| Bucket rollback force at ground level (TS6.110-TS6.140), lbs (kg) |
4828 (2190) |
