New Holland 810TL Loader
The

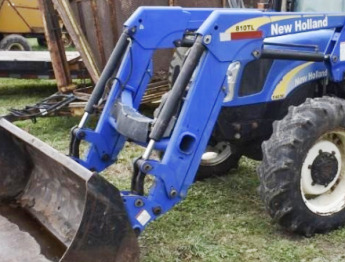

New Holland 810TL loader fits New Holland T4030, T4040, T4050, TN60A, TN70A,
TN75A tractors. The loader has double acting bucket and lift hydraulic
cylinders. The New Holland 810TL front-end loader has a max lift height of 122"
(3100 mm) at pin and bucket dump clearance of 85" (2160 mm). The lift capacity
is 3300 lbs (1495 kg) to max height at pin, and boom breakout force is 4200 lbs
(1905 kg).
The rated cycle times are 3.3 seconds raising to maximum height, and 3.5
seconds maximum bucket dumping. The New Holland 810TL loader is equipped
with the following buckets: 73" (1850 mm) and 83" (2100 mm) standard
material buckets with heaped capacities of 0.59 m3 (0.78 cu.yd) and 0.75
m3 (0.89 cu.yd).
| Tractor Models |
New Holland T4030, T4040, T4050, TN60A, TN70A, TN75A |
| Front Tires |
12.4x20R1 |
| Rear Tires |
16.9x28R1 |
| Hydraulic System Flow, gpm (lpm) |
16.1 (61.0) |
| Loader Model |
New Holland 810TL NSL/MSL |
| Leveling System |
Non Self Leveling / Mechanical Self Leveling |
| Weight w/o Bucket (NSL), lbs (kg) |
960 (435) |
| Weight w/o Bucket (MSL), lbs (kg) |
1115 (506) |
| 73" Standard Material Bucket |
| Width, in (mm) |
73 (1850) |
| Struck Capacity, cu.yd (m3) |
0.63 (0.49) |
| Heaped Capacity, cu.yd (m3) |
0.78 (0.59) |
| 83" Standard Material Bucket |
| Width, in (mm) |
83 (2100) |
| Struck Capacity, cu.yd (m3) |
0.72 (0.55) |
| Heaped Capacity, cu.yd (m3) |
0.89 (0.75) |
| 73" Heavy Duty Material Bucket |
| Width, in (mm) |
73 (1850) |
| Struck Capacity, cu.yd (m3) |
0.78 (0.59) |
| Heaped Capacity, cu.yd (m3) |
0.94 (0.71) |
| 83" Heavy Duty Material Bucket |
| Width, in (mm) |
83 (2100) |
| Struck Capacity, cu.yd (m3) |
0.90 (0.76) |
| Heaped Capacity, cu.yd (m3) |
1.07 (0.81) |
| Maximum Lift Height to Pivot Pin, in (mm) |
122 (3100) |
| Maximum Lift Height under Level Bucket, in (mm) |
110 (2795) |
| Clearance with Bucket Dumped, in (mm) |
85 (2160) |
| Reach at Maximum Lift Height, in (mm) |
30 (760) |
| Digging Depth, in (mm) |
8 (203) |
| Maximum Dump Angle, degrees |
65 |
| Reach with Bucket on Ground, in (mm) |
86 (2185) |
| Maximum Rollback Angle, degrees |
45 |
| Lift Capacity to Full Height at Pivot Pin (NSL), lbs (kg) |
3300 (1495) |
| Lift Capacity to Full Height at Pivot Pin (MSL), lbs (kg) |
3200 (1450) |
| Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (NSL), lbs (kg) |
2100 (953) |
| Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (MSL), lbs (kg) |
2500 (1135) |
| Lift Capacity to 59" (1.5m) Height at Pivot Pin (NSL), lbs (kg) |
3750 (1700) |
| Lift Capacity to 59" (1.5m) Height at Pivot Pin (MSL), lbs (kg) |
3650 (1655) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (NSL), lbs (kg) |
2400 (1090) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (MSL), lbs (kg) |
2950 (1338) |
| Breakout Force at Pivot Pin (NSL), lbs (kg) |
4200 (1905) |
| Breakout Force at Pivot Pin (MSL), lbs (kg) |
3850 (1745) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (NSL), lbs (kg) |
2650 (1202) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (MSL), lbs (kg) |
3200 (1450) |
| Raising Time, seconds |
3.3 |
| Lowering Time, seconds |
2.1 |
| Bucket Dump Time, seconds |
3.5 |
| Bucket Rollback Time, seconds |
2.4 |
