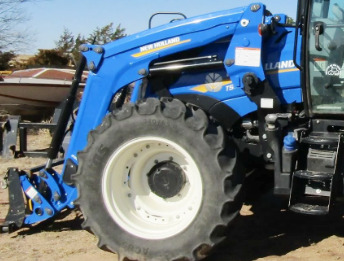

New Holland 815LA Loader

The New Holland 815LA loader is used for New Holland T4.90, T4.110, T4.120, T5.110, T5.120 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The New Holland 815LA front end loader has a lifting capacity (at pivot pin) of 2866 lbs (1300 kg) to maximum height of 141" (3580 mm), and bucket's breakout force of 3792 lbs (1720 kg).

The bucket dump clearance is 103" (2610 mm) at maximum dump angle of 60 degrees. The New Holland 815LA loader is compatible with a 83" (2100 mm) standard material bucket with a heaped capacity of 0.75 m3 (0.89 cu.yd), or 83" (2100 mm) heavy-duty material bucket with a heaped capacity of 0.81 m3 (1.07 cu.yd).

Compatible Tractors
Tractor Models New Holland T4.90, T4.110, T4.120, T5.110, T5.120
Front Tires 14.9R24
Rear Tires 16.9R38
Hydraulic System Flow, gpm (lpm) 16.1 (61.0)

Loader
Loader Model New Holland 815LA MSL
Leveling System Mechanical Self Leveling
Weight, lbs (kg) 2530 (1150)

Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.yd (m3) 0.72 (0.55)
Heaped Capacity, cu.yd (m3) 0.89 (0.75)

Heavy Duty Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.yd (m3) 0.90 (0.76)
Heaped Capacity, cu.yd (m3) 1.07 (0.81)

Loader Dimensions
Maximum lift height to bucket pivot pin (T4.90-T4.120), in (mm) 141 (3580)
Maximum lift height to bucket pivot pin (T5.110-T5.120), in (mm) 144 (3660)
Maximum lift height under level bucket (T4.90-T4.120), in (mm) 129 (3270)
Maximum lift height under level bucket (T5.110-T5.120), in (mm) 132 (3350)
Clearance with bucket dumped 45 deg (T4.90-T4.120), in (mm) 103 (2610)
Clearance with bucket dumped 45 deg (T5.110-T5.120), in (mm) 106 (2690)
Reach at maximum lift height, bucket dump at 45 deg (T4.90-T4.120), in (mm) 39 (980)
Reach at maximum lift height, bucket dump at 45 deg (T5.110-T5.120), in (mm) 37 (940)
Reach with bucket on ground level (T4.90-T4.120), in (mm) 95 (2410)
Reach with bucket on ground level (T5.110-T5.120), in (mm) 91 (2300)
Maximum dump angle, loader fully raised, degrees 60
Maximum rollback angle, bucket at ground (T4.90-T4.120), degrees 46
Maximum rollback angle, bucket at ground (T5.110-T5.120), degrees 43
Digging depth (T4.90-T4.120), in (mm) 5.5 (140)
Digging depth (T5.110-T5.120), in (mm) 2.4 (60)

Operating Data
Lift capacity to max height at pivot pin (T4.90-T4.120), lbs (kg) 2866 (1300)
Lift capacity to max height at pivot pin (T5.110-T5.120), lbs (kg) 3064 (1390)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (T4.90-T4.120), lbs (kg) 3241 (1470)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (T5.110-T5.120), lbs (kg) 3461 (1570)
Lift capacity to 59" (1.5m) height at pivot pin (T4.90-T4.120), lbs (kg) 3219 (1460)
Lift capacity to 59" (1.5m) height at pivot pin (T5.110-T5.120), lbs (kg) 3439 (1560)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (T4.90-T4.120), lbs (kg) 3285 (1490)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (T5.110-T5.120), lbs (kg) 3505 (1590)
Boom breakout force at pivot pin (T4.90-T4.120), lbs (kg) 3792 (1720)
Boom breakout force at pivot pin (T5.110-T5.120), lbs (kg) 4057 (1840)
Boom breakout force at 31.5" (0.8m) forward of pivot pin (T4.90-T4.120), lbs (kg) 3417 (1550)
Boom breakout force at 31.5" (0.8m) forward of pivot pin (T5.110-T5.120), lbs (kg) 3660 (1660)
Bucket rollback force at max height (T4.90-T4.120), lbs (kg) 3064 (1390)
Bucket rollback force at max height (T5.110-T5.120), lbs (kg) 3263 (1480)
Bucket rollback force at ground level (T4.90-T4.120), lbs (kg) 5004 (2270)
Bucket rollback force at ground level (T5.110-T5.120), lbs (kg) 5357 (2430)
