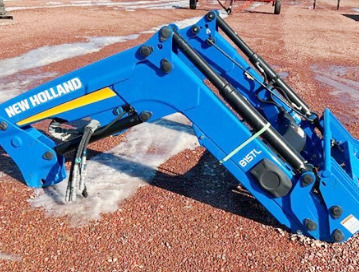

New Holland 815TL Loader

The New Holland 815TL loader is compatible with New Holland T4.75F, T4.105F, T4040, T4050 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The New Holland 815TL NSL loader has a lift capacity (at 31.5" ahead of pivot pin) of 2772 lbs (1260 kg) to a maximum height of 124.8" (3170 mm) and breakout force of 2948 lbs (1340 kg) at 31.5" ahead of pivot pin.

A full dump clearance with a 62-degree maximum dump angle is 86.4" (2195 mm). The New Holland 815TL loader is equipped with 63" (1600 mm) and 83" (2100 mm) standard material buckets with heaped capacities of 0.65 m3 (23 cu.ft) and 0.68 m3 (24 cu.ft), or 79" (2000 mm) high volume bucket with a heaped capacity of 1.17 m3 (41.3 cu.ft).

Compatible Tractors
Tractor model New Holland T4.75F, T4.105F, T4040, T4050
Front tires 280/70 R20
Rear tires 420/70 R28
Pump capacity, gpm (lpm) 12.8 (48.5)

Loader
Loader model New Holland 815TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Lift cylinder diameter (NSL), in (mm) 2.75 (70)
Lift cylinder diameter (MSL), in (mm) 2.55 (65)
Lift cylinder stroke, in (mm) 19.29 (490)
Bucket cylinder diameter, in (mm) 2.95 (75)
Bucket cylinder stroke (NSL), in (mm) 20.87 (530)
Bucket cylinder stroke (MSL), in (mm) 15.94 (405)
Weight, lb (kg) 2796 (1270)

63" Standard Material Bucket
Width, in (mm) 63 (1600)
Struck capacity, cu.ft (m3) 19,17 (0,54)
Heaped capacity, cu.ft (m3) 22,95 (0,65)
Weight, lb (kg) 368 (167)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck capacity, cu.ft (m3) 19,44 (0,55)
Heaped capacity, cu.ft (m3) 24,0 (0,68)
Weight, lb (kg) 505 (230)

High Volume Bucket
Width, in (mm) 79 (2000)
Struck capacity, cu.ft (m3) 34,29 (0,97)
Heaped capacity, cu.ft (m3) 41,31 (1,17)
Weight, lb (kg) 602 (274)

Loader Dimensions
Maximum lift height to pin (T4.75F, T4.105F), in (mm) 123,6 (3127)
Maximum lift height to pin (T4040, T4050), in (mm) 124,8 (3170)
Clearance with bucket dumped (T4.75F, T4.105F), in (mm) 85,2 (2156)
Clearance with bucket dumped (T4040, T4050), in (mm) 86,4 (2195)
Digging depth (T4.75F, T4.105F), in (mm) 6,7 (170)
Digging depth (T4040, T4050), in (mm) 5,9 (150)
Reach at maximum lift height (T4.75F, T4.105F), in (mm) 34,7 (878)
Reach at maximum lift height (T4040, T4050), in (mm) 27,6 (700)
Reach with bucket on ground, in (mm) 86,3 (2183)
Maximum dump angle (T4.75F, T4.105F), degrees 60
Maximum dump angle (T4040, T4050), degrees 62
Maximum rollback angle (T4.75F, T4.105F), degrees 47
Maximum rollback angle (T4040, T4050), degrees 43

Operating Data
Lift capacity to full height at 31.5" (0.8m) ahead of pin (NSL), lb (kg) 2772 (1260)
Lift capacity to full height at 31.5" (0.8m) ahead of pin (MSL), lb (kg) 3124 (1420)
Breakout force at 31.5" (0.8m) ahead of pin (NSL), lb (kg) 2948 (1340)
Breakout force at 31.5" (0.8m) ahead of pin (MSL), lb (kg) 3300 (1500)
