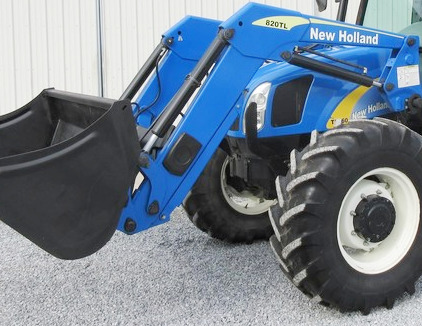

New Holland 820TL Front End Loader

The New Holland 820TL non self-leveling or mechanical self-leveling loader is fitted to New Holland T4030, T4040, T4050 tractors. The front end loader hydraulic system includes double-acting lift and bucket hydraulic cylinders.

The New Holland 820TL NSL loader has a lifting capacity (at 31.5" from pivot pin) of 2500 lbs (1134 kg) to max height of 133" (3378 mm), and bucket's breakout force of 3100 lbs (1406 kg). The bucket dump clearance with a 53-degree max dump angle is 96" (2438 mm).

The New Holland 820TL loader is compatible with the following buckets: a 73" (1850 mm) standard material bucket with a heaped capacity of 0.78 cu.yd (0.59 cu.m), 83" (2100 mm) standard material bucket with a heaped capacity of 0.89 cu.yd (0.75 cu.m), 79" (2000 mm) high volume bucket with a heaped capacity of 1.53 cu.yd (1.16 cu.m), and 87" (2200 mm) high volume bucket with a heaped capacity of 1.67 cu.yd (1.23 cu.m).

Compatible Tractors
Tractor Models New Holland T4030, T4040, T4050
Front Tires 12.4x20R1
Rear Tires 16.9x28R1
Hydraulic System Flow, gpm (lpm) 16.1 (61.0)

Loader
Loader Model NH 820TL NSL/MSL
Leveling System Non Self Leveling/Mechanical Self Leveling
Weight, lbs (kg) 990 (450)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck Capacity, cu. yd (m3) 0.63 (0.49)
Heaped Capacity, cu. yd (m3) 0.78 (0.59)
Weight, lbs (kg) 465 (210)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu. yd (m3) 0.72 (0.55)
Heaped Capacity, cu. yd (m3) 0.89 (0.75)
Weight, lbs (kg) 510 (230)

79" High Capacity Bucket
Width, in (mm) 79 (2000)
Struck Capacity, cu. yd (m3) 1.27 (0.97)
Heaped Capacity, cu. yd (m3) 1.53 (1.16)
Weight, lbs (kg) 540 (245)


87" High Capacity Bucket
Width, in (mm) 87 (2200)
Struck Capacity, cu. yd (m3) 1.39 (1.06)
Heaped Capacity, cu. yd (m3) 1.67 (1.23)
Weight, lbs (kg) 650 (296)

Loader Dimensions
Maximum Lift Height to Pivot Pin (NSL), in (mm) 133 (3378)
Maximum Lift Height to Pivot Pin (MSL), in (mm) 135 (3429)
Clearance with Bucket Dumped (NSL), in (mm) 96 (2438)
Clearance with Bucket Dumped (MSL), in (mm) 97 (2464)
Reach at Maximum Lift Height (NSL), in (mm) 25 (635)
Reach at Maximum Lift Height (MSL), in (mm) 47 (1194)
Digging Depth (NSL), in (mm) 7 (178)
Digging Depth (MSL), in (mm) 6 (152)
Maximum Dump Angle (NSL), degrees 53
Maximum Dump Angle (MSL), degrees 56
Reach with Bucket on Ground (NSL), in (mm) 93 (2362)
Reach with Bucket on Ground (MSL), in (mm) 92 (2337)
Maximum Rollback Angle (NSL), degrees 50
Maximum Rollback Angle (MSL), degrees 46

Operating Data
Lift Capacity to Max. Height at 31.5" (0.8m) from Pivot Pin (NSL), lbs (kg) 2500 (1134)
Lift Capacity to Max. Height at 31.5" (0.8m) from Pivot Pin (MSL), lbs (kg) 2650 (1202)
Max. Breakout Force at 31.5" (0.8m) from Pivot Pin (NSL), lbs (kg) 3100 (1406)
Max. Breakout Force at 31.5" (0.8m) from Pivot Pin (MSL), lbs (kg) 3300 (1497)
