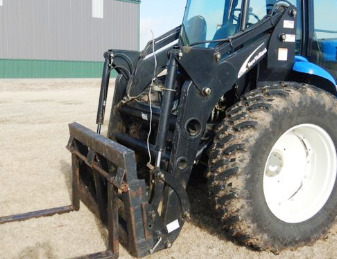

New Holland 82LB Front End Loader

The New Holland 82LB loader fits New Holland TV6070, TV145 tractors. The loader has double acting bucket and lift hydraulic cylinders. The New Holland 82LB front-end loader has a max lift height of 143.8 in (3652 mm) at pin and bucket dump clearance of 110.3 in (2802 mm).

The lift capacity is 6400 lbs (2910 kg) to max height at pin, and boom breakout force is 10300 lbs (4680 kg). The New Holland 82LB loader is equipped with the following buckets: a 95" (2400 mm) standard material bucket with a heaped capacity of 0.94 m3 (1.24 cu.yd), 95" (2400 mm) heavy-duty material bucket with a heaped capacity of 0.94 m3 (1.24 cu.yd), or 102" (2580 mm) heavy-duty material bucket with a heaped capacity of 1.03 m3 (1.35 cu.yd).

Compatible Tractors
Tractor Models New Holland TV6070, TV145
Front Tires 480/85-R34
Rear Tires 480/85-R34
Hydraulic System Flow, gpm (lpm) 29.5 (111)

95" Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

95" Heavy-Duty Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

102" Heavy-Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.yd (m3) 1.11 (0.84)
Heaped Capacity, cu.yd (m3) 1.35 (1.03)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 143.8 (3652)
Clearance with Bucket Dumped, in (mm) 110.3 (2802)
Clearance with Level Bucket, in (mm) 135.4 (3439)
Reach at Maximum Lift Height, in (mm) 41.7 (1059)
Digging Depth, in (mm) 3.2 (81.2)
Maximum Dump Angle, degrees 60
Reach with Bucket on Ground, in (mm) 90 (2285)
Maximum Rollback Angle, degrees 28
Rollback Angle at Full Height, degrees 40
Maximum Bucket Height (Standard Bucket), in (mm) 176.1 (4470)

Operating Data
Lift Capacity to Max Height at Pivot Point (TV6070), lbs (kg) 6400 (2910)
Lift Capacity to Max Height at Pivot Point (TV145), lbs (kg) 6965 (3159)
Lift Capacity to Max Height at 31.5" (0.8m) from Pivot Point (TV6070), lbs (kg) 4050 (1840)
Lift Capacity to Max Height at 31.5" (0.8m) from Pivot Point (TV145), lbs (kg) 4390 (1991)
Breakout Force at Pivot Point (TV6070), lbs (kg) 10300 (4680)
Breakout Force at Pivot Point (TV145), lbs (kg) 13440 (6096)
Breakout Force at 31.5" (0.8m) from Pivot Point (TV6070), lbs (kg) 6440 (2927)
Breakout Force at 31.5" (0.8m) from Pivot Point (TV145), lbs (kg) 8200 (3719)
Bucket Rollback Force at Maximum Height, lbs (kg) 6076 (2756)
Bucket Rollback Force at Ground Level, lbs (kg) 8160 (3701)
