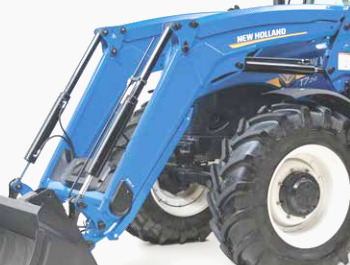

New Holland 830LA Loader
The
New Holland 830LA mechanical self leveling front end loader is designed for New
Holland TS6.110, TS6.120, TS6.140 tractors. The front end loader has double
acting hydraulic bucket and lift cylinders. The New Holland 830LA front end
loader has a lift capacity (at bucket pin) of 3395 lbs (1540 kg) to a max height
of 151" (3840 mm) and breakout force (bucket on ground) of 4409 lbs (2000 kg).
The clearance with a bucket dumped is 113" (2870 mm) at a maximum dump
angle of 62 degrees. The New Holland 830LA loader is compatible with the
following buckets: 95" (2400 mm) standard or heavy-duty material buckets
with heaped capacity of 0.94 m3 (1.24 cu.yd).
| Tractor Models |
New Holland TS6.110, TS6.120, TS6.140 |
| Front Tires |
14.9x24, R1 |
| Rear Tires |
18.4x34, R1 |
| Hydraulic System Flow, gpm (lpm) |
22.0 (83.3) |
| Loader Model |
New Holland 830LA MSL |
| Leveling System |
Mechanical Self Leveling |
| Weight, lb (kg) |
2900 (1320) |
| Width, in (mm) |
95 (2400) |
| Struck Capacity, cu.yd (m3) |
1.03 (0.78) |
| Heaped Capacity, cu.yd (m3) |
1.24 (0.94) |
| Heavy Duty Material Bucket |
| Width, in (mm) |
95 (2400) |
| Struck Capacity, cu.yd (m3) |
1.03 (0.78) |
| Heaped Capacity, cu.yd (m3) |
1.24 (0.94) |
| Maximum lift height to bucket pivot pin, in (mm) |
151 (3840) |
| Maximum lift height under level bucket, in (mm) |
139 (3530) |
| Clearance with bucket dumped 45 deg, lowest point of cutting edge, in (mm) |
113 (2870) |
| Reach at maximum lift height, bucket dump at 45 deg, in (mm) |
38.2 (970) |
| Reach with bucket on ground level, in (mm) |
94.5 (2400) |
| Maximum dump angle, loader fully raised, degrees |
62 |
| Maximum rollback angle, bucket at ground, degrees |
45 |
| Digging Depth, in (mm) |
5 (130) |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
3395 (1540) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin, lbs (kg) |
3814 (1730) |
| Lift capacity to 59" (1.5m) height at pivot pin, lbs (kg) |
3836 (1740) |
| Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin, lbs (kg) |
3858 (1750) |
| Boom breakout force at pivot pin, lbs (kg) |
4409 (2000) |
| Boom breakout force at 31.5" (0.8m) forward of pivot pin, lbs (kg) |
3968 (1800) |
| Bucket rollback force at maximum height, lbs (kg) |
4167 (1890) |
| Bucket rollback force at ground level, lbs (kg) |
6680 (3030) |
