The rated cycle times are 4.1 seconds raising to maximum height, and 3.4
seconds maximum bucket dumping. The New Holland 830TL loader is equipped
with the following buckets: 83" (2100 mm) and 95" (2400 mm) standard
material buckets with heaped capacities of 0.75 m3 (0.89 cu.yd) and 1.07
m3 (0.81 cu.yd), or 73" (1850 mm) and 83" (2100 mm) heavy-duty material
buckets with heaped capacities of 0.71 m3 (0.94 cu.yd) and 0.81 m3 (1.07
cu.yd).
| Maximum Lift Height to Pivot Pin (TS100A, TS110A), in (mm) |
145 (3685) |
| Maximum Lift Height to Pivot Pin (T6020-T6040), in (mm) |
156 (3960) |
| Maximum Lift Height under Level Bucket (TS100A, TS110A), in (mm) |
133 (3380) |
| Maximum Lift Height under Level Bucket (T6020-T6040), in (mm) |
144 (3655) |
| Clearance with Bucket Dumped (TS100A, TS110A), in (mm) |
107 (2720) |
| Clearance with Bucket Dumped (T6020-T6040), in (mm) |
118 (2995) |
| Reach at Maximum Lift Height (TS100A, TS110A), in (mm) |
31 (785) |
| Reach at Maximum Lift Height (T6020-T6040), in (mm) |
38 (965) |
| Digging Depth (TS100A, TS110A), in (mm) |
8 (203) |
| Digging Depth (T6020-T6040), in (mm) |
7 (177) |
| Maximum Dump Angle (TS100A, TS110A), degrees |
63 |
| Maximum Dump Angle (T6020-T6040), degrees |
57 |
| Reach with Bucket on Ground (TS100A, TS110A), in (mm) |
92 (2335) |
| Reach with Bucket on Ground (T6020-T6040), in (mm) |
102 (2590) |
| Maximum Rollback Angle (TS100A, TS110A), degrees |
43 |
| Maximum Rollback Angle (T6020-T6040), degrees |
45 |
| Lift Capacity to Full Height at Pivot Pin (TS100A, TS110A, NSL), lbs (kg) |
4750 (2155) |
| Lift Capacity to Full Height at Pivot Pin (TS100A, TS110A, MSL), lbs (kg) |
4100 (1860) |
| Lift Capacity to Full Height at Pivot Pin (T6020-T6040, NSL), lbs (kg) |
5350 (2427) |
| Lift Capacity to Full Height at Pivot Pin (T6020-T6040, MSL), lbs (kg) |
4650 (2109) |
| Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (TS100A, TS110A, NSL), lbs (kg) |
3150 (1429) |
| Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (TS100A, TS110A, MSL), lbs (kg) |
3350 (1520) |
| Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (T6020-T6040, NSL), lbs (kg) |
3700 (1678) |
| Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (T6020-T6040, MSL), lbs (kg) |
3950 (1791) |
| Lift Capacity to 59" (1.5m) Height at Pivot Pin (TS100A, TS110A, NSL), lbs (kg) |
5400 (2449) |
| Lift Capacity to 59" (1.5m) Height at Pivot Pin (TS100A, TS110A, MSL), lbs (kg) |
4650 (2109) |
| Lift Capacity to 59" (1.5m) Height at Pivot Pin (T6020-T6040, NSL), lbs (kg) |
6050 (1741) |
| Lift Capacity to 59" (1.5m) Height at Pivot Pin (T6020-T6040, MSL), lbs (kg) |
5250 (2381) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (TS100A, TS110A, NSL), lbs (kg) |
3550 (1610) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (TS100A, TS110A, MSL), lbs (kg) |
3800 (1724) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (T6020-T6040, NSL), lbs (kg) |
4200 (1905) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (T6020-T6040, MSL), lbs (kg) |
4400 (1995) |
| Breakout Force at Pivot Pin (TS100A, TS110A, NSL), lbs (kg) |
5850 (2654) |
| Breakout Force at Pivot Pin (TS100A, TS110A, MSL), lbs (kg) |
5000 (2268) |
| Breakout Force at Pivot Pin (T6020-T6040, NSL), lbs (kg) |
6500 (2948) |
| Breakout Force at Pivot Pin (T6020-T6040, MSL), lbs (kg) |
5600 (2540) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (TS100A, TS110A, NSL), lbs (kg) |
3800 (1724) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (TS100A, TS110A, MSL), lbs (kg) |
4100 (1860) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (T6020-T6040, NSL), lbs (kg) |
4400 (1995) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (T6020-T6040, MSL), lbs (kg) |
4750 (2154) |
________________________________________________________________________________________
________________________________________________________________________________________
The

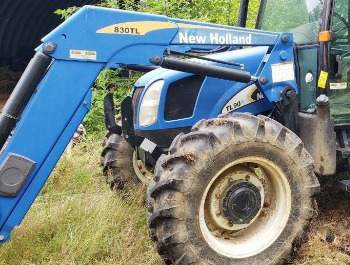

New Holland 830TL loader fits New Holland TS100A, TS110A, T6020, T6030, T6040
tractors. The loader has double acting bucket and lift hydraulic cylinders. The
New Holland 830TL NSL front-end loader has a max lift height of 156" (3960 mm)
at pin and bucket dump clearance of 118" (2995 mm). The lift capacity is 5350
lbs (2427 kg) to max height at pin, and boom breakout force is 6500 lbs (2948
kg).
