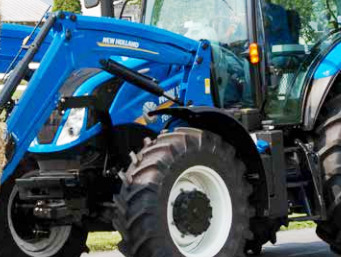

New Holland 835LA Loader

The New Holland 835LA mechanical self leveling loader is used for New Holland TS6.110, TS6.120, TS6.130, TS6.140 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The New Holland 835LA front end loader has a lifting capacity (at pivot pin) of 3395 lbs (1540 kg) to maximum height of 151.3" (3843 mm), and bucket's breakout force of 4409 lbs (2000 kg).

The bucket dump clearance is 113.7" (2890 mm) at maximum dump angle of 62 degrees. The New Holland 835LA loader is compatible with 83" (2100 mm) and 95" (2400 mm) standard material buckets with heaped capacities of 0.75 m3 (26.3 cu.ft) and 0.95 m3 (33.5 cu.ft).

Compatible Tractors
Tractor Models New Holland TS6.110, TS6.120, TS6.130, TS6.140
Front Tires 14.9x24, R1
Rear Tires 18.4x34, R1
Hydraulic System Flow, gpm (lpm) 22.0 (83.3)

Loader
Loader Model New Holland 835LA MSL
Leveling System Mechanical Self Leveling
Weight, lb (kg) 3060 (1390)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.3 (0.55)
Heaped Capacity, cu.ft (m3) 26.3 (0.75)
Weight, lb (kg) 485 (220)

95" Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.ft (m3) 27,8 (0,79)
Heaped Capacity, cu.ft (m3) 33,5 (0,95)
Weight, lb (kg) 644 (293)

Loader Dimensions
Maximum Lift Height at Pivot Pin, in (mm) 151,3 (3843)
Maximum Lift Height Under Level Bucket, in (mm) 139 (3530)
Clearance with Bucket Dumped, in (mm) 113,7 (2890)
Reach at Maximum Lift Height, in (mm) 38,2 (970)
Digging Depth, in (mm) 5,1 (130)
Maximum Dump Angle, degrees 62
Reach with Bucket on Ground, in (mm) 94,5 (2400)
Maximum Rollback Angle, degrees 45

Operating Data
Lift Capacity to Max Height at Bucket Pivot Point, lbs (kg) 3395 (1540)
Lift Capacity to Max Height at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) 3813 (1735)
Max Breakout Force at Bucket Pivot Point, lbs (kg) 4409 (2000)
Max Breakout Force at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) 3968 (1800)
Bucket Rollback Force at Max Height, lbs (kg) 4167 (1890)
Bucket Rollback Force at Ground Level, lbs (kg) 6680 (3030)
