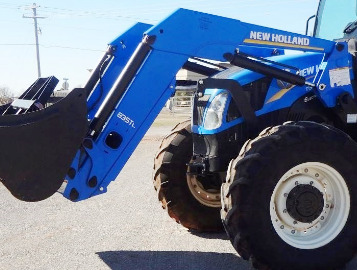

New Holland 835TL Loader

The New Holland 835TL NSL or MSL loader is compatible with New Holland TD5040, TD5050, TS6020, TS6030 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The New Holland 835TL MSL loader has a lift capacity (at 31.5" ahead of pivot) of 3674 lbs (1670 kg) to a maximum height of 145.2" (3690 mm) and breakout force (at 31.5" ahead of pivot) of 4092 lbs (1860 kg).

A full dump clearance with a 58-degree maximum dump angle is 108" (2740 mm). The New Holland 835TL loader is equipped with 73" (1850 mm) and 83" (2100 mm) standard material buckets with heaped capacities of 0.60 m3 (21.1 cu.ft) and 0.82 m3 (28.9 cu.ft), or 91" (2300 mm) high tip bucket with a rated capacity of 2.00 m3 (70 cu.ft).

Compatible Tractors
Tractor model New Holland TD5040, TD5050, TS6020, TS6030
Front tires 12.4x24
Rear tires 18.4x34
Pump capacity, gpm (lpm) 16.1 (60.0)

Loader
Loader model New Holland 835TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Lift cylinder diameter (NSL), in (mm) 3.15 (80)
Lift cylinder diameter (MSL), in (mm) 2.95 (75)
Lift cylinder stroke, in (mm) 20.87 (530)
Bucket cylinder diameter, in (mm) 3.15 (80)
Bucket cylinder stroke (NSL), in (mm) 22.44 (570)
Bucket cylinder stroke (MSL), in (mm) 18.11 (460)
Weight, lb (kg) 3454 (1570)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck capacity, cu.ft (m3) 17,0 (0,48)
Heaped capacity, cu.ft (m3) 21,1 (0,60)
Weight, lb (kg) 401 (182)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck capacity, cu.ft (m3) 24,3 (0,69)
Heaped capacity, cu.ft (m3) 28,9 (0,82)
Weight, lb (kg) 553 (251)

High Tipping Bucket
Width, in (mm) 91 (2300)
Struck capacity, cu.ft (m3) 58,3 (1,65)
Heaped capacity, cu.ft (m3) 70,7 (2,00)
Weight, lb (kg) 1060 (482)

Loader Dimensions
Maximum lift height to pin, in (mm) 145.2 (3690)
Clearance with bucket dumped (TD5040, TD5050), in (mm) 108 (2740)
Clearance with bucket dumped (TS6020, TS6030), in (mm) 134.4 (3415)
Digging depth, in (mm) 6.3 (160)
Reach at maximum lift height (TD5040, TD5050), in (mm) 30.7 (780)
Reach at maximum lift height (TS6020, TS6030), in (mm) 35.6 (905)
Reach with bucket on ground (TD5040, TD5050), in (mm) 93.8 (2380)
Reach with bucket on ground (TS6020, TS6030), in (mm) 93 (2360)
Maximum dump angle (TD5040, TD5050), degrees 58
Maximum dump angle (TS6020, TS6030), degrees 60
Maximum rollback angle (TD5040, TD5050), degrees 45
Maximum rollback angle (TS6020, TS6030), degrees 42

Operating Data
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (TD5040, TD5050, NSL), lb (kg) 3475 (1580)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (TD5040, TD5050, MSL), lb (kg) 3674 (1670)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (TS6020, TS6030, NSL), lb (kg) 2882 (1310)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (TS6020, TS6030, MSL), lb (kg) 3080 (1400)
Breakout force at 31.5" (0.8m) ahead of pivot (TD5040, TD5050, NSL), lb (kg) 3718 (1690)
Breakout force at 31.5" (0.8m) ahead of pivot (TD5040, TD5050, MSL), lb (kg) 4092 (1860)
Breakout force at 31.5" (0.8m) ahead of pivot (TS6020, TS6030, NSL), lb (kg) 3476 (1580)
Breakout force at 31.5" (0.8m) ahead of pivot (TS6020, TS6030, MSL), lb (kg) 3762 (1710)
