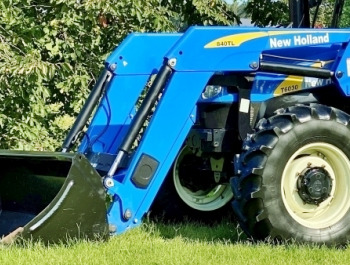

New Holland 840TL Loader
The
New Holland 840TL loader is available for New Holland TS115A, TS125A, TS135A,
T6050-T6080 tractors. The New Holland 840TL loader has double acting hydraulic
lifting and bucket cylinders. The NSL loader’s maximum lift height is 154" (3910
mm) at pin and clearance with bucket dumped is 116" (2945 mm). The lifting
capacity is 5350 lbs (2427 kg) at maximum height (bucket pin), and breakout
force (bucket on ground) is 6500 lbs (2948 kg).
The raising time is 5.4 sec from ground line to max height, and bucket
dumping time is 4.1 sec. Compatible buckets for the New Holland 840TL
front-end loader: 83" (2100 mm) and 95" (2400 mm) standard material
buckets with heaped capacities of 0.75 m3 (0.89 cu.yd) and 0.81 m3 (1.07
cu.yd), or 73" (1850 mm) and 83" (2100 mm) high volume buckets with
heaped capacities of 0.71 m3 (0.94 cu.yd) and 0.81 m3 (1.07 cu.yd).
| Tractor Models |
New Holland TS115A, TS125A, TS135A, T6050, T6060, T6070, T6080 |
| Front Tires |
14.9R24 |
| Rear Tires |
18.4R34 |
| Hydraulic System Flow, gpm (lpm) |
26.5 (100.3) |
| Loader Model |
New Holland 840TL NSL/MSL |
| Leveling System |
Non Self Leveling / Mechanical Self Leveling |
| Weight w/o Bucket (NSL), lb (kg) |
1230 (560) |
| Weight w/o Bucket (MSL), lb (kg) |
1365 (620) |
| 83" Standard Material Bucket |
| Width, in (mm) |
83 (2100) |
| Struck Capacity, cu.yd (m3) |
0.72 (0.55) |
| Heaped Capacity, cu.yd (m3) |
0.89 (0.75) |
| 95" Standard Material Bucket |
| Width, in (mm) |
95 (2400) |
| Struck Capacity, cu.yd (m3) |
1.03 (0.78) |
| Heaped Capacity, cu.yd (m3) |
1.24 (0.94) |
| Width, in (mm) |
73 (1850) |
| Struck Capacity, cu.yd (m3) |
0.78 (0.59) |
| Heaped Capacity, cu.yd (m3) |
0.94 (0.71) |
| Width, in (mm) |
83 (2100) |
| Struck Capacity, cu.yd (m3) |
0.90 (0.76) |
| Heaped Capacity, cu.yd (m3) |
1.07 (0.81) |
| Maximum Lift Height to Pivot Pin, in (mm) |
154 (3910) |
| Maximum Lift Height under Level Bucket, in (mm) |
142 (3605) |
| Clearance with Bucket Dumped, in (mm) |
116 (2945) |
| Reach at Maximum Lift Height, in (mm) |
31 (785) |
| Digging Depth, in (mm) |
8 (203) |
| Maximum Dump Angle, degrees |
57 |
| Reach with Bucket on Ground, in (mm) |
100 (2540) |
| Maximum Rollback Angle, degrees |
45 |
| Lift Capacity to Full Height at Pivot Pin (NSL), lbs (kg) |
5350 (2427) |
| Lift Capacity to Full Height at Pivot Pin (MSL), lbs (kg) |
4650 (2109) |
| Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (NSL), lbs (kg) |
3700 (1678) |
| Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (MSL), lbs (kg) |
3950 (1792) |
| Lift Capacity to 59" (1.5m) Height at Pivot Pin (TS115A-TS135A, NSL), lbs (kg) |
6050 (2744) |
| Lift Capacity to 59" (1.5m) Height at Pivot Pin (T6050-T6080, NSL), lbs (kg) |
4910 (2227) |
| Lift Capacity to 59" (1.5m) Height at Pivot Pin (MSL), lbs (kg) |
5250 (2381) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (NSL), lbs (kg) |
4200 (1905) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (MSL), lbs (kg) |
4400 (1996) |
| Breakout Force at Pivot Pin (TS115A-TS135A, NSL), lbs (kg) |
6500 (2948) |
| Breakout Force at Pivot Pin (T6050-T6080, NSL), lbs (kg) |
5230 (2372) |
| Breakout Force at Pivot Pin (MSL), lbs (kg) |
5600 (2540) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (TS115A-TS135A, NSL), lbs (kg) |
4400 (1996) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (T6050-T6080, NSL), lbs (kg) |
4440 (2015) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (MSL), lbs (kg) |
4750 (2155) |
| Raising Time (NSL), seconds |
5.4 |
| Raising Time (MSL), seconds |
3.1 |
| Lowering Time (NSL), seconds |
4.2 |
| Lowering Time (MSL), seconds |
2.3 |
| Bucket Dump Time (NSL), seconds |
4.1 |
| Bucket Dump Time (MSL), seconds |
2.1 |
| Bucket Rollback Time (NSL), seconds |
3.1 |
| Bucket Rollback Time (MSL), seconds |
2.1 |
