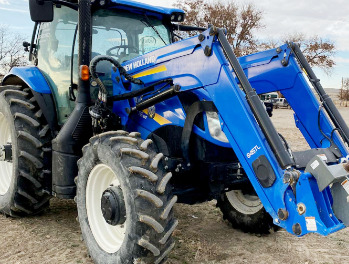

New Holland 845TL Loader

The New Holland 845TL front end loader is designed for New Holland T6020-T6080 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The New Holland 845TL mechanical self leveling front end loader has a lift capacity (31.5" ahead of bucket pin) of 4686 lbs (2130 kg) to a max height of 156" (3950 mm) and breakout force (31.5" ahead of bucket pin) of 5346 lbs (2430 kg).

The clearance with a bucket dumped is 118.8" (3015 mm) at a maximum dump angle of 57 degrees. The New Holland 845TL loader is compatible with the following buckets: a 73" (1850 mm) standard material bucket with a heaped capacity of 0.72 m3 (25.4 cu.ft), 83" (2100 mm) heavy-duty high volume bucket with a rated capacity of 1.5 m3 (52.9 cu.ft), and 95" (2400 mm) heavy-duty material bucket with a heaped capacity of 0.95 m3 (33.5 cu.ft).

Compatible Tractors
Tractor model New Holland T6020, T6030, T6040, T6050, T6060, T6070, T6080 (SuperSteer models)
Front tires 14.9R24
Rear tires 18.4R34
Pump capacity, gpm (lpm) 26.5 (100.3)

Loader
Loader model New Holland 845TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Lift cylinder diameter (NSL), in (mm) 3.34 (85)
Lift cylinder diameter (MSL), in (mm) 3.15 (80)
Lift cylinder stroke, in (mm) 20.87 (530)
Bucket cylinder diameter, in (mm) 3.15 (80)
Bucket cylinder stroke (NSL), in (mm) 22.44 (570)
Bucket cylinder stroke (MSL), in (mm) 18.11 (460)
Weight, lb (kg) 3654 (1660)

Standard Material Bucket
Width, in (mm) 73 (1850)
Struck capacity, cu.ft (m3) 21,33 (0,60)
Heaped capacity, cu.ft (m3) 25,38 (0,72)
Weight, lb (kg) 452 (205)

Heavy Duty Material Bucket
Width, in (mm) 95 (2400)
Struck capacity, cu.ft (m3) 27,8 (0,79)
Heaped capacity, cu.ft (m3) 33,48 (0,95)
Weight, lb (kg) 816 (371)

Heavy Duty High Volume Bucket
Width, in (mm) 83 (2100)
Heaped capacity, cu.ft (m3) 52,92 (1,50)
Weight, lb (kg) 932 (424)

Loader Dimensions
Maximum lift height to pin, in (mm) 156 (3950)
Clearance with bucket dumped (T6020-T6040), in (mm) 117.6 (2985)
Clearance with bucket dumped (T6050-T6080), in (mm) 118.8 (3015)
Digging depth, in (mm) 7.1 (180)
Reach at maximum lift height, in (mm) 39.8 (1010)
Reach with bucket on ground (T6020-T6040), in (mm) 102 (2590)
Reach with bucket on ground (T6050-T6080), in (mm) 100.9 (2560)
Maximum dump angle (T6020-T6040), degrees 56
Maximum dump angle (T6050-T6080), degrees 57
Maximum rollback angle, degrees 45

Operating Data
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (NSL), lb (kg) 3938 (1790)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (MSL), lb (kg) 4686 (2130)
Breakout force at 31.5" (0.8m) ahead of pivot (NSL), lb (kg) 4136 (1880)
Breakout force at 31.5" (0.8m) ahead of pivot (MSL), lb (kg) 5346 (2430)
