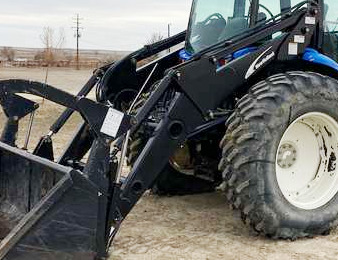

New Holland 84LB Front End Loader

The New Holland 84LB loader is used for New Holland TV6070, TV145 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The New Holland 84LB front end loader has a lifting capacity (at pivot pin) of 6150 lbs (2796 kg) to maximum height of 157.8" (4008 mm), and bucket's breakout force of 8000 lbs (3629 kg). The bucket dump clearance is 123.8" (3144 mm) at maximum dump angle of 60 degrees.

The New Holland 84LB loader is compatible with a 95" (2400 mm) standard material bucket with a heaped capacity of 0.94 m3 (1.24 cu.yd), 95" (2400 mm) heavy-duty material bucket with a heaped capacity of 0.94 m3 (1.24 cu.yd), or 102" (2580 mm) heavy-duty material bucket with a heaped capacity of 1.03 m3 (1.35 cu.yd).

Compatible Tractors
Tractor Models New Holland TV6070, TV145
Front Tires 480/85-R34
Rear Tires 480/85-R34
Hydraulic System Flow, gpm (lpm) 29.5 (111)

95" Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

95" Heavy-Duty Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

102" Heavy-Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.yd (m3) 1.11 (0.84)
Heaped Capacity, cu.yd (m3) 1.35 (1.03)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 157.8 (4008)
Clearance with Bucket Dumped, in (mm) 123.8 (3144)
Clearance with Level Bucket, in (mm) 148.8 (3780)
Reach at Maximum Lift Height, in (mm) 61.7 (1567)
Digging Depth, in (mm) 4.2 (106.6)
Maximum Dump Angle, degrees 60
Reach with Bucket on Ground, in (mm) 122 (3105)
Maximum Rollback Angle, degrees 20
Rollback Angle at Full Height, degrees 62
Maximum Bucket Height (Standard Bucket), in (mm) 190.1 (4830)

Operating Data
Lift Capacity to Max Height at Pivot Point, lbs (kg) 6150 (2796)
Lift Capacity to Max Height at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) 4400 (2000)
Breakout Force at Pivot Point, lbs (kg) 8000 (3629)
Breakout Force at 31.5" (0.8m) from Pivot Point, lbs (kg) 5950 (2699)
Bucket Rollback Force at Maximum Height, lbs (kg) 6100 (2767)
Bucket Rollback Force at Ground Level, lbs (kg) 11400 (5171)
