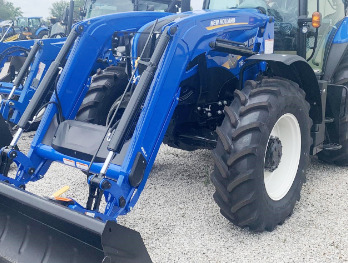

New Holland 850LA Loader

The New Holland 850LA non self leveling loader fits New Holland T6.150, T6.165, T6.175, T6.180 tractors. The loader has double acting bucket and lift hydraulic cylinders. The New Holland 850LA front-end loader has a max lift height of 162" (4120 mm) at pin and bucket dump clearance of 124" (3150 mm).

The lift capacity is 4630 lbs (2100 kg) to max height at pin, and boom breakout force is 6526 lbs (2960 kg). The New Holland 850LA loader is equipped with the following buckets: 95" (2400 mm) standard or heavy-duty material buckets with heaped capacity of 0.94 m3 (1.24 cu.yd).

Compatible Tractors
Tractor Models New Holland T6.150, T6.165, T6.175, T6.180
Front Tires 380/85-R28
Rear Tires 460/85-R38
Hydraulic System Flow, gpm (lpm) 18.5 (70.0)

Loader
Loader Model New Holland 850LA NSL
Leveling System Non Self Leveling
Weight, lb (kg) 3060 (1390)

Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

Heavy Duty Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 162 (4120)
Maximum lift height under level bucket, in (mm) 150 (3810)
Clearance with bucket dumped 45 deg, lowest point of cutting edge, in (mm) 124 (3150)
Reach at maximum lift height, bucket dump at 45 deg, in (mm) 28 (710)
Reach with bucket on ground level, in (mm) 99 (2520)
Maximum dump angle, loader fully raised, degrees 55
Maximum rollback angle, bucket at ground, degrees 47
Digging depth, in (mm) 3.9 (100)

Operating Data
Lift capacity to maximum height at bucket pivot pin, lbs (kg) 4630 (2100)
Lift capacity to max height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 2932 (1330)
Lift capacity to 59" (1.5m) height at bucket pivot pin, lbs (kg) 5578 (2530)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 4233 (1920)
Boom breakout force at bucket pivot pin, lbs (kg) 6526 (2960)
Boom breakout force at 31.5" (0.8m) forward of bucket pivot pin at ground, lbs (kg) 4674 (2120)
Bucket rollback force at max height, lbs (kg) 4387 (1990)
Bucket rollback force at ground level, lbs (kg) 7738 (3510)
