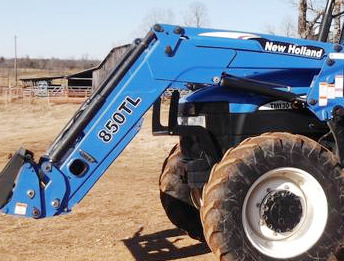

New Holland 850TL Loader

The New Holland 850TL loader is used for New Holland TM120-TM155, T7030, T7040 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The New Holland 850TL MSL front end loader has a lifting capacity (at pivot pin) of 5350 lbs (2427 kg) to maximum height of 169" (4290 mm), and bucket's breakout force of 6300 lbs (2858 kg).

The bucket dump clearance is 131" (3325 mm) at maximum dump angle of 55 degrees. The rated cycle times are 4.1 seconds lifting to maximum height, and 2.5 seconds to full bucket dump. The New Holland 850TL loader is compatible with 83" (2100 mm), 95" (2400 mm), and 102" (2580 mm) standard material buckets with heaped capacities of 0.75 m3 (0.89 cu.yd), 0.94 m3 (1.24 cu.yd), and 1.03 m3 (1.35 cu.yd).

Compatible Tractors
Tractor Models New Holland TM120, TM125, TM130, TM135, TM140, TM145, TM150, TM155, T7030, T7040
Front Tires 14.9R24
Rear Tires 18.4R34
Hydraulic System Flow, gpm (lpm) 26.5 (100.3)

Loader
Loader Model New Holland 850TL NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight w/o Bucket (NSL), lb (kg) 1385 (630)
Weight w/o Bucket (MSL), lb (kg) 1560 (710)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.yd (m3) 0.72 (0.55)
Heaped Capacity, cu.yd (m3) 0.89 (0.75)

95" Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

102" Standard Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.yd (m3) 1.11 (0.84)
Heaped Capacity, cu.yd (m3) 1.35 (1.03)

Loader Dimensions
Maximum Lift Height to Pivot Pin (TM120-TM155), in (mm) 167 (4240)
Maximum Lift Height to Pivot Pin (T7030-T7040), in (mm) 169 (4290)
Maximum Lift Height under Level Bucket (TM120-TM155), in (mm) 155 (3935)
Maximum Lift Height under Level Bucket (T7030-T7040), in (mm) 157 (3985)
Clearance with Bucket Dumped (TM120-TM155), in (mm) 129 (3275)
Clearance with Bucket Dumped (T7030-T7040), in (mm) 131 (3325)
Reach at Maximum Lift Height (TM120-TM155), in (mm) 31 (785)
Reach at Maximum Lift Height (T7030-T7040), in (mm) 29 (435)
Digging Depth (TM120-TM155), in (mm) 5 (127)
Digging Depth (T7030-T7040), in (mm) 4 (101)
Maximum Dump Angle (TM120-TM155), degrees 56
Maximum Dump Angle (T7030-T7040), degrees 55
Reach with Bucket on Ground (TM120-TM155), in (mm) 108 (2740)
Reach with Bucket on Ground (T7030-T7040), in (mm) 104 (2640)
Maximum Rollback Angle (TM120-TM155), degrees 43
Maximum Rollback Angle (T7030-T7040), degrees 41

Operating Data
Lift Capacity to Full Height at Pivot Pin (NSL), lbs (kg) 6050 (2744)
Lift Capacity to Full Height at Pivot Pin (MSL), lbs (kg) 5350 (2427)
Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (NSL), lbs (kg) 4300 (1950)
Lift Capacity to Full Height at 31.5" (0.8m) from Pivot Pin (MSL), lbs (kg) 4650 (2109)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (NSL), lbs (kg) 6750 (3062)
Lift Capacity to 59" (1.5m) Height at Pivot Pin (MSL), lbs (kg) 5950 (2699)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (NSL), lbs (kg) 4750 (2155)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) Forward of Pivot Pin (MSL), lbs (kg) 5100 (2313)
Breakout Force at Pivot Pin (NSL), lbs (kg) 7200 (3266)
Breakout Force at Pivot Pin (MSL), lbs (kg) 6300 (2858)
Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (NSL), lbs (kg) 5000 (2268)
Breakout Force at 31.5" (0.8m) Forward of Pivot Pin (MSL), lbs (kg) 5350 (2427)

Cycle Times
Raising Time (NSL), seconds 4.6
Raising Time (MSL), seconds 4.1
Lowering Time (NSL), seconds 3.7
Lowering Time (MSL), seconds 3.2
Bucket Dump Time (NSL), seconds 3.2
Bucket Dump Time (MSL), seconds 2.5
Bucket Rollback Time, seconds 2.5
