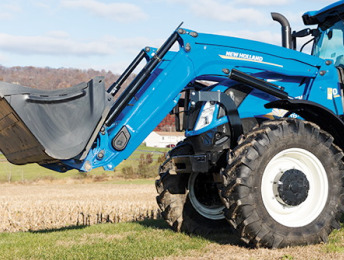

New Holland 855LA Loader

The New Holland 855LA mechanical self leveling loader is compatible with New Holland T6.150, T6.165, T6.175, T6.180 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The New Holland 855LA loader has a lift capacity (at pivot pin) of 4542 lbs (2060 kg) to a maximum height of 162" (4120 mm) and breakout force of 6437 lbs (2920 kg) with bucket on ground.

A full dump clearance with a 56-degree maximum dump angle is 124" (3150 mm). The New Holland 855LA loader is equipped with a 95" (2400 mm) standard material buckets with a heaped capacity of 0.94 m3 (1.24 cu.yd), or 95" (2400 mm) heavy-duty material buckets with a heaped capacity of 0.94 m3 (1.24 cu.yd).

Compatible Tractors
Tractor Models New Holland T6.150, T6.165, T6.175, T6.180
Front Tires 380/85-R28
Rear Tires 460/85-R38
Hydraulic System Flow, gpm (lpm) 18.5 (70.0)

Loader
Loader Model New Holland 855LA MSL
Leveling System Mechanical Self Leveling
Weight, lb (kg) 3060 (1390)

Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

Heavy Duty Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 162 (4120)
Maximum lift height under level bucket, in (mm) 150 (3810)
Clearance with bucket dumped, in (mm) 124 (3150)
Reach at maximum lift height, in (mm) 28 (710)
Reach with bucket on ground level, in (mm) 99 (2520)
Maximum dump angle, loader fully raised, degrees 56
Maximum rollback angle, bucket at ground, degrees 47
Digging depth, in (mm) 3.9 (100)

Operating Data
Lift Capacity to maximum height at bucket pivot pin, lbs (kg) 4542 (2060)
Lift Capacity to max height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 5203 (2360)
Lift Capacity to 59" (1.5m) height at bucket pivot pin, lbs (kg) 5490 (2490)
Lift Capacity to 59" (1.5m) height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 5512 (2500)
Boom Breakout force at bucket pivot pin, lbs (kg) 6437 (2920)
Boom Breakout force at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 5975 (2710)
Bucket rollback force at max height, lbs (kg) 5357 (2430)
Bucket rollback force at ground level, lbs (kg) 8841 (4010)
