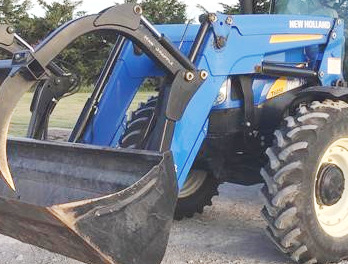

New Holland 855TL Loader

The New Holland 855TL loader is available for New Holland T7.170, T7.185, T7.210, T6050-T6080 tractors. The New Holland 855TL loader has double acting hydraulic lifting and bucket cylinders. The NSL loader’s maximum lift height is 166.8" (4220 mm) at pin and clearance with bucket dumped is 128.4" (3250 mm). The lifting capacity is 4567 lbs (2076 kg) at maximum height (31.5" ahead of pivot pin), and breakout force (31.5" ahead of pivot pin) is 4576 lbs (2080 kg).

Compatible buckets for the New Holland 855TL front-end loader: a 73" (1850 mm) heavy-duty material bucket with a heaped capacity of 0.72 m3 (25.4 cu.ft), 95" (2400 mm) standard material bucket with a heaped capacity of 0.95 m3 (33.2 cu.ft), and 83" (2100 mm) grading bucket with a heaped capacity of 0.82 m3 (28.9 cu.ft).

Compatible Tractors
Tractor model New Holland T7.170, T7.185, T7.210, T6050, T6060, T6070, T6080
Front tires 14.9-R28
Rear tires 18.4-R38
Pump capacity, gpm (lpm) 33.0 (125.0)

Loader
Loader model New Holland 855TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Lift cylinder diameter (NSL), in (mm) 3.54 (90)
Lift cylinder diameter (MSL), in (mm) 3.34 (85)
Lift cylinder stroke, in (mm) 22.44 (570)
Bucket cylinder diameter, in (mm) 3.34 (85)
Bucket cylinder stroke (NSL), in (mm) 22.44 (570)
Bucket cylinder stroke (MSL), in (mm) 18.11 (460)
Weight, lb (kg) 4254 (1935)

Standard Material Bucket
Width, in (mm) 95 (2400)
Struck capacity, cu.ft (m3) 27,81 (0,79)
Heaped capacity, cu.ft (m3) 33,5 (0,95)
Weight, lb (kg) 644 (293)

Heavy Duty Material Bucket
Width, in (mm) 73 (1850)
Struck capacity, cu.ft (m3) 21,06 (0,60)
Heaped capacity, cu.ft (m3) 25,4 (0,72)
Weight, lb (kg) 500 (227)

High Volume Bucket
Width, in (mm) 87 (2200)
Struck capacity, cu.ft (m3) 37,5 (1,06)
Heaped capacity, cu.ft (m3) 45,1 (1,28)
Weight, lb (kg) 650 (295)

Grapple Bucket
Width, in (mm) 83 (2100)
Struck capacity, cu.ft (m3) 24,3 (0,69)
Heaped capacity, cu.ft (m3) 28,89 (0,82)
Weight, lb (kg) 1367 (621)
Floor Tines 5

Loader Dimensions
Maximum lift height (T7.170-T7.210), in (mm) 166,8 (4220)
Maximum lift height (T6050-T6080), in (mm) 165,6 (4205)
Clearance with bucket dumped, in (mm) 128,4 (3250)
Digging depth (T7.170-T7.210), in (mm) 6,3 (160)
Digging depth (T6050-T6080), in (mm) 6,7 (170)
Reach at maximum height (T7.170-T7.210), in (mm) 31,7 (805)
Reach at maximum height (T6050-T6080), in (mm) 35,1 (890)
Reach with bucket on ground (T7.170-T7.210), in (mm) 108,4 (2745)
Reach with bucket on ground (T6050-T6080), in (mm) 109,1 (2770)
Bucket dump angle, degrees 52
Bucket rollback angle (T7.170-T7.210), degrees 44
Bucket rollback angle (T6050-T6080), degrees 45

Operating Data
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (T7.170-T7.210, NSL), lb (kg) 4567 (2076)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (T7.170-T7.210, MSL), lb (kg) 5522 (2510)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (T6050-T6080, NSL), lb (kg) 4752 (2160)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (T6050-T6080, MSL), lb (kg) 5720 (2600)
Breakout force at 31.5" (0.8m) ahead of pivot (T7.170-T7.210, NSL), lb (kg) 4576 (2080)
Breakout force at 31.5" (0.8m) ahead of pivot (T7.170-T7.210, MSL), lb (kg) 5742 (2610)
Breakout force at 31.5" (0.8m) ahead of pivot (T6050-T6080, NSL), lb (kg) 4730 (2150)
Breakout force at 31.5" (0.8m) ahead of pivot (T6050-T6080, MSL), lb (kg) 5962 (2710)
