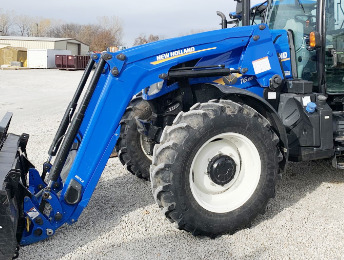

New Holland 857LA Loader

The New Holland 857LA front end loader is designed for New Holland T6.145, T6.155, T6.165, T6.175, T6.180 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The New Holland 857LA mechanical self leveling front end loader has a lift capacity (at bucket pin) of 3726 lbs (1690 kg) to a max height of 168 in (4260 mm) and breakout force (bucket on ground) of 5313 lbs (2410 kg).

The clearance with a bucket dumped is 130 in (3290 mm) at a maximum dump angle of 53 degrees. The New Holland 857LA loader is compatible with the following buckets: a 95" (2400 mm) standard material bucket with a heaped capacity of 0.95 m3 (33.5 cu.ft), or 102" (2580 mm) heavy-duty material bucket with a heaped capacity of 1.03 m3 (36.1 cu.ft).

Compatible Tractors
Tractor Models New Holland T6.145, T6.155, T6.165, T6.175, T6.180 SuperSteer
Front Tires 380/85-R28
Rear Tires 460/85-R38
Hydraulic System Flow, gpm (lpm) 18.5 (70.0)

Loader
Loader Model New Holland 857LA MSL
Leveling System Mechanical Self Leveling
Weight, lb (kg) 3060 (1390)

Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.ft (m3) 27,81 (0,79)
Heaped Capacity, cu.ft (m3) 33,5 (0,95)
Weight, lb (kg) 644 (293)

Heavy Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 168 (4260)
Maximum lift height under level bucket, in (mm) 156 (3950)
Clearance with bucket dumped, in (mm) 130 (3290)
Reach at maximum lift height, bucket dump at 45 deg, in (mm) 21 (530)
Reach with bucket on ground level, in (mm) 98 (2490)
Maximum dump angle, loader fully raised, degrees 53
Maximum rollback angle, bucket at ground, degrees 48
Digging depth, in (mm) 4.3 (110)

Operating Data
Lift capacity to maximum height at bucket pivot pin, lbs (kg) 3726 (1690)
Lift capacity to max height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 4365 (1980)
Lift capacity to 59" (1.5m) height at bucket pivot pin, lbs (kg) 4519 (2050)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 4564 (2070)
Boom Breakout force at pivot pin, bucket at ground, lbs (kg) 5313 (2410)
Boom Breakout force at 31.5" (0.8m) forward of bucket pivot pin at ground, lbs (kg) 4894 (2220)
Bucket rollback force at max height, lbs (kg) 4255 (1930)
Bucket rollback force at ground level, lbs (kg) 7738 (3510)
