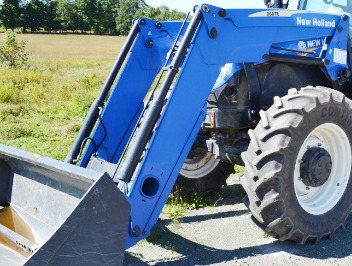

New Holland 860TL Loader
The
New Holland 860TL loader fits New Holland TM165, TM175, TM190, T7030, T7040,
T7050, T7060 tractors. The loader has double acting bucket and lift hydraulic
cylinders. The New Holland 860TL front-end loader has a max lift height of 178"
(4520 mm) at pin and bucket dump clearance of 140" (3555 mm). The lift capacity
is 5450 lbs (2472 kg) to max height at pin, and boom breakout force is 6650 lbs
(3016 kg).
The rated cycle times are 4.6 seconds raising to maximum height, and 2.9
seconds maximum bucket dumping. The New Holland 860TL loader is equipped
with the following buckets: 95" (2400 mm) and 102" (2580 mm) heavy-duty
material buckets with heaped capacities of 0.94 m3 (1.24 cu.yd) and 1.03
m3 (1.35 cu.yd), and 87" (2200 mm) high volume bucket with a rated
capacity of 1.23 m3 (1.67 cu.yd).
| Tractor Models |
New Holland TM165, TM175, TM190, T7030, T7040, T7050, T7060 |
| Front Tires |
14.9R24 |
| Rear Tires |
18.4R34 |
| Hydraulic System Flow, gpm (lpm) |
26.5 (100.3) |
| Loader Model |
New Holland 860TL MSL |
| Leveling System |
Mechanical Self Leveling |
| Weight, lb (kg) |
1675 (760) |
| 95" Heavy Duty Material Bucket |
| Width, in (mm) |
95 (2400) |
| Struck Capacity, cu.yd (m3) |
1.03 (0.78) |
| Heaped Capacity, cu.yd (m3) |
1.24 (0.94) |
| 102" Heavy Duty Material Bucket |
| Width, in (mm) |
102 (2580) |
| Struck Capacity, cu.yd (m3) |
1.11 (0.84) |
| Heaped Capacity, cu.yd (m3) |
1.35 (1.03) |
| Width, in (mm) |
87 (2200) |
| Struck Capacity, cu.yd (m3) |
1.39 (1.06) |
| Heaped Capacity, cu.yd (m3) |
1.67 (1.23) |
| Maximum Lift Height to Pivot Pin (T7030-T7060), in (mm) |
178 (4520) |
| Maximum Lift Height to Pivot Pin (TM165-TM190), in (mm) |
176 (4470) |
| Maximum Lift Height Under Level Bucket (T7030-T7060), in (mm) |
166 (4215) |
| Maximum Lift Height Under Level Bucket (TM165-TM190), in (mm) |
164 (4165) |
| Clearance with Bucket Dumped (T7030-T7060), in (mm) |
140 (3555) |
| Clearance with Bucket Dumped (TM165-TM190), in (mm) |
138 (3505) |
| Reach at Maximum Lift Height (T7030-T7060), in (mm) |
36 (915) |
| Reach at Maximum Lift Height (TM165-TM190), in (mm) |
31 (785) |
| Digging Depth (T7030-T7060), in (mm) |
6 (152) |
| Digging Depth (TM165-TM190), in (mm) |
7 (178) |
| Maximum Dump Angle (T7030-T7060), degrees |
55 |
| Maximum Dump Angle (TM165-TM190), degrees |
45 |
| Reach with Bucket on Ground (T7030-T7060), in (mm) |
113 (2870) |
| Reach with Bucket on Ground (TM165-TM190), in (mm) |
115 (2920) |
| Maximum Rollback Angle (T7030-T7060), degrees |
43 |
| Maximum Rollback Angle (TM165-TM190), degrees |
45 |
| Lift Capacity to Max Height at Pivot Point, lbs (kg) |
5450 (2472) |
| Lift Capacity to Max Height at 31.5" (0.8m) from Pivot Point, lbs (kg) |
4900 (2223) |
| Lift Capacity to 59" (1.5m) Height at Pivot Point, lbs (kg) |
6300 (2857) |
| Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) from Pivot Point, lbs (kg) |
5450 (2472) |
| Breakout Force at Pivot Point, lbs (kg) |
6650 (3016) |
| Breakout Force at 31.5" (0.8m) from Pivot Point, lbs (kg) |
5800 (2631) |
| Raising Time, seconds |
4.6 |
| Lowering Time, seconds |
3.7 |
| Bucket Dump Time, seconds |
2.9 |
| Bucket Rollback Time, seconds |
2.9 |
