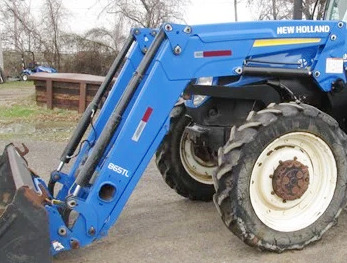

New Holland 865TL Loader
The
New Holland 865TL mechanical self leveling loader is used for New Holland
T7.235, T7.245, T7.250, T7.260, T7.270 tractors. The loader hydraulic system
includes double-acting bucket and lift hydraulic cylinders. The New Holland
865TL front end loader has a lifting capacity (at pivot pin) of 5490 lbs (2495
kg) to maximum height of 178.8" (4525 mm), and bucket's breakout force of 6250
lbs (2840 kg).
The bucket dump clearance is 140.4" (3552 mm) at maximum dump angle of
53 degrees. The New Holland 865TL loader is compatible with 83" (2100
mm) and 102" (2600 mm) heavy-duty material buckets with heaped
capacities of 0.82 m3 (28.7 cu.ft) and 1.03 m3 (36.1 cu.ft), or 95"
(2400 mm) heavy-duty high volume bucket with a heaped capacity of 1.71
m3 (59.9 cu.ft).
| Tractor model |
New Holland T7.235, T7.245, T7.250, T7.260, T7.270 |
| Front tires |
16.9 R30 |
| Rear tires |
20.8 R42 |
| Pump capacity, gpm (lpm) |
33.0 (125.0) |
| Loader model |
New Holland 865TL MSL |
| Leveling configuration |
Mechanical Self Leveling |
| Lift cylinder diameter, in (mm) |
3.54 (90) |
| Lift cylinder stroke, in (mm) |
22.44 (570) |
| Bucket cylinder diameter, in (mm) |
3.93 (100) |
| Bucket cylinder stroke, in (mm) |
18.11 (460) |
| Weight, lb (kg) |
3791 (1723) |
| 83" Heavy Duty Material Bucket |
| Width, in (mm) |
83 (2100) |
| Struck capacity, cu.ft (m3) |
24,3 (0,69) |
| Heaped capacity, cu.ft (m3) |
28,9 (0,82) |
| Weight, lb (kg) |
697 (317) |
| 102" Heavy Duty Material Bucket |
| Width, in (mm) |
102 (2580) |
| Struck capacity, cu.ft (m3) |
29,9 (0,85) |
| Heaped capacity, cu.ft (m3) |
36,5 (1,03) |
| Weight, lb (kg) |
875 (398) |
| Heavy Duty High Volume Bucket |
| Width, in (mm) |
95 (2400) |
| Struck capacity, cu.ft (m3) |
47,3 (1,35) |
| Heaped capacity, cu.ft (m3) |
59,9 (1,70) |
| Weight, lb (kg) |
913 (415) |
| Width, in (mm) |
95 (2400) |
| Struck capacity, cu.ft (m3) |
27,8 (0,79) |
| Heaped capacity, cu.ft (m3) |
33,5 (0,95) |
| Weight, lb (kg) |
1444 (656) |
| Maximum lift height, in (mm) |
178,8 (4525) |
| Clearance at full height, bucket dumped, in (mm) |
140,4 (3552) |
| Digging depth, in (mm) |
6,3 (160) |
| Reach at maximum height, in (mm) |
32,3 (817) |
| Reach at ground, bucket level, in (mm) |
113,1 (2860) |
| Bucket dump angle, degrees |
53 |
| Bucket rollback angle, degrees |
43 |
| Lift capacity to full height at pivot, lb (kg) |
5490 (2495) |
| Lift capacity to full height at 31.5" (0.8m) ahead of pivot, lb (kg) |
4774 (2170) |
| Breakout force at pivot, lb (kg) |
6250 (2840) |
| Breakout force at 31.5" (0.8m) ahead of pivot, lb (kg) |
5434 (2470) |
