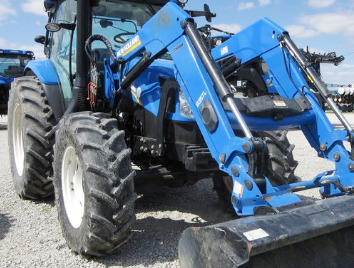

New Holland 870TL Loader

The New Holland 870TL loader is compatible with New Holland T8030, T8040, T8050, TG215, TG230, TG255, TG285 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The New Holland 870TL loader has a lift capacity (at pivot pin) of 5950 lbs (2699 kg) to a maximum height of 187" (4750 mm) and breakout force of 8150 lbs (3697 kg) with bucket on ground.

A full dump clearance with a 57-degree maximum dump angle is 150" (3810 mm). The rated cycle times are 3.4 seconds raising to maximum height, and 1.9 seconds full bucket dumping. The New Holland 870TL loader is equipped with a 95" (2400 mm) standard material bucket with a heaped capacity of 0.94 m3 (1.24 cu.yd), and 102" (2580 mm) heavy-duty material bucket with a heaped capacity of 1.03 m3 (1.35 cu.yd).

Compatible Tractors
Tractor Models New Holland T8030, T8040, T8050, TG215, TG230, TG255, TG285
Front Tires 16.9R30
Rear Tires 20.8R42
Hydraulic System Flow, gpm (lpm) 38.6 (146.0)

Loader
Loader Model New Holland 870TL MSL
Leveling System Mechanical Self Leveling
Weight (w/o Bucket), lb (kg) 1780 (807)

Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.yd (m3) 1.03 (0.78)
Heaped Capacity, cu.yd (m3) 1.24 (0.94)

Heavy Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.yd (m3) 1.11 (0.84)
Heaped Capacity, cu.yd (m3) 1.35 (1.03)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 187 (4750)
Clearance with Bucket Dumped, in (mm) 150 (3810)
Reach at Maximum Lift Height, in (mm) 35 (889)
Digging Depth, in (mm) 6 (152)
Maximum Dump Angle, degrees 57
Reach with Bucket on Ground, in (mm) 109 (2769)
Maximum Rollback Angle, degrees 38

Operating Data
Lift Capacity to Max Height at Pivot Point, lbs (kg) 5950 (2699)
Lift Capacity to Max Height at 31.5" (0.8m) from Pivot Point, lbs (kg) 5250 (2381)
Lift Capacity to 59" (1.5m) Height at Pivot Point, lbs (kg) 7550 (3425)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) from Pivot Point, lbs (kg) 6500 (2948)
Breakout Force at Pivot Point, lbs (kg) 8150 (3697)
Breakout Force at 31.5" (0.8m) from Pivot Point, lbs (kg) 7000 (3175)

Cycle Times
Raising Time, seconds 3.4
Lowering Time, seconds 2.7
Bucket Dump Time, seconds 1.9
Bucket Rollback Time, seconds 1.8
