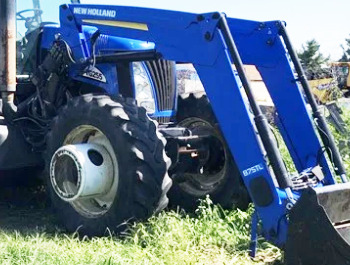

New Holland 875TL Loader

The New Holland 875TL MSL loader is available for New Holland T7040, T7050, T7060, T7070, T8020, T8030, T8040, T8050 tractors. The New Holland 875TL loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 194.4" (4920 mm) at pin and clearance with bucket dumped is 157.2" (3975 mm).

The lifting capacity is 6248 lbs (2840 kg) at maximum height (31.5" ahead of bucket pin), and breakout force (31.5" ahead of bucket pin) is 7150 lbs (3250 kg). Compatible buckets for the New Holland 875TL front-end loader: 83" (2100 mm) and 102" (2600 mm) heavy-duty material buckets with heaped capacities of 0.82 m3 (28.7 cu.ft) and 1.03 m3 (36.1 cu.ft), or 102" (2600 mm) heavy-duty high volume bucket with a heaped capacity of 1.85 m3 (65.3 cu.ft).

Compatible Tractors
Tractor model New Holland T7040, T7050, T7060, T7070, T8020, T8030, T8040, T8050
Front tires 380/85 R34
Rear tires 480/80 R46
Pump capacity, gpm (lpm) 39.6 (150.0)

Loader
Loader model New Holland 875TL MSL
Leveling configuration Mechanical Self Leveling
Lift cylinder diameter, in (mm) 3.74 (95)
Lift cylinder stroke, in (mm) 27.36 (695)
Bucket cylinder diameter, in (mm) 3.35/1.57 (85/40)
Bucket cylinder stroke, in (mm) 18.11 (460)
Weight, lb (kg) 3987 (1812)

83" Heavy Duty Material Bucket
Width, in (mm) 83 (2100)
Struck capacity, cu.ft (m3) 24,3 (0,69)
Heaped capacity, cu.ft (m3) 28,9 (0,82)
Weight, lb (kg) 573 (260)

102" Heavy Duty Material Bucket
Width, in (mm) 102 (2600)
Struck capacity, cu.ft (m3) 30,0 (0,85)
Heaped capacity, cu.ft (m3) 36,5 (1,03)
Weight, lb (kg) 875 (400)

Heavy Duty High Volume Bucket
Width, in (mm) 102 (2600)
Struck capacity, cu.ft (m3) 50,8 (1,45)
Heaped capacity, cu.ft (m3) 65,3 (1,85)
Weight, lb (kg) 979 (445)

Grapple Bucket
Width, in (mm) 102 (2600)
Struck capacity, cu.ft (m3) 29,97 (0,85)
Heaped capacity, cu.ft (m3) 36,5 (1,03)
Floor Tines 8
Weight, lb (kg) 1609 (731)

Loader Dimensions
Maximum lift height (T7040-T7070), in (mm) 194,4 (4920)
Maximum lift height (T8020-T8050), in (mm) 187 (4750)
Clearance at full height, bucket dumped (T7040-T7070), in (mm) 157,2 (3975)
Clearance at full height, bucket dumped (T8020-T8050), in (mm) 150 (3810)
Digging depth (T7040-T7070), in (mm) 6,7 (170)
Digging depth (T8020-T8050), in (mm) 6 (152)
Reach at maximum height (T7040-T7070), in (mm) 28,8 (730)
Reach at maximum height (T8020-T8050), in (mm) 65 (1650)
Reach at ground, bucket level (T7040-T7070), in (mm) 117 (2960)
Reach at ground, bucket level (T8020-T8050), in (mm) 109 (2770)
Maximum dump angle (T7040-T7070), degrees 51
Maximum dump angle (T8020-T8050), degrees 58
Maximum rollback angle (T7040-T7070), degrees 42
Maximum rollback angle (T8020-T8050), degrees 38

Operating Data
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (T7040-T7070), lb (kg) 6248 (2840)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (T8020-T8050), lb (kg) 5250 (2386)
Breakout force at 31.5" (0.8m) ahead of pivot (T7040-T7070), lb (kg) 7150 (3250)
Breakout force at 31.5" (0.8m) ahead of pivot (T8020-T8050), lb (kg) 7000 (3180)
