Case 310 Backhoe Loader
The

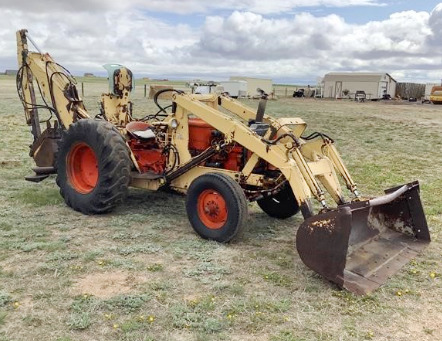

Case 310 backhoe loader was manufactured between 1957 and 1958. The Case 310 is
powered by G148 four-stroke 4-cylinder liquid-cooled gasoline engine with a
maximum output power of 42 Hp (31.3 kW) and 173.6 Nm (128 lb-ft) of max torque
at 1200 rev/min.
The Case 310 backhoe loader was fitted with 3 transmission options:
8x8 dual range shuttle transmission, 4x1 gear transmission, or triple-range
transmission with 12 forward and 3 reverse gears. The maximum forward speed -
22.9 mph (36.8 km/h), max. reverse speed - 22.8 mph (36.7 km/h).
The open center
hydraulic system includes a gear pump with rated fluid flow of 19 gpm (72
l/min). The hydraulic pressure is 110 bar (1600 psi). The backhoe loader was
equipped with 7.50x16 front tires and 13.0x24 rear tires. The wheel base is
75.3" (1910 mm).
The Case 310 front end loader’s max lift height is 129.8" (3290
mm) at pin, and clearance with bucket dumped is 109.5" (2780 mm). The lift
capacity is 1500 lbs (680 kg) at max. height (pivot pin), and breakout force is
3000 lbs (1360 kg). The estimated cycle times are 6.5 seconds lifting to full
height, and 4 seconds maximum bucket dumping. The loader buckets have a width of
48, 56 and 63 inches.
The backhoe has a rated digging depth of 12 ft (3650 mm),
and reach from swing pivot of 16 ft 2 in (4920 mm) at ground level. The maximum
transport height is 11 ft 7 in (3530 mm). The backhoe can be fitted with 14",
16", 19", 24", and 30" buckets.
| Engine Model |
Case G148 |
| Engine Type |
4-Stroke, 4-cylinder liquid-cooled gasoline |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
148 (2.40) |
| Engine Bore, in (mm) |
3.38 (86.0) |
| Engine Stroke, in (mm) |
4.13 (105.0) |
| Rated Engine Power, hp (kW) |
42.0 (31.3) |
| Rated Engine Speed, rpm |
1900 |
| Maximum Torque, Nm (ft-lb) |
173.6 (128) |
| Torque Speed, rpm |
1200 |
| Compression Ratio |
7.25:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Up-draft carburetor |
| Air Cleaner |
Oil bath |
| Governor |
Mechanical, fly weight |
| Lubrication System Type |
Positive pressure |
| Cooling System Type |
Pressurized |
| Spark Plug Gap, in (mm) |
0.025 (0.64) |
| Point Gap, in (mm) |
0.020 (0.51) |
| Fuel Tank Capacity, gal (L) |
13.0 (49.2) |
| Oil Capacity, qts (L) |
4.8 (4.5) |
| Coolant Capacity, qts (L) |
13.0 (12.3) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator |
| Transmission Type |
Dual Range Shuttle |
| Gearbox Type |
8F/8R, mechanical shuttle |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
9.25 (235.0) |
| Maximum Forward Speed, mph (kph) |
18.3 (29.4) |
| Maximum Reverse Speed, mph (kph) |
22.8 (36.7) |
| Transmission Type |
Triple-Range |
| Gearbox Type |
12F/3R, gear |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
3 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
9.25 (235.0) |
| Maximum Forward Speed, mph (kph) |
22.9 (36.8) |
| Maximum Reverse Speed, mph (kph) |
5.4 (8.7) |
| Transmission Type |
Gear |
| Gearbox Type |
4F/1R |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
1 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
9.25 (235.0) |
| Maximum Forward Speed, mph (kph) |
13.4 (21.6) |
| Maximum Reverse Speed, mph (kph) |
3.3 (5.3) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual/power |
| Brakes Type |
Differential manual disc |
| Front Tire Size (Std) |
7.50-16 |
| Rear Tire Size (Opt) |
13.0-24 |
| Front Tread, in (mm) |
47.5 (1200) |
| Rear Tread, in (mm) |
64.3 (1630) |
| Hydraulic System Type |
Direct drive, gear pump type |
| Implement Pump Flow, gpm (Lpm) |
19.0 (72.0) |
| Hydraulic Pressure, Bar (psi) |
110 (1600) |
| Fluid Capacity, gal (L) |
11.0 (41.6) |
| Number of Standard Remote Valves |
6 |
| Rear Hitch Type |
Case Eagle Hitch |
| 3-Point Hitch Category |
2 |
| Wheelbase, in (mm) |
75.3 (1910) |
| Length (with Attachments), in (mm) |
256 (6500) |
| Height (Steering Wheel), in (mm) |
58 (1470) |
| Overall Width, in (mm) |
79 (2000) |
| Ground Clearance, in (mm) |
12 (305) |
| Weight (with Loader and Backhoe), lb (kg) |
7600 (3445) |
| Loader Model |
J.I. Case 31 |
| Maximum Lift Height (to pin), in (mm) |
129.8 (3290) |
| Clearance, Dumped Bucket, in (mm) |
109.5 (2780) |
| Dump Reach, in (mm) |
17 (430) |
| Dump Angle, deg |
45 |
| Rollback Angle, deg |
13 |
| Breakout Force (at pin), lb (kg) |
3000 (1360) |
| Lift to Full Height (at pin), lb (kg) |
1500 (680) |
| Bucket Width (Std), in (mm) |
48 (1210) |
| Bucket Width (Std), in (mm) |
56 (1420) |
| Bucket Width (Opt), in (mm) |
63 (1600) |
| Raising Time to Full Height, second |
6.5 |
| Bucket Dumping Time, second |
4.0 |
| Bucket Rollback Time, second |
4.0 |
| Lift Cylinder Size, in (mm) |
2.5x31.4 (63x795) |
| Bucket Cylinder Size, in (mm) |
2.5x20.7 (63x523) |
| Digging Depth, in (mm) |
144 (3650) |
| Reach from Swing Pivot, in (mm) |
194 (4920) |
| Loading Height, in (mm) |
127 (3220) |
| Swing Arc, deg |
180 |
| Maximum Transport Height, in (mm) |
139 (3530) |
| Stabilizer Spread (Down Position), in (mm) |
98 (2480) |
| Bucket Width, in (mm) |
14 (355) |
| Bucket Width, in (mm) |
16 (405) |
| Bucket Width, in (mm) |
19 (480) |
| Bucket Width, in (mm) |
24 (605) |
| Bucket Width, in (mm) |
30 (760) |
| Boom Cylinder Size, in (mm) |
3.5x35 (88x886) |
| Croud Cylinder Size, in (mm) |
4x26.1 (101x660) |
| Bucket Cylinder Size, in (mm) |
3.5x27.3 (88x690) |
| Swing Cylinder Size, in (mm) |
2.5x16.5 (63x417) |
| Stabilizer Cylinder Size, in (mm) |
3x9 (76x228) |
