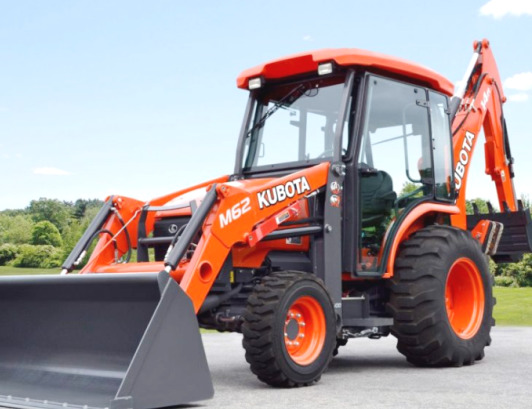

Kubota M62 Backhoe Loader
The
Kubota M62 backhoe loader was manufactured from 2016 to 2021. The Kubota M62 TLB
driveline consists of a 148.5 cu.in (2.4L) Kubota V2403 vertical 4-cylinder
indirect injection water-cooled diesel engine and 3-range hydrostatic
transmission with infinite forward and reverse gears. The engine has a cylinder
bore of 3.43" (87 mm), piston stroke of 4.03" (102.4 mm), and rated power of
59.1 hp (44.1 kW).
The maximum forward speed - 15.7 mph (25.1 kph), a max reverse speed -
15.4 mph (24.7 kph). The open center hydraulic system used a gear pump
with a rated fluid flow of 31.0 (117.0) lpm. The main relief pressure is
186 bar (2700 psi). The Kubota M62 is equipped with a hydrostatic power
steering system, multiple wet disc brakes, 10x16.5 front tires, and
17.5Lx24 rear tires. The wheel base is 80.7" (2050 mm).
The Kubota TL1800 loader has a lifting capacity (at pivot pin) of 3960
lbs (1796 kg) to max height of 126.1" (3203 mm), and boom breakout force
of 5992 lbs (2724 kg). The bucket dump clearance with a 43-degree max
dump angle is 95" (2412 mm). The time to raise the boom is 3.9 seconds
from ground level to maximum height, and bucket dump time is 2.4
seconds. The 84" (2135 mm) standard material bucket has a heaped
capacity of 23.3 cu.ft (0.66 m3).
The Kubota BT1400B backhoe has a bucket digging force of 6572 lbs (2987
kg), and dipperstick digging force of 4657 lbs (2115 kg). The maximum
digging depth is 169.8" (4312 mm), and overall reach from swing pivot is
211.1" (5361 mm) at ground level. The backhoe can be equipped with 16"
(405 mm), 18" (455 mm), 24" (605 mm), 30" (760 mm), or 36" (910 mm)
buckets.
Engine Model |
Kubota V2403 |
Engine Type |
4 cycle, vertical, indirect injection water-cooled diesel |
Number of Cylinders |
4 |
Displacement, cu in (L) |
148.5 (2.434) |
Engine Bore, in (mm) |
3.43 (87.0) |
Engine Stroke, in (mm) |
4.03 (102.4) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
59.1 (44.1) |
Maximum Engine Power, hp (kW) |
63.0 (47.0) |
Rated Engine Speed, rpm |
2700 |
Idle Speed, rpm |
950-1000 |
Compression |
23.8:1 |
Firing Order |
1-3-4-2 |
Fuel System |
Indirect injection |
Fuel Injection Pump |
Bosch type |
Emissions Level |
Tier 4 |
Emission Control |
EGR |
Fuel Tank Capacity, gal (L) |
17.7 (67.0) |
Oil Capacity, qts (L) |
9.9 (9.4) |
Coolant Capacity, qts (L) |
8.7 (8.2) |
Electrical System Rating, Volts |
12 |
Starting System |
Electric starter |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
46.0 (34.3) |
PTO Speed, rpm |
540 |
PTO Shaft |
Transmission case rear |
Transmission Type |
HST Plus, Hydrostatic |
Number of Forward Gears |
3 Range |
Number of Reverse Gears |
3 Range |
Oil Capacity, qts (L) |
48.8 (46.2) |
Cruise Control |
Standard |
Maximum Forward Speed, mph (kph) |
15.7 (25.1) |
Maximum Reverse Speed, mph (kph) |
15.4 (24.7) |
Drive Wheels |
4WD 4x4 |
Steering Configuration |
Front steer |
Steering System |
Hydrostatic power |
Brake Type |
Multiple wet discs |
Front Tire Size |
10-16.5 |
Rear Tire Size |
17.5L-24 |
Front Tread, in (mm) |
56.7 (1440) |
Rear Tread, in (mm) |
57.6 (1462) |
Hydraulic System Type |
Open center |
Hydraulic Pump Flow, gpm (Lpm) |
31.0 (117.0) |
Steering Flow, gpm (Lpm) |
6.6 (25.0) |
Hydraulic Pressure, Bar (psi) |
186 (2700) |
Hydraulic Capacity, gal (L) |
12.2 (46.2) |
3-Point Hitch Category |
2/1 |
Draft Sensing or Lift Control |
Position control |
Lift Capacity 24" (600mm) behind pin, lb (kg) |
2795 (1270) |
Wheelbase, in (mm) |
80.7 (2050) |
Overall Length (without Backhoe), in (mm) |
178.6 (4535) |
Height (ROPS), in (mm) |
102.1 (2595) |
Overall Width (with Loader), in (mm) |
84.8 (2155) |
Overall Width (w/o Loader), in (mm) |
75 (1905) |
Ground Clearance, in (mm) |
13.8 (350) |
Turning Radius, in (mm) |
130.4 (3300) |
Weight (w/o Attachments), lb (kg) |
4990 (2265) |
Weight (with Attachments), lb (kg) |
8925 (4050) |
Loader Model |
Kubota TL1800 |
Maximum Lift Height, in (mm) |
126.1 (3203) |
Clearance Bucket Dumped, in (mm) |
95.0 (2412) |
Reach at Maximum Height, in (mm) |
24.1 (612) |
Maximum Dump Angle, deg |
43 |
Reach at Ground, in (mm) |
71.7 (1821) |
Bucket Rollback Angle, deg |
45 |
Digging Depth, in (mm) |
2.7 (69) |
Lift Capacity at Maximum Height, lb (kg) |
3960 (1796) |
Breakout Force, lb (kg) |
5992 (2724) |
Bucket Width, in (mm) |
84 (2135) |
Bucket Capacity, cu in (cu.m) |
23.3 (0.66) |
Loader Weight, lb (kg) |
1169 (530) |
Bucket Weight, lb (kg) |
538 (244) |
Backhoe Model |
Kubota BT1400B |
Boom Swing System |
2-cylinder trunion type |
Transport Height, in (mm) |
136.0 (3445) |
Digging Depth (Maximum), in (mm) |
169.8 (4312) |
Digging Depth (2-ft Flat Bottom), in (mm) |
168.4 (4277) |
Loading Height, in (mm) |
130.9 (3325) |
Swing Arc, deg |
180 |
Reach From Pivot, in (mm) |
211.1 (5361) |
Bucket Force, lb (kg) |
6572 (2987) |
Dipperstick Force, lb (kg) |
4657 (2115) |
Bucket Width (Standard), in (mm) |
16 (405), 18 (455), 24 (605) |
Bucket Width (Optional), in (mm) |
12 (300), 30 (760), 36 (910) |
Backhoe Weight, lb (kg) |
2160 (980) |
