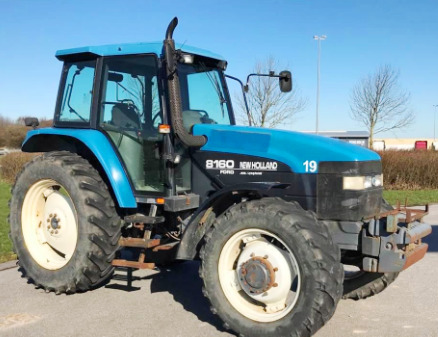

New Holland 8160 Tractor

The New Holland 8160 is a 4x4 (4WD) farm tractor. This model was manufactured from 1996 to 1999. The NH 8160 driveline consists of a Ford TC 456 6-cyl. water cooled naturally aspirated diesel engine and 48x24 Dual Command 2-speed power shift transmission, or Range Command transmission with 31 forward and 12 reverse gears.

A 457 cubic inches (7,5L) engine has output power of 100 Hp (74.5 kW) and max. torque of 432 Nm (320 lb-ft) at 1400 rpm. Max. forward speed is 24,9 mph (40 km/h).

The closed center hydraulic system includes a piston pump with fluid flow rate of 24.7 gal/min (93.5 l/min). The main relief pressure is 190 bar (2755 psi). The rear lift capacity is 14806 lbs (6730 kg) at pin. The New Holland 8160 tractor is equipped with 14.9R28 front tyres and 18.4R38 rear tyres. The wheelbase is 107.1 inches (2720 mm).

Engine
Engine Model Ford TC 456
Engine Type 4 stroke water cooled diesel
Number of Cylinders 6
Displacement, cu in (L) 457 (7,49)
Engine Bore, in (mm) 4,4 (111,8)
Engine Stroke, in (mm) 5,0 (127,0)
Aspiration Natural
Rated Engine Power, hp (kW) 100 (74.5)
Rated Engine Speed, rpm 2200
Maximum Torque, Nm (ft-lbs) 432 (320)
Torque Speed, rpm 1400
Compression 17.5:1
Firing Order 1-5-3-6-2-4
Fuel Tank Capacity, gal (L) 58,1 (220)
Oil Capacity, qts (L) 20,0 (18,9)
Coolant Capacity, qts (L) 27,0 (25,5)
Electrical System Rating, Volts 12
Batteries Power, Ah 100

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 90,0 (67,1)
PTO Speeds, rpm 540/750/1000

Standard Transmission
Transmission Model Dual Command
Transmission Type 2 Speed powershift
Gearbox Type 48F/24R
Number of Forward Gears 48
Number of Reverse Gears 24
Maximum Speed Forward, mph (kph) 24,9 (40,0)


Optional Transmission
Transmission Model Range Command
Transmission Type 2 Speed powershift
Gearbox Type 31F/12R
Number of Forward Gears 31
Number of Reverse Gears 12
Maximum Speed Forward, mph (kph) 24,9 (40,0)

Wheels and Tires
Drive Wheels 4WD 4x4
Steering Configuration Front Steer
Steering System Hydrostatic
Service Brake Differential hydraulic wet disc
Front Tire Size 14.9R28
Rear Tire Size 18.4R38

Hydraulic System
Hydraulic System Type Closed Center
Implement Pump Flow, gpm (Lpm) 24,7 (93,5)
Steering Pressure, Bar (psi) 170 (2465)
Hydraulic Pressure, Bar (psi) 190 (2755)
3-Point Hitch Category 2
Standard Lift Capacity at lift pin, lb (kg) 14806 (6730)

Dimensions and Weight
Wheelbase, in (mm) 107,1 (2720)
Length, in (mm) 182 (4620)
Height, in (mm) 111 (2830)
Overall Width, in (mm) 84 (2130)
Turning Radius, in (mm) 181 (4610)
Shipping Weight, lb (kg) 11550 (5250)
Operating Weight, lb (kg) 12650 (5750)
