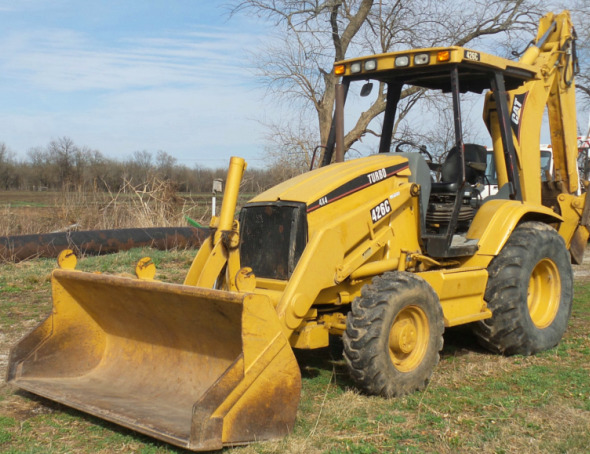

Cat 426C Backhoe Loader
The
Caterpillar 426C backhoe loader was manufactured from 1996 to 2000. The
components of Cat 426C powertrain system: Caterpillar 3054 DIT four-stroke
4-cylinder direct injection turbocharged diesel engine, and 4x4 power shuttle
transmission with a single-stage torque converter.
A 4L (243 cubic inches) engine power rating is 80 hp (60 kw) at 2200
rpm. The max travel speed (forward/reverse): 21.1 mph (34 km/h). The
closed center load-sensing hydraulic system includes an axial piston
pump with fluid flow rate of 43 gal/min (162 l/min). The main relief
pressure is 3000 psi (207 bar).
The Cat 426C is equipped with 11L-16 front tyres and 16.9-24 rear tyres
(2WD models), or 12.5/80-18 front tyres and 19.5L-24 rear tyres (4WD
models). The loader has a maximum lift height of 10 ft 9 in (3290 mm) at
pin, and clearance with bucket dumped of 100 in (2530 mm). The lift
capacity is rated at 7034 lbs (3190 kg) to max height, and bucket's
breakout force is 10541 lbs (4790 kg). The loader bucket has a width of
95 in (2400 mm) and nominal heaped capacity of 29.2 cu.ft (0.84 m3).
The backhoe work ranges consist of a bucket digging force of 14440 lbs
(6560 kg), standard dipperstick digging force of 8510 lbs (3870 kg), and
extendable dipperstick digging force of 6310 lbs (2870 kg). The maximum
digging depth (standard stick or extendable stick) is 15 ft 6 in (4721
mm) or 20 ft 3 in (6169 mm), and reach from swing pivot at ground level
(standard stick or extendable stick) is 19 ft 10 in (6056 mm) or 24 ft 3
in (7395 mm). The backhoe is equipped with 16", 20", 24, 30" and 36"
standard material buckets, 12", 16", 18", 24, 30", 36" heavy duty
material buckets, and 18", 24" extreme service buckets.
Engine Model |
Caterpillar 3054 DIT |
Engine Type |
4-Stroke, 4-cylinder, turbocharged diesel |
Number of Cylinders |
Four, In-Line |
Displacement, cu in (L) |
243 (4.00) |
Engine Bore, in (mm) |
3.94 (100.0) |
Engine Stroke, in (mm) |
5.00 (127.0) |
Aspiration |
Turbocharged |
Maximum Engine Power, hp (kW) |
84.0 (62.7) |
Rated Engine Power, hp (kW) |
80.0 (60.0) |
Rated Engine Speed, rpm |
2200 |
Compression |
16.2:1 |
Fuel System |
Direct Injection |
Rotation |
Counterclockwise |
Air Cleaner |
Dry-type |
Fuel Tank Capacity, gal (L) |
34.0 (128.0) |
Oil Capacity, qts (L) |
7.7 (7.3) |
Coolant Capacity, qts (L) |
20.1 (18.9) |
Electrical System Rating, Volts |
12 |
Alternator Rating, Amp |
52 |
Transmission Type |
Power Shuttle |
Gearbox Type |
4F/4R, Full synchromesh |
Number of Forward Gears |
4 |
Number of Reverse Gears |
4 |
Torque Converter |
Single-stage |
Torque Converter Ratio |
2.63:1 |
Oil Capacity, qts (L) |
19.1 (18.0) |
Maximum Forward Speed, mph (kph) |
21.1 (34.0) |
Maximum Reverse Speed, mph (kph) |
21.1 (34.0) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
All Wheel Steer (AWS) |
Steering System |
Full hydrostatic steering with 3 modes |
Steering Modes |
Two wheel steer, circle steer, and independent rear wheels |
Steering Cylinder |
Two, Double-acting (front and rear) |
Steering Cylinder Bore (Front Wheels), in (mm) |
2.6 (65) |
Steering Cylinder Stroke (Front Wheels), in (mm) |
8.3 (210) |
Steering Cylinder Rod Diameter (Front Wheels), in (mm) |
1.4 (36) |
Steering Cylinder Bore (Rear Wheels), in (mm) |
3.1 (80) |
Steering Cylinder Stroke (Rear Wheels), in (mm) |
4.1 (104) |
Steering Cylinder Rod Diameter (Rear Wheels), in (mm) |
1.6 (40) |
Service Brakes |
Fully enclosed, hydraulic, multiple discs |
Parking Brake |
Mechanical, independent |
Front Tire Size (2WD) |
11L-16, 12 PR, F3 |
Front Tire Size (4WD) |
12.5/80-18, 10 PR, SG |
Rear Tire Size (2WD) |
16.9-24, 8 PR, R4 |
Rear Tire Size (4WD) |
19.5L-24, 8 PR |
Rear Tire Size (AWS) |
19.5L-24, 10 PR |
Hydraulic System Type |
Load-sensing, closed center |
Hydraulic Pump Type |
Variable, axial piston |
Hydraulic Pump Flow, gpm (Lpm) |
43.0 (162.0) |
Hydraulic Pressure, Bar (psi) |
207 (3000) |
Hydraulic System Capacity, gal (L) |
20.8 (79.0) |
Valves Type |
Pressure-compensated |
Wheelbase |
83 in (2100 mm) |
Transport Length |
23 ft 10 in (7260 mm) |
Overall Length, (Loader on ground) |
23 ft 11 in (7280 mm) |
Transport Height |
12 ft 5 in (3770 mm) |
Height (Cab) |
112.6 in (2850 mm) |
Height (Exhaust) |
105.5 in (2670 mm) |
Overall Width |
88.3 in (2235 mm) |
Ground Clearance |
11.5 (291 mm) |
Front Tread |
78.1 in (1977 mm) |
Rear Tread |
67.7 in (1714 mm) |
Turning Radius (Two Wheel Steer) |
17 ft 9 in (5400 mm) |
Turning Radius (Circle Steer) |
17 ft 1 in (5200 mm) |
Turning Radius (Independent Rear Wheels) |
15 ft 7 in (4750 mm) |
Weight |
15450 lbs (7010 kg) |
Bucket Hinge Pin, Maximum Height |
10 ft 9 in (3290 mm) |
Dump Angle at Full Height |
45 degrees |
Dump Clearance at 45 deg |
100 in (2530 mm) |
Dump Reach at 45 deg |
32 in (810 mm) |
Maximum Bucket Rollback at Ground Level |
40 degrees |
Digging Depth |
4.2 in (105 mm) |
Maximum Grading Angle |
108 degrees |
Maximum Operating Height |
13 ft 8 in (4170 mm) |
Lift Capacity at Maximum Height |
7034 lbs (3190 kg) |
Breakout Force |
10541 lbs (4790 kg) |
Bucket Width |
95 in (2400 mm) |
Bucket Capacity |
29.2 cu.ft (0.84 m3) |
Loader Weight |
1012 lbs (460 kg) |
Maximum Digging Depth |
15 ft 6 in (4721 mm) |
Digging Depth, 2 ft (610 mm) Flat Bottom |
15 ft 4 in (4696 mm) |
Overall Operating Height at Full Lift |
18 ft 11 in (5752 mm) |
Loading Height |
12 ft 6 in (3815 mm) |
Reach From Swing Pivot at Ground Line |
19 ft 10 in (6056 mm) |
Loading Reach |
5 ft 7 in (1711 mm) |
Swing Arc |
180 degrees |
Bucket Rotation (Vertical Wall Position) |
170 degrees |
Bucket Rotation (Truck Loading Position) |
170 degrees |
Stabilizer Spread (Operating Position) |
10 ft 7 in (3219 mm) |
Stabilizer Spread (Transport Position) |
7 ft 9 in (2352 mm) |
Digging Force (Bucket Cylinder) |
14440 lbs (6563 kg) |
Digging Force (Crowd Cylinder) |
8510 lbs (3870 kg) |
Backhoe (Extendable Stick) |
Maximum Digging Depth |
20 ft 3 in (6169 mm) |
Digging Depth, 2 ft (610 mm) Flat Bottom |
20 ft 1 in (6129 mm) |
Overall Operating Height at Full Lift |
21 ft 11 in (6667 mm) |
Loading Height |
16 ft 2 in (4925 mm) |
Reach From Swing Pivot at Ground Line |
24 ft 3 in (7395 mm) |
Loading Reach |
8 ft 11 in (2717 mm) |
Swing Arc |
180 degrees |
Bucket Rotation (Vertical Wall Position) |
165 degrees |
Bucket Rotation (Truck Loading Position) |
165 degrees |
Stabilizer Spread (Operating Position) |
10 ft 7 in (3219 mm) |
Stabilizer Spread (Transport Position) |
7 ft 9 in (2352 mm) |
Digging Force (Bucket Cylinder) |
14440 lbs (6560 kg) |
Digging Force (Crowd Cylinder) |
6310 lbs (2870 kg) |
