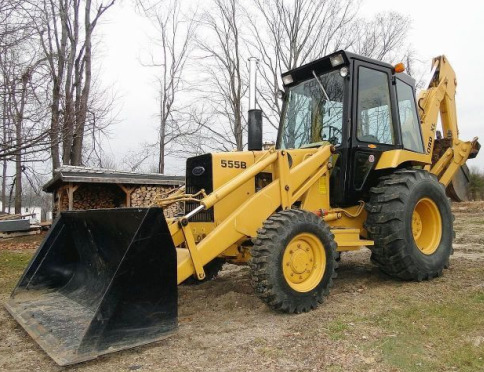

Ford 555B Backhoe Loader
The
Ford 555B backhoe loader was manufactured between 1985 and 1988. The components
of Ford 555B driveline system: a 201 cubic inches 4-cycle three-cylinder
liquid-cooled diesel engine, and 4-speed transmission with torque converter.
The engine power is 63 Hp (47 kW), and a maximum torque is 228.5 Nm
(168.5 lb-ft) at 1400 rev/min. The maximum forward speed - 17.1 mph
(27.5 km/h), a maximum reverse speed - 16.9 mph (27.2 km/h). The open
center hydraulic system used a gear pump with flow of 28.5 gpm (108
lpm).
The hydraulic system pressure is 160 bar (2450 psi). The 4WD models are
equipped with 10.5x18 front tyres and 16.9x28 rear tyres. The 11Lx16
front tyres and 16.9x24 rear tyres are fitted for 2WD models.
The front end loader has a lifting capacity (at pin) of 5250 lb (2380
kg) to a maximum height of 129 inches (3270 mm), and breakout force
(bucket on ground) of 11850 lb (5375 kg). The bucket dump clearance with
a 55-degree maximum dump angle is 109 inches (2760 mm). The estimated
cycle times are 4.3 seconds lifting to full height, and 1.6 seconds full
bucket dumping. The general purpose bucket has a width of 84 inches
(2130mm), and heaped capacity of 1.0 cu.yd (0.80 cu.m).
The Ford 765 backhoe has a max dig depth of 173 inches (4390 mm), 2-ft
flat digging depth 171 inches (4340 mm), and 8-ft flat digging depth of
155 inches (3930 mm). The digging force is 6750 lb (3060 kg) for the
crowd cylinder, and 9735 lb (4415 kg) for the bucket cylinder. The
overall reach from swing pivot at ground line is 220 inches (5580 mm).
The backhoe is compatible with 12", 18", 24", 30", and 36" buckets.
| Engine Model |
Ford |
| Engine Type |
4-Stroke, three-cylinder liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
201 (3.30) |
| Engine Bore, in (mm) |
4.40 (112.0) |
| Engine Stroke, in (mm) |
4.40 (112.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
63.0 (47.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lb) |
228.5 (168.5) |
| Torque Speed, rpm |
1400 |
| Compression Ratio |
16.3:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Injection pump |
| Governor |
Mechanical |
| Air Cleaner |
Dry |
| Intake Valve Clearance, in (mm) |
0.015 (0.38) |
| Exhaust Valve Clearance, in (mm) |
0.018 (0.46) |
| Fuel Tank Capacity, gal (L) |
24.0 (90.8) |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Coolant Capacity, qts (L) |
15.3 (14.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
51/72 |
| Transmission Type |
Torque Converter |
| Gearbox Type |
4F/4R, 4-speeds |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.78:1 |
| Oil Capacity, qts (L) |
19.0 (18.0) |
| Maximum Forward Speed, mph (kph) |
17.1 (27.5) |
| Maximum Reverse Speed, mph (kph) |
16.9 (27.2) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential mechanical wet disc |
| Front Tire Size (2WD) |
11Lx16 |
| Rear Tire Size (2WD) |
16.9x24 |
| Front Tire Size (4WD) |
10.5x18 |
| Rear Tire Size (4WD) |
16.9x28 |
| Front Tread, in (mm) |
68 (1720) |
| Rear Tread, in (mm) |
64 (1620) |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
28.5 (108.0) |
| Steering Pump Flow, gpm (Lpm) |
5.9 (22.4) |
| Hydraulic Pressure, Bar (psi) |
169 (2450) |
| Hydraulic Fluid Capacity (Loader), gal (L) |
13.0 (49.2) |
| Hydraulic Fluid Capacity (Backhoe), gal (L) |
21.0 (79.5) |
| Steering Oil Capacity, qts (L) |
2.0 (1.9) |
| Wheelbase, in (mm) |
80 (2030) |
| Length (with Loader), in (mm) |
180 (4570) |
| Length (with Backhoe/Loader), in (mm) |
278 (7060) |
| Height (Cab), in (mm) |
109 (2760) |
| Height (ROPS), in (mm) |
107.5 (2730) |
| Overall Width, in (mm) |
85 (2150) |
| Ground Clearance (2WD), in (mm) |
24 (605) |
| Ground Clearance (4WD), in (mm) |
12 (305) |
| Weight with Backhoe/Loader, lb (kg) |
13440 (6095) |
| Loader Model |
Ford |
| Maximum Lift Height (to Pin), in (mm) |
129 (3270) |
| Clearance, Dumped Bucket, in (mm) |
109 (2760) |
| Reach At Max. Lift Height, in (mm) |
31 (780) |
| Dump Angle, deg |
55 |
| Rollback Angle, deg |
40 |
| Breakout Force (at Pin), lb (kg) |
11850 (5375) |
| Lift Capacity To Max. Height (at Pin), lb (kg) |
5250 (2380) |
| Bucket Width, in (mm) |
84 (2130) |
| Bucket Capacity, cu.yd (m3) |
1.0 (0.80) |
| Raising Time to Full Height, sec |
4.3 |
| Bucket Dumping Time, sec |
1.6 |
| Lowering Time, sec |
2.3 |
| Backhoe Model |
Ford 765 |
| Digging Depth (Maximum), in (mm) |
173 (4390) |
| Digging Depth (2-ft Flat), in (mm) |
171 (4340) |
| Digging Depth (8-ft Flat), in (mm) |
155 (3930) |
| Reach from Swing Pivot, in (mm) |
220 (5580) |
| Loading Height, in (mm) |
121 (3070) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
179 |
| Maximum Transport Height, in (mm) |
139 (3530) |
| Digging Force (Bucket), lb (kg) |
9735 (4415) |
| Digging Force (Dipperstick), lb (kg) |
6750 (3060) |
| Bucket Width, in (mm) |
12 (305) |
| Bucket Width, in (mm) |
18 (455) |
| Bucket Width, in (mm) |
24 (605) |
| Bucket Width, in (mm) |
30 (760) |
| Bucket Width, in (mm) |
36 (910) |
