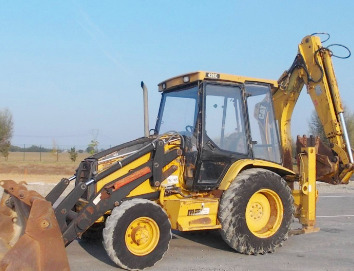

Cat 428C Backhoe Loader

The Caterpillar 428C backhoe loader was manufactured between 1996 and 2001. The Cat 428C is powered by 243 cu.in (4 L) Caterpillar 3054T 4-stroke 4-cylinder direct injection turbocharged diesel engine with a maximum power of 78 hp (59 kW).

The Caterpillar 428C is fitted with 2 transmission options: 4x4 Power Shuttle transmission, or Power Shift transmission with 5 forward and 3 reverse gears. The max forward and reverse speed - 19.9 mph (31.8 km/h).

The closed center load-sensing hydraulic system used an axial piston pump with fluid flow rate of 42.9 gpm (163 lpm). The hydraulic pressure is 207 bar (3000 psi). The Caterpillar 428C was equipped with 11Lx16 (2WD) or 14.5x16 (4WD) front tires and 16.9x28 (2WD) or 18.4x26 (4WD) rear tires. The wheel base is 83" (2100 mm).

The loader has a lift capacity (at pin) of 7010 lbs (3187 kg) to max height of 128.7" (3270 mm), and breakout force (bucket on ground) of 10750 lbs (4885 kg). The clearance with a bucket dumped is 101" (2565 mm) at maximum dump angle of 47 degrees. The 95" (2400 mm) standard material bucket has a heaped capacity of 35 cu.ft (1 m3).

The standard backhoe work ranges consist of a bucket dig force of 11660 lbs (5300 kg) and dipper arm digging force of 7610 lbs (3460 kg). The maximum digging depth is 15 ft 10 in (4810 mm), and overall reach from swing pivot is 18 ft 5 in (5578 mm) at ground line. The backhoe is compatible with 16", 20", 24", 30", and 36" buckets.

Engine
Engine Model Caterpillar 3054 T
Engine Type 4-Stroke, 4-cylinder, direct injection turbocharged diesel
Number of Cylinders Four, In-Line
Displacement, cu in (L) 243 (4.00)
Engine Bore, in (mm) 3.94 (100.0)
Engine Stroke, in (mm) 5.00 (127.0)
Aspiration Turbocharged
Maximum Engine Power, hp (kW) 78.0 (59.0)
Power Boost, hp (kW) 84.0 (63.0)
Rated Engine Speed, rpm 2200
Torque Rise, % 20
Compression 16.2:1
Cylinder Block High strength cast iron alloy of deep-skirt, monobloc design
Cylinder Head High-strength, castiron alloy construction
Pistons and Rings Lightweight, silicon-aluminum alloy
Crankshaft Chrome-molybdenum-steel with tuffride hardened journals
Intake and Exhaust Valves Heat-resistant, silicone-chrome steel
Fuel System Direct Injection
Rotation Counterclockwise
Water Pump Durable gear-driven
Air Cleaner 2-stage dry-type, radial-seal
Fuel Tank Capacity, gal (L) 45.7 (128.0)
Oil Capacity, qts (L) 7.7 (7.3)
Coolant Capacity, qts (L) 20.1 (18.9)
Electrical System Rating, Volts 12
Alternator Rating, Amp 52

Standard Transmission
Transmission Type (Std) Power Shuttle
Gearbox Type 4F/4R, Full synchromesh
Number of Forward Gears 4
Number of Reverse Gears 4
Torque Converter Single-stage
Torque Converter Ratio 2.63:1
Oil Capacity, qts (L) 19.1 (18.0)
Maximum Forward Speed, mph (kph) 19.9 (31.8)
Maximum Reverse Speed, mph (kph) 19.9 (31.8)

Optional Transmission
Transmission Type 5F/3R, Power Shift
Number of Forward Gears 5
Number of Reverse Gears 3
Clutch Type Hydraulic
Oil Capacity, qts (L) 15.9 (15.0)
Maximum Forward Speed, mph (kph) 18.4 (29.4)
Maximum Reverse Speed, mph (kph) 13.4 (21.4)

Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Hydrostatic
Steering Cylinder One, Double-acting
Steering Cylinder Bore, in (mm) 3.0 (76)
Steering Cylinder Stroke, in (mm) 8.75 (221)
Steering Cylinder Rod Diameter, in (mm) 1.9 (48)
Service Brakes Fully enclosed, hydraulic, multiple discs
Parking Brake Mechanical, independent
Front Tire Size (2WD) 11Lx16
Front Tire Size (4WD) 14.5x16
Rear Tire Size (2WD) 16.9x28
Rear Tire Size (4WD) 18.4x26
Front Tread, in (mm) 70.4 (1780)
Rear Tread, in (mm) 67.7 (1714)


Hydraulic System
Hydraulic System Type Load-sensing, closed center
Hydraulic Pump Type Variable, axial piston
Hydraulic Pump Flow, gpm (Lpm) 42.9 (163.0)
Hydraulic Pressure, Bar (psi) 207 (3000)
Hydraulic System Capacity, gal (L) 20.8 (79.0)
Valves Type Pressure-compensated

Dimensions and Weight
Wheelbase 83 in (2100 mm)
Transport Length 19 ft 3 in (5760 mm)
Overall Length, (Loader on ground) 18 ft 10 in (5710 mm)
Transport Height 12 ft 4 in (3740 mm)
Height (Cab) 114.6 in (2900 mm)
Height (Exhaust) 106.7 in (2700 mm)
Overall Width 94.7 in (2396 mm)
Ground Clearance 12.6 in (320 mm)
Turning Radius 13 ft 4 in (4050 mm)
Weight (2WD) 13860 lbs (6300 kg)
Weight (4WD) 14080 lbs (6400 kg)
Weight (Maximum) 21340 lbs (9700 kg)

Front End Loader
Bucket Hinge Pin, Max Height 10 ft 9 in (3270 mm)
Dump Angle at Full Height 47 degrees
Dump Clearance at 45 deg 8 ft 5 in (2565 mm)
Dump Reach at 45 deg 32.4 in (820 mm)
Maximum Bucket Rollback at Ground Level 40 degrees
Digging Depth 5.4 in (135 mm)
Maximum Grading Angle 111 degrees
Grill to Bucket Cutting Edge 5 ft (1520 mm)
Maximum Operating Height 13 ft 8 in (4150 mm)
Lift Capacity at Maximum Height 7010 lbs (3187 kg)
Breakout Force 10750 lbs (4885 kg)
Bucket Width, in (mm) 95 (2400)
Bucket Capacity, cu.ft (m3) 35.0 (1.00)
Loader Weight 980 lbs (445 kg)

Backhoe (Standard Stick)
Maximum Digging Depth 15 ft 10 in (4810 mm)
Digging Depth, 24 in (610 mm) Flat Bottom 15 ft 8 in (4766 mm)
Reach From Swing Pivot at Ground Line 18 ft 5 in (5578 mm)
Loading Height 12 ft 6 in (3803 mm)
Loading Reach 64,7 in (1638 mm)
Swing Arc 180 degrees
Stabilizer Width 93,3 in (2360 mm)
Bucket Rotation 170 degrees
Digging Force (Bucket Cylinder) 11660 lbs (5300 kg)
Digging Force (Crowd Cylinder) 7610 lbs (3460 kg)
Total Side-Shift Travel 49,8 in (1260 mm)

Backhoe (Extendable Stick)
Maximum Digging Depth 19 ft 4 in (5860 mm)
Digging Depth, 24 in (610 mm) Flat Bottom 19 ft 3 in (5845 mm)
Reach From Swing Pivot at Ground Line 21 ft 10 in (6625 mm)
Loading Height 14 ft 8 in (4454 mm)
Loading Reach 101,9 in (2579 mm)
Swing Arc 180 degrees
Stabilizer Width 93,3 in (2360 mm)
Bucket Rotation 165 degrees
Digging Force (Bucket Cylinder) 12035 lbs (5470 kg)
Digging Force (Crowd Cylinder) 5345 lbs (2430 kg)
Total Side-Shift Travel 49,8 in (1260 mm)
