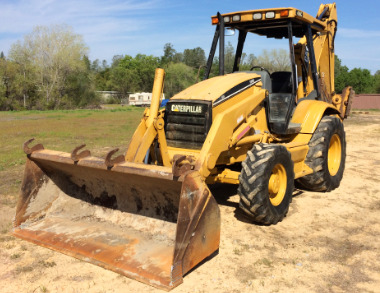

Cat 416C Backhoe Loader
The
Caterpillar 416C backhoe loader was manufactured between 1996 and 2001. The
components of Cat 416C powerline system: Caterpillar 3054 DINA 4-cycle
4-cylinder direct injection diesel engine and 4x4 power shuttle transmission
with single-stage torque converter.
A 243 cubic inches (4 L) engine has a cylinder bore of 3.94" (100 mm),
piston stroke of 5" (127 mm), and rated power of 75 hp (56 kW). The max
forward and reverse speed - 21.1 mph (34 km/h). The closed center
load-sensing hydraulic system includes an axial piston pump with a flow
of 43 gpm (162 lpm).
The hydraulic system pressure is 207 bar (3000 psi). The 2-wheel drive
models are equipped with 11Lx16 front tires and 16.9x24 rear tires. The
12.5/80-18 front tires and 19.5Lx24 rear tires are used for models with
4-wheel drive. The wheelbase is 83" (2100 mm).
The loader’s maximum lift height is 129.5" (3290 mm) at pin, and bucket
dump clearance is 98.6 in (2495 mm). The lifting capacity is 7166 lbs
(3250 kg) at full height (pivot pin), and breakout force is 10600 lbs
(4820 kg). The 89" (2260 mm) standard material bucket has a heaped
capacity of 23.3 cu.ft (0.67 m3).
The standard backhoe has a maximum depth of 14 ft 6 in (4420 mm). The
bucket digging force is 11700 lbs (5320 kg), and dipperstick digging
force is 7704 lbs (3500 kg). The overall reach from swing pivot at
ground level is 18 ft 6 in (5639 mm). The backhoe can be fitted with
16-in, 20-in, 24-in and 30-in buckets.
| Engine Model |
Caterpillar 3054 DINA |
| Engine Type |
4-Cycle, 4-cylinder, direct injection diesel |
| Number of Cylinders |
4, In-Line |
| Displacement, cu in (L) |
243 (4.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Maximum Engine Power, hp (kW) |
78.0 (59.0) |
| Rated Engine Power, hp (kW) |
75.0 (56.0) |
| Rated Engine Speed, rpm |
2200 |
| Compression |
16.2:1 |
| Fuel System |
Direct Injection |
| Rotation |
Counterclockwise |
| Air Cleaner |
Dry-type |
| Fuel Tank Capacity, gal (L) |
33.7 (128.0) |
| Oil Capacity, qts (L) |
7.4 (7.0) |
| Coolant Capacity, qts (L) |
22.3 (21.0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amp |
52 |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
4F/4R, Full synchromesh |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter |
Single-stage |
| Torque Converter Ratio |
2.21:1 |
| Oil Capacity, qts (L) |
10.6 (10.0) |
| Maximum Forward Speed, mph (kph) |
21.1 (34.0) |
| Maximum Reverse Speed, mph (kph) |
21.1 (34.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Cylinder |
One, Double-acting |
| Steering Cylinder Bore, in (mm) |
3.0 (76) |
| Steering Cylinder Stroke, in (mm) |
8.75 (221) |
| Steering Cylinder Rod Diameter, in (mm) |
1.9 (48) |
| Service Brakes |
Fully enclosed, hydraulic, multiple discs |
| Parking Brake |
Mechanical, independent |
| Front Tire Size (2WD) |
11L-16, 12 PR, F3 |
| Rear Tire Size (2WD) |
16.9-24, 8 PR, R4 |
| Front Tire Size (4WD) |
12.5/80-18, 10 PR, SG |
| Rear Tire Size (4WD) |
19.5L-24, 8 PR |
| Hydraulic System Type |
Load-sensing, closed center |
| Hydraulic Pump Type |
Variable, axial piston |
| Hydraulic Pump Flow, gpm (Lpm) |
43.0 (162.0) |
| Hydraulic Pressure, Bar (psi) |
207 (3000) |
| Hydraulic System Capacity, gal (L) |
20.8 (79.0) |
| Valves Type |
Pressure-compensated |
| Wheelbase |
83 in (2100 mm) |
| Transport Length |
22 ft 7 in (6890 mm) |
| Overall Length, (Loader on ground) |
22 ft 6 in (6870 mm) |
| Transport Height |
11 ft 9 in (3585 mm) |
| Height (Cab) |
112.6 in (2850 mm) |
| Height (Exhaust) |
105.5 in (2670 mm) |
| Overall Width |
88.3 in (2235 mm) |
| Ground Clearance |
11.7 in (297 mm) |
| Front Tread |
70.4 in (1780 mm) |
| Rear Tread |
67.7 in (1714 mm) |
| Turning Radius |
17 ft 6 in (5335 mm) |
| Weight |
13890 lbs (6300 kg) |
| Bucket Hinge Pin, Maximum Height |
10 ft 9 in (3290 mm) |
| Dump Angle at Full Height |
45 degrees |
| Dump Clearance at 45 deg |
98.6 in (2495 mm) |
| Dump Reach at 45 deg |
33.2 in (840 mm) |
| Maximum Bucket Rollback at Ground Level |
40 degrees |
| Digging Depth |
4 in (102 mm) |
| Maximum Grading Angle |
107 degrees |
| Maximum Operating Height |
13 ft 8 in (4170 mm) |
| Lift Capacity at Maximum Height |
7166 lbs (3250 kg) |
| Breakout Force |
10600 lbs (4820 kg) |
| Bucket Width, in (mm) |
89.1 (2260) |
| Bucket Capacity, cu.ft (m3) |
23.3 (0.67) |
| Loader Weight |
983 lbs (456 kg) |
| Maximum Digging Depth |
14 ft 6 in (4420 mm) |
| Digging Depth, 2 ft (610 mm) Flat Bottom |
14 ft 4 in (4379 mm) |
| Overall Operating Height at Full Lift |
17 ft 3 in (5269 mm) |
| Loading Height |
11 ft 5 in (3483 mm) |
| Reach From Swing Pivot at Ground Line |
18 ft 6 in (5639 mm) |
| Loading Reach |
5 ft 10 in (1764 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation (Vertical Wall Position) |
170 degrees |
| Bucket Rotation (Truck Loading Position) |
170 degrees |
| Stabilizer Spread (Operating Position) |
10 ft 7 in (3219 mm) |
| Stabilizer Spread (Transport Position) |
7 ft 9 in (2352 mm) |
| Digging Force (Bucket Cylinder) |
11700 lbs (5320 kg) |
| Digging Force (Crowd Cylinder) |
7704 lbs (3500 kg) |
| Backhoe (Extendable Stick) |
| Maximum Digging Depth |
18 ft 2 in (5545 mm) |
| Digging Depth, 2 ft (610 mm) Flat Bottom |
18 ft 1 in (5498 mm) |
| Overall Operating Height at Full Lift |
19 ft 5 in (5919 mm) |
| Loading Height |
13 ft 10 in (4223 mm) |
| Reach From Swing Pivot at Ground Line |
21 ft 11 in (6680 mm) |
| Loading Reach |
8 ft 11 in (2706 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation (Vertical Wall Position) |
165 degrees |
| Bucket Rotation (Truck Loading Position) |
165 degrees |
| Stabilizer Spread (Operating Position) |
10 ft 7 in (3219 mm) |
| Stabilizer Spread (Transport Position) |
7 ft 9 in (2352 mm) |
| Digging Force (Bucket Cylinder) |
12065 lbs (5485) |
| Digging Force (Crowd Cylinder) |
5635 lbs (2560) |
