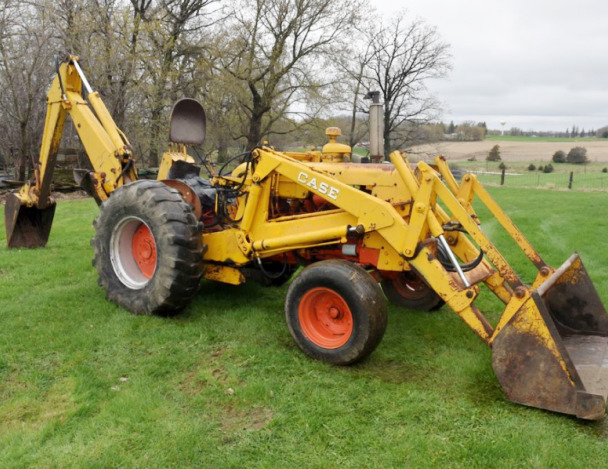

Case 530CK Backhoe Loader
The
Case 530 Construction King is a 2-wheel drive backhoe loader. This model was
manufactured from 1960 to 1967. The Case 530CK is powered by 188 cubic inches
four-cylinder liquid-cooled diesel engine with a maximum output power of 52 hp
(38.8 kW) at 2100 rpm, or 159 cubic inches four-cylinder gasoline engine with a
maximum power of 47.6 hp (35.5 kW) at 1900 rpm.
The Case 530CK is fitted with three transmission options: 8x8 dual range
mechanical shuttle transmission, 12x3 triple-range transmission, and 4x1
transmission with torque converter.
The maximum forward speed - 22 mph (35.4 kph), max. reverse speed - 25.9
mph (41.7 kph). The direct drive hydraulic system includes a gear pump
with fluid flow rate of 20 gpm (75.7 lpm) for models with a standard
clutch, and 22 gpm (83.3 lpm) for models with torque converter. The
hydraulic system pressure is 138 bar (2000 psi). The Case 530CK is
fitted with 7.50-16 or 6.50-16 front tires and 12.4x28 or 13.6-24 rear
tires. The wheel base is 77.2" (Gas) and 78.4" (Diesel).
The loader has a lift capacity (at pin) of 3000 lb (1360 kg) to a max
height of 127" (3220 mm), and breakout force of 6200 lb (2810 kg). The
clearance with bucket dumped is 103" (2610 mm) at max dump angle of 53
degrees. The front end loader is compatible with 63", 73" and 79"
buckets.
The backhoe with extendable boom has a working digging depth of 189"
(4800 mm), reach from swing pivot of 234" (5940 mm) at ground level, and
bucket digging force of 2875 lb (1305 kg). The backhoe can be equipped
with 16", 20", 30" and 36" buckets.
| Engine Model |
Case G188 |
| Engine Type |
4-Stroke, 4-cylinder liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
188 (3.10) |
| Engine Bore, in (mm) |
3.81 (97.0) |
| Engine Stroke, in (mm) |
4.13 (105.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
52.0 (38.8) |
| Rated Engine Speed, rpm |
2100 |
| Maximum Torque, Nm (ft-lb) |
188.5 (139) |
| Torque Speed, rpm |
1350 |
| Compression Ratio |
17.5:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Injection pump |
| Governor |
Mechanical, flyweight |
| Lubricating System Type |
Gear pump with floating intake screen |
| Cooling System Type |
Pressurized, thermostat controlled |
| Valve Clearance, in (mm) |
0.014 (0.36) |
| Fuel Tank Capacity, gal (L) |
22.0 (83.3) |
| Oil Capacity, qts (L) |
5.0 (4.7) |
| Coolant Capacity, qts (L) |
16.5 (15.6) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator |
| Engine Model |
Case G159 |
| Engine Type |
4-Stroke, 4-cylinder liquid-cooled gasoline |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
159 (2.60) |
| Engine Bore, in (mm) |
3.50 (89.0) |
| Engine Stroke, in (mm) |
4.13 (105.0) |
| Rated Engine Power, hp (kW) |
47.6 (35.5) |
| Rated Engine Speed, rpm |
1900 |
| Compression Ratio |
7.42:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Carburetor |
| Lubricating System Type |
Gear pump with floating intake screen |
| Valve Clearance, in (mm) |
0.014 (0.36) |
| Spark Plug |
Prestolite 18.8 |
| Spark Plug Gap, in (mm) |
0.025 (0.635) |
| Point Gap, in (mm) |
0.020 (0.508) |
| Fuel Tank Capacity, gal (L) |
22.0 (83.3) |
| Oil Capacity, qts (L) |
5.0 (4.7) |
| Coolant Capacity, qts (L) |
14.0 (13.2) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Generator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
41.7 (30.9) |
| PTO Speed, rpm |
540 |
| Transmission Type |
Dual Range Shuttle |
| Gearbox Type |
8F/8R, mechanical shuttle |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Oil Capacity, qts (L) |
15.0 (14.2) |
| Maximum Forward Speed, mph (kph) |
20.8 (33.5) |
| Maximum Reverse Speed, mph (kph) |
25.9 (41.7) |
| Transmission Type |
Triple-Range |
| Gearbox Type |
12F/3R, 4-speeds in 3 ranges |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
3 |
| Oil Capacity, qts (L) |
15.0 (14.2) |
| Maximum Forward Speed, mph (kph) |
22.0 (35.4) |
| Maximum Reverse Speed, mph (kph) |
5.5 (8.8) |
| Transmission Type |
Torque Converter |
| Gearbox Type |
4F/1R |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
1 |
| Oil Capacity, qts (L) |
15.0 (14.2) |
| Maximum Forward Speed, mph (kph) |
14.6 (23.5) |
| Maximum Reverse Speed, mph (kph) |
3.6 (5.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential manual disc/band |
| Front Tire Size (Std) |
7.50-16 |
| Rear Tire Size (Std) |
14.9-24 |
| Front Tire Size (Opt) |
6.50-16 |
| Rear Tire Size (Opt) |
13.6-24 |
| Front Tread, in (mm) |
53 (1340) |
| Rear Tread, in (mm) |
56-64 (1420-1620) |
| Hydraulic System Type |
Direct drive, gear pump type |
| Implement Pump Flow (Standard Clutch), gpm (Lpm) |
20.0 (75.7) |
| Implement Pump Flow (Torque Converter), gpm (Lpm) |
22.0 (83.3) |
| Hydraulic Pressure, Bar (psi) |
138 (2000) |
| Fluid Capacity (Tractor), gal (L) |
4.0 (15.0) |
| Fluid Capacity (Loader), gal (L) |
5.5 (20.8) |
| Fluid Capacity (Backhoe Loader), gal (L) |
11.0 (41.6) |
| Number of Standard Remote Valves |
2 |
| Wheelbase (Gas), in (mm) |
77.2 (1960) |
| Wheelbase (Diesel), in (mm) |
78.4 (1990) |
| Length (with Attachments), in (mm) |
259 (6570) |
| Height (Steering Wheel), in (mm) |
59.3 (1500) |
| Overall Width (Tractor), in (mm) |
77 (1950) |
| Overall Width (Loader and Backhoe), in (mm) |
81 (2050) |
| Ground Clearance, in (mm) |
15.5 (390) |
| Turning Radius, in (mm) |
118.6 (3000) |
| Weight (Gas, w/o Attachments), lb (kg) |
3280 (1485) |
| Weight (Diesel, w/o Attachments), lb (kg) |
3480 (1580) |
| Weight (Gas, with Torque Converter, w/o Attachments), lb (kg) |
3530 (1600) |
| Weight (Diesel, with Torque Converter, w/o Attachments), lb (kg) |
3730 (1690) |
| Weight (with Loader and Backhoe), lb (kg) |
9000 (4080) |
| Weight (with Loader and Extendable Boom Backhoe), lb (kg) |
9345 (4240) |
| Maximum Lift Height (to pin), in (mm) |
127 (3220) |
| Clearance, Dumped Bucket, in (mm) |
103 (2610) |
| Dump Reach, in (mm) |
26 (660) |
| Dump Angle, deg |
53 |
| Rollback Angle, deg |
45 |
| Breakout Force (at pin), lb (kg) |
6200 (2810) |
| Lift to Full Height (at pin), lb (kg) |
3000 (1360) |
| Bucket Width (Std), in (mm) |
63 (1600) |
| Bucket Width (Std), in (mm) |
73 (1850) |
| Bucket Width (Opt), in (mm) |
79 (2000) |
| Loader Weight, lb (kg) |
2000 (907) |
| Digging Depth (Standard Boom), in (mm) |
162 (4110) |
| Digging Depth (Extendable Boom, Retracted Stick), in (mm) |
170 (4310) |
| Digging Depth (Extendable Boom, Extended Stick), in (mm) |
189 (4800) |
| Reach from Swing Pivot (Standard Boom), in (mm) |
200.5 (5090) |
| Reach from Swing Pivot (Extendable Boom, Retracted Stick), in (mm) |
208.5 (5290) |
| Reach from Swing Pivot (Extendable Boom, Extended Stick), in (mm) |
234 (5940) |
| Loading Height (Standard Boom), in (mm) |
134 (3400) |
| Loading Height (Extendable Boom, Retracted Stick), in (mm) |
138 (3500) |
| Loading Height (Extendable Boom, Extended Stick), in (mm) |
153 (3880) |
| Swing Arc, deg |
190 |
| Maximum Transport Height, in (mm) |
196 (4960) |
| Bucket Digging Force, lb (kg) |
2875 (1305) |
