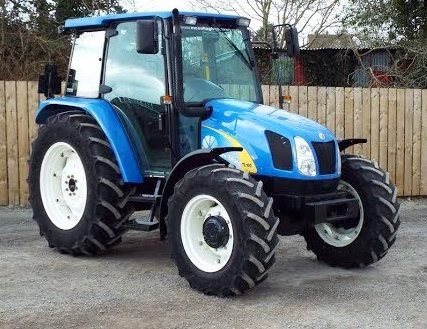

New Holland TL100A Tractor
The
New Holland TL100A is a TL-A Series utility tractor. This model was manufactured
from 2004 to 2008.
The components of New Holland TL100A driveline system: A NEF CNH
4-cylinder direct injection turbocharged intercooled diesel engine and
Shuttle Command transmission with 12 forward and 12 reverse gears, or
24x24 Dual Command Powershuttle transmission. A 4.5L engine output
rating is 100,1 hp (74,6 kW), and maximum torque is 370 Nm (274 lb-ft) at
1400 rev/min. The maximum forward speed - 24,9 mph (40 km/h).
The open center hydraulic system used a gear pump with a rated fluid
flow of 13,5 gal/min (51,1 l/min). The hydraulic system pressure is 198 bar
(2870 psi). The four-wheel drive models are equipped with 380/70R24
front tires and 480/70R34 rear tires. The 10.00x16 front tires and
480/70R34 rear tires are used for tractors with two-wheel drive. The
wheel base is 92,2" (2340 mm) for 2WD (4x2) models and 91,1" (2310 mm)
for 4WD (4x4) models. The New Holland TL100A is compatible with
the following attachments: 100FL loader with a lift capacity to
full height of 5582 lbs (2530 kg), or
120FL loader with a lift capacity to full height of 5093 lbs
(2310 kg).
| Engine Model |
NEF CNH |
| Engine Type |
4 stroke direct injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
274,0 (4,49) |
| Engine Bore, in (mm) |
4,09 (104,0) |
| Engine Stroke, in (mm) |
5,20 (132,0) |
| Aspiration |
Turbocharged |
| Intercooled |
Air cooled |
| Maximum Engine Power, hp (kW) |
100,1 (74,6) |
| Rated Engine Speed, rpm |
98,6 (73,5) |
| Rated Engine Speed, rpm |
2500 |
| Maximum Torque, Nm (ft-lbs) |
370 (274) |
| Torque Speed, rpm |
1400 |
| Emission Level |
Tier 2 |
| Fuel Injection to combustion chamber |
Direct injection |
| Fuel Tank Capacity, gal (L) |
33,6 (127,0) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| Clutch |
Electro-hydraulic |
| PTO Speeds, rpm |
540/540E/1000 |
| PTO / Engine Speeds, rpm |
540/2199 |
| PTO / Engine Speeds, rpm |
540E/1715 |
| PTO / Engine Speeds, rpm |
1000/2382 |
| Transmission Type |
Shuttle Command |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Maximum Speed (Forward), mph (kph) |
24,9 (40,0) |
| Transmission Type |
Dual Command Powershuttle |
| Gearbox Type |
24F/24R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
24 |
| Maximum Speed (Forward), mph (kph) |
24,9 (40,0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet disc |
| Trailer Brakes |
Hydraulic |
| Front Tire Size (2WD) |
10.00-16 |
| Rear Tire Size (2WD) |
480/70R34 |
| Front Tire Size (4WD) |
380/70R24 |
| Rear Tire Size (4WD) |
480/70R34 |
| Front Tread (2WD), in (mm) |
55,4-85,6 (1400-2170) |
| Front Tread (4WD), in (mm) |
56,1-84 (1420-2130) |
| Rear Tread, in (mm) |
60,4-84,1 (1530-2130) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
13,5 (51,1) |
| Steering Pump Flow (2WD/4WD) , gpm (Lpm) |
7,9 (30,0) / 10,4 (39,4) |
| Hydraulic Pressure, Bar (psi) |
198 (2872) |
| Number of Standard Remote Valves (Rear/Mid) |
3/2 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Mechanical draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
11155 (5059) |
| Wheelbase (2WD), in (mm) |
92,2 (2340) |
| Wheelbase (4WD), in (mm) |
91,1 (2310) |
| Length, in (mm) |
171,7 (4360) |
| Height, in (mm) |
96,6 (2450) |
| Overall Width, in (mm) |
79,2 (2010) |
| Ground Clearance (2WD), in (mm) |
14,8 (370) |
| Ground Clearance (4WD), in (mm) |
18 (450) |
| Turning Radius, in (mm) |
159 (4050) |
| Steering Angle, deg |
55 |
| Weight (2WD), lb (kg) |
8488 (3850) |
| Weight (4WD), lb (kg) |
9370 (4250) |
