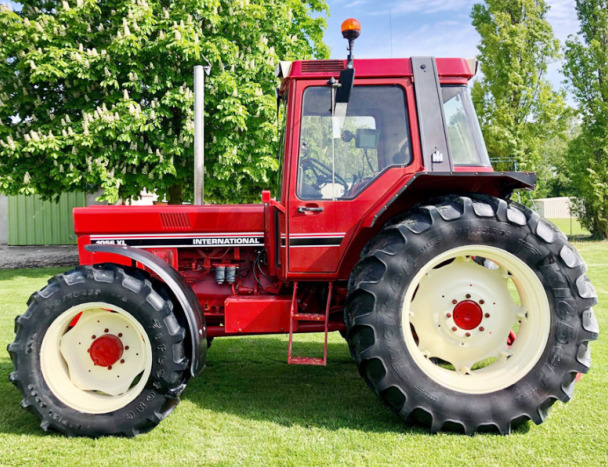

International Harvester 1056XL
The
International Harvester 1056 XL is a row-crop tractor. This model was
manufactured between 1985 and 1992. The International Harvester 1056XL powerline
system components: IH D358 4-cycle three-cylinder direct injection diesel engine
and 16x8 IH-Synchron transmission. A 358 cid (5.90 L) engine power rating is 105
Hp (78.3 kW), and maximum torque is 378 Nm (280 lb-ft) at 1400 rev/min. The
maximum travel speed (forward/reverse) is 18.3 mph (29.4 km/h) km/h and 9 mph
(14.5 km/h).
The open center hydraulic system used a gear pump with a rated fluid flow
of 11.1 gpm (42 lpm). The hydraulic pressure is 167 bar (2420 psi). The 2WD
models are equipped with 7.50x20 front tires and 18.4R38 rear tires. The
13.6R28 front tires and 18.4R38 rear tires are used for tractors with
4WD. The wheelbase is 102.5" (2590 mm) for 2-wheel drive models and
103.9" (2630 mm) for 4-wheel drive models.
Engine Model |
International Harvester D358 |
Engine Type |
4 Stroke, 6-cylinder diesel |
Number of Cylinders |
Six |
Displacement, cu in (L) |
358 (5.90) |
Engine Bore, in (mm) |
3.88 (98.0) |
Engine Stroke, in (mm) |
5.06 (129.0) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
105.0 (78.3) |
Rated Engine Speed, rpm |
2300 |
Maximum Torque, Nm (ft-lbs) |
378 (280) |
Torque Speed, rpm |
1400 |
Firing Order |
1-5-3-6-2-4 |
Fuel System |
Direct injection |
Fuel Tank Capacity, gal (L) |
37.0 (140.0) |
Oil Capacity, qts (L) |
13.2 (12.5) |
Coolant Capacity, qts (L) |
25.5 (27.0) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
92.0 (68.6) |
PTO Speed, rpm |
540/1000 |
Transmission Type |
IH-Synchron |
Gearbox Type |
16F/8R |
Number of Forward Gears |
16 |
Number of Reverse Gears |
8 |
Clutch Type |
Dry disc |
Maximum Forward Speed, mph (kph) |
18.3 (29.4) |
Maximum Reverse Speed, mph (kph) |
9.0 (14.5) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front steer |
Steering System |
Hydrostatic power |
Brakes Type |
Hydraulic wet disc |
Front Tire Size (2WD) |
7.50-20 |
Rear Tire Size (2WD) |
18.4-R38 |
Front Tire Size (4WD) |
13.6-R28 |
Rear Tire Size (4WD) |
18.4-R38 |
Front Track Width (2WD), in (mm) |
62-71 (1565-1800) |
Front Track Width (4WD), in (mm) |
64-75 (1620-1900) |
Rear Track Width, in (mm) |
67 (1700) |
Hydraulic System Type |
Open Center |
Hydraulic Pump Type |
Gear |
Implement Pump Flow, gpm (Lpm) |
11.1 (42.0) |
Hydraulic Pressure, Bar (psi) |
167 (2420) |
3-Point Hitch Category |
2 |
Standard Lift Capacity at lift pin, lb (kg) |
9170 (4160) |
Wheelbase (2WD), in (mm) |
102.5 (2590) |
Wheelbase (4WD), in (mm) |
103.9 (2630) |
Length (2WD), in (mm) |
165 (4190) |
Length (4WD), in (mm) |
168.3 (4260) |
Height (Cab), in (mm) |
109.4 (2770) |
Ground Clearance, in (mm) |
20 (505) |
Turning Radius (2WD), in (mm) |
200 (5050) |
Turning Radius (4WD), in (mm) |
210 (5320) |
Weight (2WD), lb (kg) |
9635 (4370) |
Weight (4WD), lb (kg) |
10475 (4750) |
