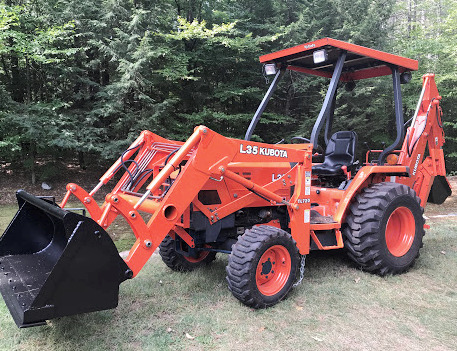

Kubota L35 Backhoe Loader
The
Kubota L35 is a 4-wheel drive backhoe loader. This model was manufactured
between 1999 and 2004. The Kubota L35 driveline components: a Kubota D1703
three-cylinder vertical indirect injection water-cooled diesel engine, and glide
shift automatic fully synchronized transmission with 8 forward and 8 reverse
gears.
A 100.5 cubic inches engine output power is 35.4 Hp (26.2 kW) at 2700
rpm. The maximum travel speed (forward/reverse): 16.6 mph (26.5 km/h)
and 15 mph (24.1 km/h). The open center hydraulic system includes a gear
pump with flow rate of 10 gpm (37.8 lpm). The hydraulic system pressure
is 176 bar (2560 psi).
The Kubota L35 is fitted with 27x10.5-15 front tires and 15.0-19.5 rear
tires. The TL720 loader has a lift capacity (at pivot pin) of 1653 lbs
(749 kg) to maximum height of 105.5 inches (2670 mm), and breakout force
of 1700 lbs (770 kg). A full dump clearance with a 44-degree maximum
dump angle is 76.8 inches (194 mm). The rated cycle times are 3.2
seconds raising to full height, and 1.9 seconds full bucket dumping. The
66" standard material bucket has a nominal heaped capacity of 13.4 cu.ft
(0.36 m3), and weight of 282 lbs (128 kg).
The BT900 backhoe is equipped with a 2-cylinder trunion boom swing
system. The backhoe has a bucket dig force of 4970 lbs (2255 kg),
maximum digging depth of 108.2 inches (2740 mm), and loading height of
80.8 inches (2050 mm). The backhoe can be equipped with 12", 16", 18",
24", 30" and 36" buckets.
Engine Model |
Kubota D1703 |
Engine Type |
4 cycle, vertical, indirect injection water-cooled diesel |
Number of Cylinders |
3 |
Displacement, cu in (L) |
100.51 (1.647) |
Engine Bore, in (mm) |
3.43 (87.0) |
Engine Stroke, in (mm) |
3.64 (92.4) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
34.5 (25.7) |
Maximum Engine Power, hp (kW) |
35.4 (26.2) |
Rated Engine Speed, rpm |
2700 |
Idle Speed rpm |
850-2800 |
Compression |
22.6:1 |
Firing Order |
1-2-3 |
Fuel Injection Pump |
Bosch type |
Fuel Tank Capacity, gal (L) |
9.2 (34.8) |
Direction of rotation |
Counter-clockwise |
Oil Capacity, qts (L) |
7.4 (7.0) |
Coolant Capacity, qts (L) |
6.3 (6.0) |
Electrical System Rating, Volts |
12 |
Starting System |
Electric starter |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
28.8 (21.5) |
PTO Speed, rpm |
540 |
Transmission Type |
Glide Shift (GST) |
Gearbox Type |
8F/8R, automatic fully synchronized |
Number of Forward Gears |
8 |
Number of Reverse Gears |
8 |
Clutch Type |
Dry disc |
Maximum Forward Speed, mph (kph) |
16.6 (26.5) |
Maximum Reverse Speed, mph (kph) |
15.0 (24.1) |
Drive Wheels |
4WD 4x4 |
Steering Configuration |
Front steer |
Steering System |
Hydrostatic |
Brake Type |
Wet disc |
Front Tire Size |
27x10.5-15 |
Rear Tire Size |
15.0-19.5 |
Hydraulic System Type |
Open center |
Hydraulic Pump Flow, gpm (Lpm) |
10.0 (37.0) |
Hydraulic Capacity, gal (L) |
10.0 (38.0) |
Hydraulic Pressure, Bar (psi) |
176 (2560) |
3-Point Hitch Category |
1 |
Draft Sensing or Lift Control |
Position control |
Lift Capacity 24" (600mm) behind pin, lb (kg) |
2200 (1000) |
Wheelbase, in (mm) |
66.9 (1690) |
Length, in (mm) |
223.2 (5660) |
Overall Width, in (mm) |
66.1 (1670) |
Height (Canopy), in (mm) |
91.5 (2315) |
Turning Radius, in (mm) |
118.5 (3000) |
Weight (with Loader and Backhoe), lb (kg) |
6000 (2720) |
Weight (without Backhoe), lb (kg) |
4800 (2180) |
Loader Model |
TL720 |
Maximum Lift Height, in (mm) |
105.5 (2670) |
Clearance Bucket Dumped, in (mm) |
76.8 (1945) |
Reach at Maximum Height, in (mm) |
25.8 (652) |
Maximum Dump Angle, deg |
44 |
Bucket Rollback Angle, deg |
45 |
Digging Depth, in (mm) |
6.7 (170) |
Lift Capacity at Maximum Height, lb (kg) |
1653 (749) |
Breakout Force, lb (kg) |
1700 (770) |
Bucket Width, in (mm) |
66 (1670) |
Bucket Capacity, cu.ft (cu.m) |
13.4 (0.36) |
Loader Weight, lb (kg) |
1200 (545) |
Bucket Weight, lb (kg) |
282 (128) |
Backhoe Model |
BT900 |
Frame Mounted |
Quick disconnect system |
Boom Swing System |
2-cylinder trunion type |
Transport Height, in (mm) |
85.3 (2160) |
Maximum Digging Depth, in (mm) |
108.2 (2740) |
Loading Height, in (mm) |
80.8 (2050) |
Swing Arc, deg |
180 |
Bucket Force, lb (kg) |
4970 (2255) |
Bucket Width (Standard), in (mm) |
18 (455), 24 (605) |
Bucket Width (Optional), in (mm) |
12 (300), 16 (405), 30 (760), 36 (910) |
Backhoe Weight, lb (kg) |
1197 (544) |
