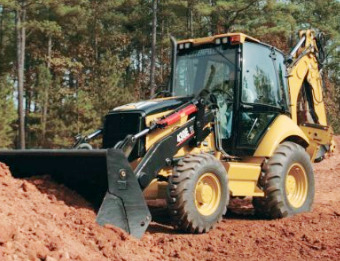

Cat 430E Backhoe Loader
The
Caterpillar 430E backhoe loader was manufactured from 2006 to 2016. The Cat 430E
is powered by 268 cubic inches (4.4 L) Caterpillar 3054C DIT 4-cylinder direct
injection turbocharged diesel engine with a maximum power of 101 hp (75 kW) at
2200 rev/min.
The Cat 430E is fitted with two transmission options: 5x3 auto-shift
transmission, or power shuttle transmission with 4 forward and 4 reverse
gears. Max. forward and revers speed - 26.8 mph (43.2 km/h).
The closed center load sensing hydraulic system includes an axial piston
pump with rated capacity of 43 gpm (163 lpm). The hydraulic system
pressure is 249 bar (3611 psi). The 4WD models are equipped with
12.5/80-18 front tires and 21L-24 rear tires. The 11L-16 front tires and
19.5L-24 rear tires are used for 2WD models.
The front end loader has a lift capacity (at bucket pin) of 6323 lbs
(2870 kg) to max height of 11 ft 1 in (3368 mm), and breakout force
(bucket on ground) of 10130 lbs (4605 kg). The clearance with bucket
dumped is 8 ft 4 in (2550 mm) at maximum dump angle of 44 degrees. The
loader has a 95" (2400 mm) bucket with a rated capacity of 33.4 cu.ft
(0.95 m3).
The backhoe with extendable dipper arm has a maximum depth of 19 ft 6 in
(5951 mm), and 2-ft digging depth of 19 ft 5 in (5925 mm). The digging
force for bucket cylinder is 15680 lbs (7127 kg), and digging force for
dipper cylinder is 7197 lbs (3270 kg). The reach from swing pivot
(ground line) is 23 ft 9 in (7247 mm). The backhoe is compatible with
12", 16", 18", 24", 30", 36" standard material buckets, 12", 18", 24",
30", 36" heavy-duty rock buckets, and 18", 24", 30", 36" soil excavation
buckets.
| Engine Model |
Caterpillar 3054C DIT |
| Engine Type |
Four-cylinder, direct injection turbocharged diesel |
| Number of Cylinders |
4, In-Line |
| Displacement, cu in (L) |
268 (4.40) |
| Engine Bore, in (mm) |
4.13 (105.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
101.0 (75.0) |
| Rated Engine Power, hp (kW) |
98.0 (73.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (lb-ft) |
405 (299) |
| Torque Speed, rpm |
1400 |
| Compression |
16.2:1 |
| Emission |
Tier 2 |
| Fuel System |
Direct Injection |
| Rotation |
Counterclockwise |
| Air Cleaner |
Dry-type axial seal |
| Fuel Tank Capacity, gal (L) |
38.0 (144.0) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
17.6 (16.7) |
| Electrical System Rating, Volts |
12 |
| Battery Rating |
880 CCA |
| Transmission Type (Std) |
Power Shuttle |
| Gearbox Type |
4F/4R, Full synchromesh |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter |
Single-stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity, qts (L) |
19.1 (18.0) |
| Maximum Forward Speed, mph (kph) |
26.8 (43.2) |
| Maximum Reverse Speed, mph (kph) |
26.8 (43.2) |
| Transmission Type (Opt) |
5F/3R, Auto Shift |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
3 |
| Torque Converter |
Single-stage |
| Oil Capacity, qts (L) |
20.0 (19.0) |
| Maximum Forward Speed, mph (kph) |
25.8 (41.3) |
| Maximum Reverse Speed, mph (kph) |
16.8 (27.1) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Cylinder |
One, Double-acting |
| Steering Cylinder Bore, in (mm) |
2.57 (65.0) |
| Steering Cylinder Stroke, in (mm) |
4.71 (120.0) |
| Steering Cylinder Rod Diameter, in (mm) |
1.42 (36.0) |
| Service Brakes |
Inboard, oil-immersed, multiple disc |
| Parking Brake |
Mechanical, independent |
| Front Tire Size (2WD) |
11L-16 12PR F3 |
| Rear Tire Size (2WD) |
19.5L-24 12PR R4 |
| Front Tire Size (4WD) |
12.5/80-18 10PR |
| Rear Tire Size (4WD) |
21L-24 16PR |
| Front Tread, in (mm) |
74.3 (1880) |
| Rear Tread, in (mm) |
68.3 (1727) |
| Hydraulic System Type |
Closed center load sensing |
| Hydraulic Pump Type |
Variable displacement, axial piston |
| Hydraulic Pump Flow, gpm (Lpm) |
43.0 (163.0) |
| Hydraulic Pressure, Bar (psi) |
249 (3611) |
| Hydraulic System Capacity, gal (L) |
21.0 (79.0) |
| Valves Type |
Flow Sharing |
| Wheelbase |
87 in (2200 mm) |
| Transport Length |
24 ft 5 in (7424 mm) |
| Overall Length, (Loader on ground) |
24 ft 2 in (7366 mm) |
| Transport Height |
12 ft 8 in (3866 mm) |
| Height (Cab) |
111.4 in (2819 mm) |
| Height (Exhaust) |
108.9 in (2754 mm) |
| Overall Width |
96.4 in (2438 mm) |
| Ground Clearance |
12.6 in (320 mm) |
| Turning Radius |
13 ft 5 in (4090 mm) |
| Weight (2WD) |
16050 lbs (7295 kg) |
| Weight (4WD) |
16410 lbs (7460 kg) |
| Weight (Maximum) |
23540 lbs (10700 kg) |
| Bucket Hinge Pin, Maximum Height (2WD) |
10 ft 10 in (3296 mm) |
| Bucket Hinge Pin, Maximum Height (4WD) |
11 ft 1 in (3368 mm) |
| Dump Angle at Full Height |
44 degrees |
| Dump Clearance at Full Height |
8 ft 4 in (2550 mm) |
| Dump Reach at Full Height |
32.4 in (819 mm) |
| Maximum Bucket Rollback at Ground Level |
40 degrees |
| Digging Depth |
5.8 in (146 mm) |
| Maximum Grading Angle |
108 degrees |
| Grill to Bucket Cutting Edge |
5 ft 1 in (1551 mm) |
| Maximum Operating Height |
13 ft 11 in (4237 mm) |
| Lift Capacity at Maximum Height |
6323 lbs (2870 kg) |
| Breakout Force |
10130 lbs (4605 kg) |
| Bucket Width |
95 in (2400 mm) |
| Bucket Capacity |
33.4 cu.ft (0.95 m3) |
| Loader Weight |
1015 lbs (459 kg) |
| Maximum Digging Depth |
15 ft 5 in (4698 mm) |
| Digging Depth, 24 in (610 mm) Flat Bottom |
15 ft 4 in (4672 mm) |
| Reach From Swing Pivot at Ground Line |
19 ft 10 in (6049 mm) |
| Loading Height |
13 ft 1 in (3956 mm) |
| Loading Reach |
5 ft 10 in (1774 mm) |
| Maximum Operating Height |
19 ft 9 in (6009 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation |
205 degrees |
| Stabilizer Spread (Operating Position) |
10 ft 10 in (3310 mm) |
| Stabilizer Spread (Transport Position) |
7 ft 7 in (2322 mm) |
| Digging Force (Bucket Cylinder) |
15892 lbs (7224 kg) |
| Digging Force (Crowd Cylinder) |
9940 lbs (4518 kg) |
| Backhoe (Extendable Stick) |
| Maximum Digging Depth |
19 ft 6 in (5951 mm) |
| Digging Depth, 2-ft (610 mm) Flat Bottom |
19 ft 5 in (5925 mm) |
| Reach From Swing Pivot at Ground Line |
23 ft 9 in (7247 mm) |
| Loading Height |
14 ft 10 in (4520 mm) |
| Loading Reach |
9 ft 7 in (2916 mm) |
| Maximum Operating Height |
22 ft 11 in (6990 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation |
205 degrees |
| Stabilizer Spread (Operating Position) |
10 ft 10 in (3310 mm) |
| Stabilizer Spread (Transport Position) |
7 ft 7 in (2322 mm) |
| Digging Force (Bucket Cylinder) |
15680 lbs (7127 kg) |
| Digging Force (Crowd Cylinder) |
7197 lbs (3270 kg) |
