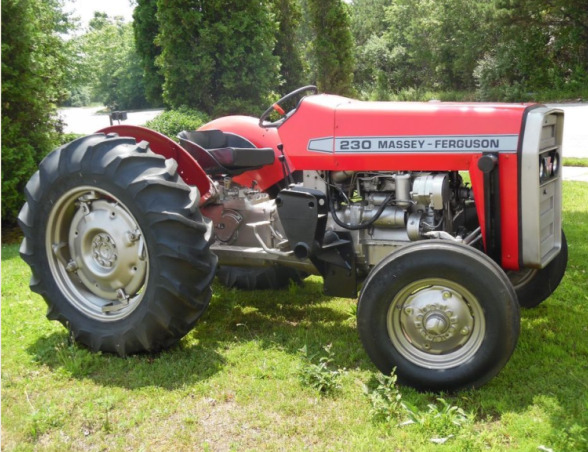

Massey Ferguson 230 Tractor
The
Massey Ferguson 230 utility tractor was manufactured by Massey Ferguson from 1976 to 1983. The
MF 230 can be equipped with a Perkins AD3.152 3-cylinder direct
injection diesel engine, or Continental Z145 4-cylinder liquid-cooled gasoline
engine. The rated power of both motors is 38 Hp (28.3 kW).
The transmission consists of a dry single disc clutch and gearbox with 6
forward and 2 reverse gears. The max travel speed (forward or reverse):
14.5 mph (23.3 kph) / 7.4 mph (11.9 kph). The open center hydraulic
system used a gear pump with a rated flow of 4.5 gpm (17 lpm). The hydraulic system pressure is 3000 psi.
The Massey Ferguson 230 tractor fitted with 6.00x16 front tires
and 12.4x28 rear tires. The operating weight is 3840 lbs (1740 kg) for
gasoline models and 4000 lbs (1815 kg) for diesel models. The Massey
Ferguson 175 is equipped with MF 236 loader with a lifting capacity to
maximum height of 2500 lbs (1134 kg), and breakout force of 3250 lbs
(1474 kg).
| Engine Model |
Perkins AD3.152 |
| Engine Type |
4-Stroke, 3-cylinder, direct injection diesel |
| Number of Cylinders |
3 |
| Displacement, cu.in (L) |
152 (2.50) |
| Engine Bore, in (mm) |
3.60 (91.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
38.0 (28.3) |
| Rated Engine Speed, rpm |
2000 |
| Compression |
18.5:1 |
| Firing Order |
1-2-3 |
| Fuel System Type |
Direct injection |
| Fuel Injection Pump |
CAV DPA |
| Fuel Filter |
Paper element |
| Oil Pump Type |
Rotor type |
| Air Cleaner |
Dual dry element |
| Fuel Tank Capacity, gal (L) |
14.0 (53.0) |
| Coolant Capacity, qts (L) |
10.5 (9.9) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| Alternator Rating, Amps |
37 |
| Engine Model |
Continental Z145 |
| Engine Type |
4 Stroke, 4-cylinder liquid-cooled gasoline |
| Number of cylinders |
4 |
| Displacement, cu.in (L) |
153 (2.50) |
| Engine Bore, in (mm) |
3.38 (86.0) |
| Engine Stroke, in (mm) |
4.07 (103.0) |
| Maximum Power, kw (hp) |
38.0 (28.3) |
| Rated Speed, rpm |
2000 |
| Compression ratio |
7.4:1 |
| Firing order |
1-3-4-2 |
| Fuel System Type |
Carburetor |
| Fuel Delivery |
Fixed Jet Carburetor |
| Ignition Timing |
8 deg BTDC |
| Ignition Point Gap, in (mm) |
0.017-0.022 (0.45-0.55) |
| Spark Plug Gap, in (mm) |
0.025 (0.63) |
| Spark Plug |
Champion RD-16 / AC-85S |
| Fuel Tank Capacity, gal (L) |
14.0 (53.0) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Coolant Capacity, qts (L) |
10.5 (9.9) |
| Electrical System Rating, Volts |
12, Negative Ground |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
34.0 (25.4) |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/1700 |
| Transmission Type |
Gear |
| Gearbox Type |
6F/2R |
| Number of Forward Speed |
6 |
| Number of Reverse Speed |
2 |
| Clutch |
Dry disc |
| Maximum Forward Speed, mph (kph) |
14.5 (23.3) |
| Maximum Reverse Speed, mph (kph) |
7.4 (11.9) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System (Std) |
Manual |
| Steering System (Opt) |
Power |
| Brakes Type |
Mechanical drum |
| Front Tire Size (Std) |
6.00x16 |
| Rear Tire Size (Std) |
12.4x28 |
| Front Tire Size (Opt) |
7.50x10 |
| Rear Tire Size (Opt) |
14.9x24 |
| Front Track Width, in (mm) |
48-72 (1210-1820) |
| Rear Track Width, in (mm) |
52-76 (1320-1930) |
| Hydraulic System Type |
Open center |
| Implement Pump Type, gpm (Lpm) |
Gear |
| Implement Pump Flow, gpm (Lpm) |
4.5 (17.0) |
| Steering Pump Flow, gpm (Lpm) |
5.0 (19.0) |
| Hydraulic Pressure, Bar (psi) |
207 (3000) |
| Hydraulic Fluid Capacity, gal (L) |
8.0 (30.3) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
3120 (1415) |
| Wheelbase, in (mm) |
72.4 (1830) |
| Length, in (mm) |
116.1 (2940) |
| Height (Steering Wheel), in (mm) |
58.1 (1470) |
| Overall Width, in (mm) |
61.8 (1560) |
| Shipping Weight (Gasoline), lb (kg) |
3200 (1450) |
| Shipping Weight (Diesel), lb (kg) |
3450 (1565) |
| Operating Weight (Gasoline), lb (kg) |
3840 (1740) |
| Operating Weight (Diesel), lb (kg) |
4000 (1815) |
