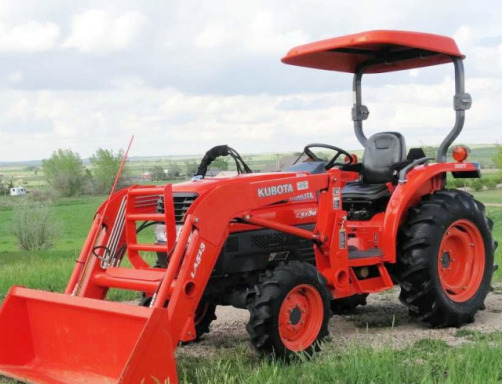

Kubota L3130 Tractor

The Kubota L3130 is a L30 series compact utility tractor. This model was manufactured from 2003 to 2007. The components of Kubota L3130 powerline system: Kubota D1503 4-cycle vertical 4-cylinder indirect injection diesel engine and FST sync shuttle fully synchronized transmission with 8 forward and 8 reverse gears.

A 91.5 cubic inches diesel engine power rating is 31 Hp (23 kW) and max. torque is 103 Nm (76 lb-ft) at 1800 rpm. The maximum forward speed - 19.2 mph (31 km/h), max. reverse speed - 16.0 mph (25.8 km/h). The open center hydraulic system includes a gear pump with a flow of 31.5 liters per minute (8.3 gpm).

The hydraulic pressure is 177 bar (2560 psi). The 4-wheel drive models are equipped with 7.2x16 front tyres and 12.4x24 rear tyres. The 6.0x16 front tyres and 12.4x24 rear tyres fit two wheel drive tractors. The wheelbase is 71.3" (1810 mm) for 2WD (4x2) tractors and 71.1" (1800 mm) for 4WD (4x4) tractors. Compatible front end loaders for the Kubota L3130 tractor: LA723 loader with a lift capacity to max height of 1870 lbs (848 kg), or LA513 loader with a lift capacity to max height of 1345 lbs (610 kg).

Engine
Engine Model Kubota D1503
Engine Type 4-cycle, vertical, 3-cylinder indirect injection diesel
Number of Cylinders 3
Displacement, cu in (L) 91.5 (1.499)
Engine Bore, in (mm) 3.30 (83.0)
Engine Stroke, in (mm) 3.60 (92.4)
Aspiration Natural
Rated Engine Power, hp (kW) 31.0 (23.1)
Rated Engine Speed, rpm 2700
Maximum Torque, Nm (ft-lbs) 103 (76)
Torque Speed, rpm 1800
Compression Ratio 23:1
Firing Order 1-2-3
Fuel System Indirect injection
Lubricating system Forced lubrication by trochoidal pump
Cooling system Pressurized
Fuel Tank Capacity, gal (L) 10.6 (40.0)
Oil Capacity, qts (L) 6.0 (5.7)
Coolant Capacity, qts (L) 6.3 (6.0)
Electrical System Rating, Volts 12
Alternator Rating, Amps 40

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 25.5 (19.0)
Rear PTO Speed, rpm 540/750
Rear PTO / Engine Speed, rpm 540/2550, 750/2250
Mid PTO Optional
Mid PTO Speed, rpm 2000

Transmission
Transmission Type FST Sync Shuttle
Gearbox Type 8F/8R, Fully synchronized
Number of Forward Gears 8
Number of Reverse Gears 8
Clutch Type Dry type single stage
Oil Capacity, qts (L) 44.5 (42.0)
Maximum Forward Speed, mph (kph) 19.2 (31.0)
Maximum Reverse Speed, mph (kph) 16.0 (25.8)


Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front steer
Steering System Hydrostatic power
Brakes Type Wet disc
Front Tire Size (2WD) 6.0x16
Front Tire Size (4WD) 7.2x16
Rear Tire Size 12.4x24
Front Tread, in (mm) 45.3 (1150)
Rear Tread, in (mm) 43.7-54.5 (1110-1385)

Hydraulic System
Hydraulic System Type Open Center
Implement Pump Flow, gpm (Lpm) 8.3 (31.5)
Steering Pump Flow, gpm (Lpm) 4.9 (18.5)
Hydraulic Pressure, Bar (psi) 177 (2560)
Number of Standard Remote Valves 3
3-Point Hitch Category 1
Draft Sensing or Lift Control Position control
Standard Lift Capacity 24-in (600 mm) behind pin, lb (kg) 2650 (1200)
Standard Lift Capacity at lift pin, lb (kg) 3750 (1700)
Upper Link Pin Diameter, in (mm) 0.75 (19.0)
Lower Link Pin Diameter, in (mm) 0.88 (22.4)
Lower Hitch Spacing, in (mm) 28 (718)

Dimensions and Weight
Wheelbase (2WD), in (mm) 71.3 (1810)
Wheelbase (4WD), in (mm) 71.1 (1800)
Overall Length (2WD), in (mm) 119.1 (3020)
Overall Length (4WD), in (mm) 114.8 (2910)
Height (ROPS), in (mm) 90.7 (2300)
Overall Width, in (mm) 59.8 (1510)
Ground Clearance, in (mm) 14.2 (360)
Turning Radius, in (mm) 106.7 (2700)
Weight (2WD), lb (kg) 3120 (1415)
Weight (4WD), lb (kg) 3305 (1500)
