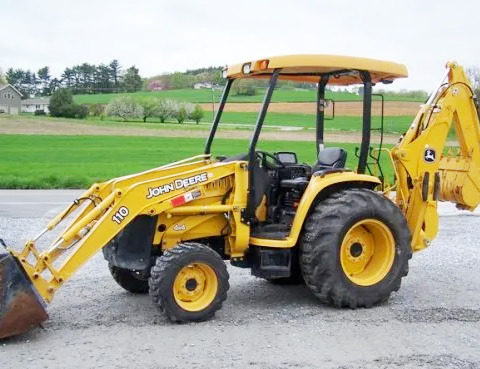

John Deere 110 Backhoe Loader
The
John Deere 110 backhoe loader was manufactured between 2000 and 2012. The John
Deere 110 TLB is powered by 133.6 cu.in (2.2L) Yanmar 4TNV88 4-cylinder 8-valve
liquid-cooled diesel engine with a rated power of 43.3 Hp (32.4 kW), or 121.8
cu.in (2L) Yanmar 4TNE84 4-cylinder direct injection liquid-cooled diesel engine
with a rated power of 43 Hp (32.1 kW).
The John Deere 110 backhoe loader is equipped with a 3-range hydrostatic
transmission with infinite forward and reverse gears. The max forward
speed - 16.2 mph (26.1 km/h), max reverse speed - 16.2 mph (26.1 km/h).
The open center hydraulic system used gear pumps with fluid flow rate of
16.3 gpm (61.5 lpm) for backhoe and 12.2 gpm (46.1 lpm) for loader. The
hydraulic pressure is 3000 psi (207 bar). The John Deere 110 is fitted
with a 10x16.5 front tyres and 17.5Lx24 rear tyres. The wheel base is
60" (1520 mm).
The loader’s max lift height is 115" (2920 mm) at pin and a clearance
with bucket dumped is 88" (2235 mm). The lift capacity is 2727 lbs (1237
kg) at maximum height (bucket pin), and boom breakout force is 3965 lbs
(1800 kg). The 72" (1825 mm) standard material bucket has a nominal
heaped capacity of 17.5 cu.ft (0.5 m3).
The backhoe has a bucket dig force of 5723 lbs (2600 kg) and dipperstick
digging force of 3764 lbs (1710 kg). The max digging depth is 121" (3070
mm), and a reach from swing pivot is 160" (4065 mm) at ground level. The
backhoe is available with 12" (305 mm), 18" (455 mm), or 24" (610 mm)
buckets.
Engine Model |
Yanmar 4TNV88 |
Engine Type |
Four-cylinder 8-valve liquid-cooled diesel |
Number of Cylinders |
4 |
Displacement, cu in (L) |
133.6 (2.19) |
Engine Bore, in (mm) |
3.47 (88.0) |
Engine Stroke, in (mm) |
3.54 (90.0) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
43.3 (32.4) |
Rated Engine Speed, rpm |
2600 |
High Idle Speed, rpm |
3200 |
Compression Ratio |
19.0:1 |
Firing Order |
1-3-4-2 |
Fuel System |
Direct injection |
Fuel Injection Pump |
Mechanical |
Fuel Filter |
Replaceable element |
Lubrication System |
Forced with trochoid pump |
Cooling System |
Liquid-cooled with radiator |
Air Cleaner |
Dry, replaceable dual element |
Valve Clearance (Intake), in (mm) |
0.006-0.010 (0.15-0.25) |
Valve Clearance (Exhaust), in (mm) |
0.010-0.014 (0.25-0.35) |
Fuel Tank Capacity, gal (L) |
15.3 (58.0) |
Engine Oil Capacity, qt (L) |
5.0 (4.7) |
Cooling System Capacity, qt (L) |
10.0 (9.5) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Alternator Rating, Amps |
40/55 |
Engine Model |
Yanmar 4TNE84 |
Engine Type |
Vertical four-stroke water-cooled diesel |
Number of Cylinders |
4 |
Displacement, cu in (L) |
121.8 (2.00) |
Engine Bore, in (mm) |
3.31 (84.0) |
Engine Stroke, in (mm) |
3.54 (90.0) |
Aspiration |
Naturally aspirated |
Rated Engine Power, hp (kW) |
43.0 (32.1) |
Rated Engine Speed, rpm |
2600 |
Idle Speed, rpm |
1050-2800 |
Compression Ratio |
18.0:1 |
Firing Order |
1-3-4-2 |
Fuel System |
Direct injection |
Fuel Pump |
In-line with electric shutoff |
Fuel Filter |
Replaceable element |
Lubrication System |
Forced with trochoid pump |
Cooling System |
Liquid-cooled with radiator |
Air Cleaner |
Dry type with safety element |
Fuel Tank Capacity, gal (L) |
15.3 (58.0) |
Engine Oil Capacity, qt (L) |
5.2 (4.9) |
Cooling System Capacity, qt (L) |
9.2 (8.7) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Alternator Rating, Amps |
40 |
PTO Operational Type |
Independent |
PTO Horsepower (4TNV88 Engine), hp (kW) |
33.3 (24.8) |
PTO Horsepower (4TNE84 Engine), hp (kW) |
33.0 (24.5) |
PTO Clutch |
Wet Disc |
PTO Speed, rpm |
540 |
Transmission Type |
Hydrostatic |
Number of Forward Gears |
Infinite |
Number of Reverse Gears |
Infinite |
Number Of Ranges |
3 |
Oil Capacity, qts (L) |
39.2 (37.0) |
Maximum Forward Speed, mph (kph) |
16.2 (26.1) |
Maximum Reverse Speed, mph (kph) |
16.2 (26.1) |
Drive Wheels |
4WD 4x4 |
Steering Configuration |
Front steer |
Steering System |
Power, cylinder-assisted |
Brakes Type |
Wet Disc |
Front Tire Size |
10.0x16.5 |
Rear Tire Size |
17.5Lx24 |
Hydraulic System Type |
Open Center |
Implement Pump Flow (Loader), gpm (Lpm) |
12.2 (46.1) |
Implement Pump Flow (Backhoe), gpm (Lpm) |
16.3 (61.5) |
Steering Pump Flow, gpm (Lpm) |
6.0 (22.5) |
Hydraulic Pressure, Bar (psi) |
207 (3000) |
Hydraulic Fluid Capacity, gal (L) |
15.0 (57.0) |
3-Point Hitch Category |
1 |
Standard Lift Capacity at 24" (610mm) behind pin, lb (kg) |
2500 (1135) |
Standard Lift Capacity at pin, lb (kg) |
3130 (1420) |
Wheelbase, in (mm) |
60 (1520) |
Length (with Loader/Backhoe), in (mm) |
296 (7515) |
Height, in (mm) |
101 (2565) |
Overall Width, in (mm) |
86 (2185) |
Turning Radius (with Brakes), in (mm) |
124 (3150) |
Turning Radius (w/o Brakes), in (mm) |
144 (3660) |
Weight (Tractor Only), lb (kg) |
5165 (2350) |
Weight (with Loader/Backhoe), lb (kg) |
7600 (3450) |
Bucket Width, in (mm) |
72 (1825) |
Maximum Lift Height to Pivot Pin, in (mm) |
115 (2920) |
Clearance with Bucket Level, in (mm) |
105 (2665) |
Clearance with Bucket Dumped, in (mm) |
88 (2235) |
Reach at Maximum Lift Height, in (mm) |
25 (635) |
Reach with Bucket on Ground, in (mm) |
73 (1850) |
Maximum Dump Angle, deg |
45 |
Digging Depth, in (mm) |
6 (152) |
Maximum Rollback Angle, deg |
45 |
Overall Height in Carrying Position, in (mm) |
62 (1575) |
Lift Capacity to Maximum Height at Pivot Pin, lb (kg) |
2727 (1237) |
Lift Capacity to 1.5m (59") at Pivot Pin, lb (kg) |
3135 (1421) |
Breakout Force at Pivot Pin, lb (kg) |
3965 (1800) |
Breakout Force at 0.5m (19.7") Forward of Pivot Pin, lb (kg) |
3135 (1421) |
Bucket Rollback Force at Maximum Height, lb (kg) |
2970 (1350) |
Bucket Rollback Force at 1.5m (59") Lift Height, lb (kg) |
4640 (2110) |
Bucket Rollback Force at Ground Level, lb (kg) |
4855 (2205) |
Loader Weight, lb (kg) |
830 (375) |
Operating Height Fully Raised, in (mm) |
158 (4015) |
Overall Transport Length, in (mm) |
245.5 (6235) |
Backhoe Transport Height, in (mm) |
107.3 (2725) |
Backhoe Bucket Widths, in (mm) |
12, 18, 24 (305, 455, 610) |
Maximum Digging Depth, in (mm) |
121 (3070) |
2-ft Flat Digging Depth, in (mm) |
119 (3020) |
8-ft Flat Digging Depth, in (mm) |
102.2 (2595) |
Reach from Swing Pivot, in (mm) |
160 (4065) |
Loading Height, in (mm) |
101.3 (2570) |
Loading Reach, in (mm) |
65.1 (1655) |
Stabilizer Spread (Operating), in (mm) |
98 (2490) |
Stabilizer Spread (Transport), in (mm) |
66.1 (1640) |
Boom Swing Arc, deg |
180 |
Backhoe Bucket Rotation, deg |
190 |
Stabilizer Arm Leveling Angle, deg |
12 |
Stabilizer Angle Rearward, deg |
18 |
Bucket Cylinder Digging Force, lb (kg) |
5723 (2600) |
Crowd Cylinder Digging Force, lb (kg) |
3764 (1710) |
Maximum Boom Lifting Capacity at Ground, lb (kg) |
1216 (550) |
Stabilizer Lift Capacity at Ground, lb (kg) |
9950 (4513) |
Backhoe Weight, lb (kg) |
1755 (795) |
