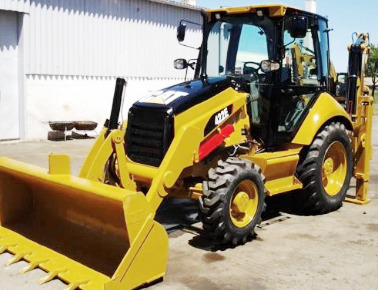

Cat 422E Backhoe Loader
The
Caterpillar 422E backhoe loader was manufactured from 2006 to 2016. The Cat 422E
drivetrain consists of Caterpillar 3054C DINA 4-stroke 4-cylinder liquid cooled
diesel engine, and 4x4 Power Shuttle transmission with full synchromesh gearbox
and single-stage torque converter.
A 268 cu.in (4.4L) engine has a cylinder bore of 4.13" (105 mm), piston
stroke of 5" (127 mm), rated power of 75 hp (56 kW), and maximum torque
of 386 Nm (285 lb-ft) at 1400 rpm. The maximum travel speed (forward or
reverse): 24.8 mph (40 km/h).
The closed center load sensing hydraulic system used a variable
displacement piston pump with a flow of 33.1 gal/min (125 l/min). The
hydraulic system pressure is 227 bar (3292 psi). The Caterpillar 422E is
fitted with 12.5/80x18 or 340/80R18 (Radial) front tires and 16.9x28 or
16.9R28 (Radial) rear tires. The wheel base is 87 in (2200 mm).
The loader has a lift capacity (at pin) of 5342 lbs (2423 kg) to max
height of 130.4" (3314 mm), and bucket's breakout force of 8767 lbs
(3985 kg). The bucket dump clearance with a 43-degree max dump angle is
103.2" (2621 mm). The 95" (2400 mm) standard material bucket has a rated
capacity of 29.2 cu.ft (0.84 m3).
The backhoe with extendable stick has a bucket dig force of 11465 lbs
(5211 kg) and dipperstick digging force of 5395 lbs (2452 kg). The max
digging depth is 19 ft 3 in (5887 mm), and overall reach from swing
pivot is 21 ft 6 in (6610 mm) at ground level. The backhoe can be fitted
with a 16", 20", 24", 30", and 36" buckets.
| Engine Model |
Caterpillar 3054C DINA |
| Engine Type |
Four-stroke, 4-cylinder, liquid cooled diesel |
| Number of Cylinders |
4, In-Line |
| Displacement, cu in (L) |
268 (4.40) |
| Engine Bore, in (mm) |
4.13 (105.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Naturally aspirated |
| Maximum Engine Power, hp (kW) |
76.0 (57.0) |
| Rated Engine Power, hp (kW) |
75.0 (56.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (lb-ft) |
386 (285) |
| Torque Speed, rpm |
1400 |
| Compression |
16.2:1 |
| Emission |
Tier 2 |
| Fuel System |
Direct Injection |
| Rotation |
Counterclockwise |
| Air Cleaner |
Dry-type axial seal |
| Fuel Tank Capacity, gal (L) |
38.0 (145.0) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
23.5 (22.0) |
| Electrical System Rating, Volts |
12 |
| Battery Rating |
880 CCA |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
4F/4R, Full synchromesh |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter |
Single-stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity, qts (L) |
19.6 (18.5) |
| Maximum Forward Speed, mph (kph) |
24.8 (40.0) |
| Maximum Reverse Speed, mph (kph) |
24.8 (40.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Cylinder |
One, Double-acting |
| Steering Cylinder Bore, in (mm) |
2.56 (65) |
| Steering Cylinder Stroke, in (mm) |
4.72 (120) |
| Steering Cylinder Rod Diameter, in (mm) |
1.42 (36) |
| Service Brakes |
Fully enclosed, hydraulic, multiple discs |
| Parking Brake |
Mechanical, independent |
| Front Tire Size |
12.5/80x18 10PR |
| Rear Tire Size |
16.9x28 10PR |
| Front Tire Size (Radial) |
340/80R18 |
| Rear Tire Size (Radial) |
16.9R28 |
| Front Tread, in (mm) |
72.2 (1826) |
| Rear Tread, in (mm) |
67.7 (1713) |
| Hydraulic System Type |
Closed center load sensing |
| Hydraulic Pump Type |
Closed center load sensingVariable displacement piston pump |
| Hydraulic Pump Flow, gpm (Lpm) |
33.1 (125.0) |
| Hydraulic Pressure, Bar (psi) |
227 (3292) |
| Hydraulic System Capacity, gal (L) |
21.5 (80.5) |
| Valves Type |
Pressure-compensated |
| Wheelbase |
87 in (2200 mm) |
| Transport Length |
19 ft 1 in (5830 mm) |
| Overall Length, (Loader on ground) |
18 ft 9 in (5785 mm) |
| Transport Height |
12 ft 2 in (3736 mm) |
| Height (Cab) |
113.2 in (2863 mm) |
| Height (Exhaust) |
109.8 in (2779 mm) |
| Overall Width |
93.6 in (2368 mm) |
| Ground Clearance |
14.2 in (358 mm) |
| Turning Radius |
13 ft 6 in (4100 mm) |
| Weight (Operating) |
16810 lbs (7640 kg) |
| Weight (Maximum) |
22460 lbs (10200 kg) |
| Bucket Hinge Pin, Max Height |
10 ft 8 in (3314 mm) |
| Dump Angle at Full Height |
43 degrees |
| Dump Clearance at Full Height |
8 ft 6 in (2621 mm) |
| Dump Reach at Full Height |
33.3 in (843 mm) |
| Maximum Bucket Rollback at Ground Level |
39 degrees |
| Digging Depth |
3.6 in (91 mm) |
| Maximum Grading Angle |
109 degrees |
| Maximum Operating Height |
13 ft 8 in (4211 mm) |
| Lift Capacity at Maximum Height |
5342 lbs (2423 kg) |
| Breakout Force |
8767 lbs (3985 kg) |
| Bucket Width, in (mm) |
95 (2400) |
| Bucket Capacity, cu.ft (m3) |
29.2 (0.84) |
| Loader Weight |
972 lbs (441 kg) |
| Maximum Digging Depth |
15 ft 8 in (4834 mm) |
| Digging Depth, 24 in (610 mm) Flat Bottom |
15 ft 7 in (4804 mm) |
| Reach From Swing Pivot at Ground Line |
18 ft 2 in (5558 mm) |
| Loading Height |
12 ft 4 in (3802 mm) |
| Loading Reach |
5 ft 3 in (1620 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation |
205 degrees |
| Stabilizer Width |
7 ft 7 in (2368 mm) |
| Digging Force (Bucket Cylinder) |
11690 lbs (5312 kg) |
| Digging Force (Crowd Cylinder) |
7193 lbs (3270 kg) |
| Total Side Shift Travel |
4 ft 1 in (1258 mm) |
| Backhoe (Extendable Stick) |
| Maximum Digging Depth |
19 ft 3 in (5887 mm) |
| Digging Depth, 24 in (610 mm) Flat Bottom |
19 ft 2 in (5866 mm) |
| Reach From Swing Pivot at Ground Line |
21 ft 6 in (6610 mm) |
| Loading Height |
14 ft 1 in (4311 mm) |
| Loading Reach |
8 ft 6 in (2623 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation |
205 degrees |
| Stabilizer Width |
7 ft 7 in (2368 mm) |
| Digging Force (Bucket Cylinder) |
11465 lbs (5211 kg) |
| Digging Force (Crowd Cylinder) |
5395 lbs (2452 kg) |
| Total Side Shift Travel |
4 ft 1 in (1258 mm) |
