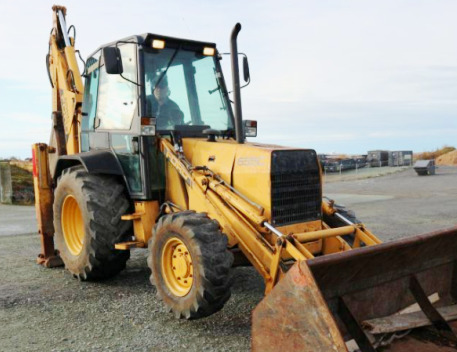

Ford 655C Backhoe Loader
The
Ford 655C backhoe loader was manufactured from 1989 to 1992. The components of
Ford 655C powerline system: Ford four-cylinder water-cooled naturally aspirated
diesel engine, and 4x4 synchromesh transmission with single stage torque
converter. A 268 cubic inches (4.4 L) engine has a cylinder bore of 4.4" (112
mm), piston stroke of 4.4" (112 mm), and rated power of 82 hp (61.1 kW).
The max forward speed - 19.9 mph (32 km/h), a maximum reverse speed -
19.8 mph (31.9 km/h). The open center hydraulic system used a piston
pump with fluid flow rate of 31.0 (117.5) gpm. The hydraulic pressure is
183 bar (2650 psi). The RRR is equipped with 11Lx16 (2WD) or 12.0x16.5
(4WD) front tyres and 16.9x28 rear tyres. The wheelbase is 87" (2200
mm).
The loader has a max lift height of 136.3" (3460 mm) at pin and a bucket
dump clearance of 106.6" (2700 mm). The lift capacity is rated at 6500
lbs (2950 kg) to max height, and boom breakout force is 12000 lbs (5445
mm). The estimated cycle times are 4.5 seconds lifting to full height,
and 1.7 seconds to full bucket dump. The 88" (2230 mm) standard material
bucket has a rated capacity of 31.5 cu.ft (0.9 cu.m).
The Ford Xtra-Vator backhoe digs to a maximum depth of 233" (5910 mm).
The digging force is 7810 lbs (3540 kg) for the dipperstick cylinder and
12510 lbs (5675 kg) for the bucket cylinder. The overall reach from
swing pivot at ground line is 276" (7010 mm). The backhoe can be
equipped with 12", 18", 24", 30", and 36" buckets.
| Engine Model |
Ford |
| Engine Type |
4-Stroke, four-cylinder liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
268 (4.40) |
| Engine Bore, in (mm) |
4.40 (112.0) |
| Engine Stroke, in (mm) |
4.40 (112.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
82.0 (61.1) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lb) |
289 (213) |
| Torque Speed, rpm |
1200 |
| Compression Ratio |
16.3:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Direct injection |
| Injection Pump Type |
Rotary |
| Governor Type |
Mechanical |
| Air Cleaner |
Dual dry element |
| Intake Valve Clearance, in (mm) |
0.015 (0.38) |
| Exhaust Valve Clearance, in (mm) |
0.018 (0.46) |
| Fuel Tank Capacity, gal (L) |
24.0 (90.8) |
| Oil Capacity, qts (L) |
9.0 (8.5) |
| Coolant Capacity, qts (L) |
15.0 (14.2) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
55 |
| Transmission Type |
Torque Converter |
| Gearbox Type |
4F/4R, Synchromesh |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.78:1 |
| Oil Capacity, qts (L) |
17.0 (16.1) |
| Maximum Forward Speed, mph (kph) |
19.9 (32.0) |
| Maximum Reverse Speed, mph (kph) |
19.8 (31.9) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (2WD) |
11Lx16 |
| Rear Tire Size (2WD) |
16.9x28 |
| Front Tire Size (4WD) |
12.0x16.5 |
| Rear Tire Size (4WD) |
16.9x28 |
| Front Tread, in (mm) |
68.5-70 (1730-1770) |
| Rear Tread, in (mm) |
68 (1720) |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
31.0 (117.5) |
| Steering Pump Flow, gpm (Lpm) |
7.9 (30.0) |
| Hydraulic Pressure, Bar (psi) |
183 (2650) |
| Steering Pressure, Bar (psi) |
134 (1950) |
| Hydraulic Fluid Capacity, gal (L) |
21.0 (79.5) |
| Steering Oil Capacity, qts (L) |
2.4 (2.3) |
| Wheelbase, in (mm) |
87 (2200) |
| Length (with Loader), in (mm) |
180 (4570) |
| Length (with Backhoe/Loader), in (mm) |
280 (7110) |
| Height (Cab), in (mm) |
109 (2760) |
| Height (ROPS), in (mm) |
108 (2740) |
| Overall Width, in (mm) |
89 (2260) |
| Ground Clearance (2WD), in (mm) |
11.5 (290) |
| Ground Clearance (4WD), in (mm) |
11 (280) |
| Weight with Backhoe/Loader (2WD), lb (kg) |
14200 (6440) |
| Weight with Backhoe/Loader (4WD), lb (kg) |
14450 (6555) |
| Loader Model |
Ford |
| Maximum Lift Height (to Pin), in (mm) |
136.3 (3460) |
| Clearance, Dumped Bucket, in (mm) |
106.6 (2700) |
| Reach At Max. Lift Height, in (mm) |
30 (760) |
| Dump Angle, deg |
45 |
| Rollback Angle, deg |
40 |
| Breakout Force (at Pin), lb (kg) |
12000 (5445) |
| Lift Capacity To Max. Height (at Pin), lb (kg) |
6500 (2950) |
| Bucket Width, in (mm) |
88 (2230) |
| Raising Time to Full Height, sec |
4.5 |
| Bucket Dumping Time, sec |
1.7 |
| Lowering Time, sec |
2.8 |
| Backhoe Model |
Ford Xtra-Vator |
| Digging Depth (Retracted), in (mm) |
186 (4720) |
| Digging Depth (Extended), in (mm) |
233 (5910) |
| 2-ft Flat Digging Depth (Retracted), in (mm) |
185 (4690) |
| 2-ft Flat Digging Depth (Extended), in (mm) |
232 (5890) |
| 8-ft Flat Digging Depth (Retracted), in (mm) |
171 (4340) |
| 8-ft Flat Digging Depth (Extended), in (mm) |
221 (5610) |
| Reach from Swing Pivot (Retracted), in (mm) |
233 (5910) |
| Reach from Swing Pivot (Extended), in (mm) |
276 (7010) |
| Loading Height (Retracted), in (mm) |
153 (3880) |
| Loading Height (Extended), in (mm) |
181 (4590) |
| Swing Arc, deg |
166 |
| Bucket Arc, deg |
180 |
| Maximum Transport Height, in (mm) |
153 (3880) |
| Bucket Digging Force, lb (kg) |
12510 (5675) |
| Dipperstick Digging Force, lb (kg) |
7810 (3540) |
| Bucket Width, in (mm) |
12 (305) |
| Bucket Width, in (mm) |
18 (455) |
| Bucket Width, in (mm) |
24 (605) |
| Bucket Width, in (mm) |
30 (760) |
| Bucket Width, in (mm) |
36 (910) |
