John Deere 310G Backhoe Loader
The

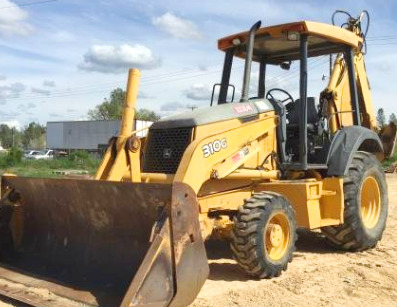

John Deere 310G backhoe loader was manufactured from 2001 to 2007. The John
Deere 310G driveline system components: JD 4045D 4-cylinder inline liquid-cooled
naturally aspirated diesel engine, and 16-speed Collar-Shift synchronized
transmission with hydraulic reverser and single-stage torque converter.
A 276 cubic inches (4.5L) engine has a cylinder bore of 4.19" (106 mm),
piston stroke of 5" (127 mm), and rated power of 75 hp (56 kW), and max
torque of 296 Nm (218 lb-ft) at 1400 rev/min. The max forward speed -
20.5 mph (33 kph), a max reverse speed - 20.5 mph (33 kph). The open
center hydraulic system used a gear pump with a flow of 28 gpm (106
lpm). The hydraulic pressure is 190 bar (2750 psi) for loader and 250
bar (3625 psi) for backhoe. The John Deere 310G was equipped with a
hydrostatic power steering, hydraulic wet disc brakes, 11Lx15 (2WD) or
12.0x16.5 (4WD) front tires, and 17.5Lx24 (2WD) or 16.9x24 (4WD) rear
tires. The wheel base is 82.7" (2100 mm).
The loader is compatible with a 82" (2080 mm) standard material bucket
with a rated capacity of 31.8 cu.ft (0.91 m3), or 86" (2180 mm)
heavy-duty material bucket with a rated capacity of 26.6 cu.ft (0.76
m3). The loader has a lift capacity of 5800 lbs (2630 kg) with HD bucket
and 5150 lbs (2335 kg) with STD bucket to full height of 133.1" (3380
mm), and boom breakout force of 8100 lbs (3680 kg) HD bucket and 7175
lbs (3260 kg) with STD bucket. The bucket dump clearance is 105.9" (2690
mm) with HD bucket or 102" (2590 mm) with STD bucket at max dump angle
of 45 degrees.
The backhoe with extendable stick digs to max depth of 215" (5460 mm).
The bucket digging force is 11211 lbs (5096 kg), and dipper stick
digging force is 4844 lbs (2202 kg). The reach from swing pivot at
ground level is 257.1" (6530 mm). The backhoe is available with 16" (405
mm), 18" (455 mm), 24" (605 mm), 30" (760 mm), and 36" (910 mm) buckets.
| Engine Model |
John Deere 4045D |
| Engine Type |
4-Stroke, 4-cylinder liquid-cooled diesel |
| Number of Cylinders |
4, in-line |
| Displacement, cu in (L) |
276.0 (4.50) |
| Engine Bore, in (mm) |
4.19 (106.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
75.0 (56.0) |
| Rated Engine Speed, rpm |
2300 |
| Operating Speed Range, rpm |
1300-2350 |
| Maximum Torque, Nm (lb-ft) |
296 (218) |
| Torque Speed, rpm |
1400 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Injection pump |
| Governor Type |
Mechanical |
| Lubrication System |
Pressure with spin-on filter and cooler |
| Air Cleaner |
Dry element |
| Emissions Level |
Stage 2 |
| Valve Clearance (Intake), in (mm) |
0.014 (0.356) |
| Valve Clearance (Exhaust), in (mm) |
0.018 (0.457) |
| Fuel Tank Capacity, gal (L) |
36.0 (136.5) |
| Oil Capacity, qts (L) |
9.0 (8.5) |
| Coolant Capacity, qts (L) |
17.0 (16.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
65 |
| Transmission Type |
Collar-Shift |
| Gearbox Type |
4F/4R, synchronized with hydraulic reverser |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity, qts (L) |
15.0 (14.0) |
| Maximum Forward Speed, mph (kph) |
20.5 (33.0) |
| Maximum Reverse Speed, mph (kph) |
20.5 (33.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Cylinder Rod/Stroke (2WD), in (mm) |
1.0x9.5 (25x240) |
| Steering Cylinder Rod/Stroke (4WD), in (mm) |
1.4x8.3 (36x210) |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (2WD) |
11Lx15 |
| Rear Tire Size (2WD) |
17.5Lx24 |
| Front Tire Size (2WD) |
11Lx16 |
| Rear Tire Size (2WD) |
19.5Lx24 |
| Front Tire Size (4WD) |
12.0x16.5 |
| Rear Tire Size (4WD) |
16.9x24 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
28.0 (106.0) |
| Steering Pump Flow, gpm (Lpm) |
4.3 (16.5) |
| Hydraulic Pressure (Loader), Bar (psi) |
190 (2750) |
| Hydraulic Pressure (Backhoe), Bar (psi) |
250 (3625) |
| Hydraulic Fluid Capacity, gal (L) |
24.0 (91.0) |
| Wheelbase, in (mm) |
82.7 (2100) |
| Length, in (mm) |
279 (7080) |
| Height (ROPS), in (mm) |
108 (2740) |
| Overall Width, in (mm) |
86 (2180) |
| Ground Clearance, in (mm) |
12 (305) |
| Turning Radius (2WD), in (mm) |
127.2 (3230) |
| Turning Radius (4WD), in (mm) |
131.5 (3340) |
| Weight (2WD, ROPS), lb (kg) |
12800 (5805) |
| Weight (4WD, ROPS), lb (kg) |
13275 (6035) |
| Weight (2WD, Cab), lb (kg) |
13485 (6130) |
| Weight (4WD, Cab), lb (kg) |
13860 (6300) |
| Weight (Maximum), lb (kg) |
15090 (6845) |
| Loader (Heavy-Duty Materials Bucket) |
| Bucket Width, in (mm) |
86 (2180) |
| Bucket Capacity, cu.yd (m3) |
1.00 (0.76) |
| Maximum Lift Height to Pivot Pin, in (mm) |
133.1 (3380) |
| Clearance with Bucket Dumped, in (mm) |
105.9 (2690) |
| Reach at Maximum Lift Height, in (mm) |
30.9 (785) |
| Maximum Dump Angle, deg |
45 |
| Digging Depth, in (mm) |
6.3 (160) |
| Maximum Rollback Angle, deg |
40 |
| Lift Capacity to Maximum Height at Pivot Pin, lb (kg) |
5800 (2630) |
| Breakout Force at Pivot Pin, lb (kg) |
8100 (3680) |
| Boom Cylinder Size (Rod/Stroke), in (mm) |
1.97x31.1 (50x790) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.97x29.3 (50x744) |
| Loader (Standard Materials Bucket) |
| Bucket Width, in (mm) |
82 (2080) |
| Bucket Capacity, cu.yd (m3) |
1.18 (0.91) |
| Maximum Lift Height to Pivot Pin, in (mm) |
133.1 (3380) |
| Clearance with Bucket Dumped, in (mm) |
102 (2590) |
| Reach at Maximum Lift Height, in (mm) |
32.2 (818) |
| Maximum Dump Angle, deg |
45 |
| Digging Depth, in (mm) |
7.8 (197) |
| Maximum Rollback Angle, deg |
40 |
| Lift Capacity to Maximum Height at Pivot Pin, lb (kg) |
5150 (2335) |
| Breakout Force at Pivot Pin, lb (kg) |
7175 (3260) |
| Boom Cylinder Size (Rod/Stroke), in (mm) |
1.97x31.1 (50x790) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.97x29.3 (50x744) |
| Backhoe (Standard Dipperstick) |
| Maximum Digging Depth, in (mm) |
170.8 (4340) |
| 2-ft Flat Digging Depth, in (mm) |
170 (4320) |
| 8-ft Flat Digging Depth, in (mm) |
156 (3960) |
| Reach from Swing Pivot, in (mm) |
214.2 (5440) |
| Loading Height, in (mm) |
131.1 (3330) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
190 |
| Stabilizer Spread (Operating), in (mm) |
122 (3100) |
| Bucket Cylinder Digging Force, lb (kg) |
11106 (5048) |
| Crowd Cylinder Digging Force, lb (kg) |
7006 (3185) |
| Boom Cylinder Size (Rod/Stroke), in (mm) |
2.2x32.3 (56x821) |
| Crowd Cylinder Size (Rod/Stroke), in (mm) |
2.2x22.3 (56x566) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.97x35.1 (50x892) |
| Swing Cylinder Size (Rod/Stroke), in (mm) |
1.77x12.2 (45x310) |
| Stabilizer Cylinder Size (Rod/Stroke), in (mm) |
1.97x19.7 (50x500) |
| Backhoe (Extendable Dipperstick) |
| Maximum Digging Depth (Retracted), in (mm) |
172.8 (4390) |
| Maximum Digging Depth (Extended), in (mm) |
215 (5460) |
| 2-ft Flat Digging Depth (Retracted), in (mm) |
172 (4370) |
| 2-ft Flat Digging Depth (Extended), in (mm) |
214.2 (5440) |
| 8-ft Flat Digging Depth (Retracted), in (mm) |
159.8 (4060) |
| 8-ft Flat Digging Depth (Extended), in (mm) |
204 (5180) |
| Reach from Swing Pivot (Retracted), in (mm) |
217 (5510) |
| Reach from Swing Pivot (Extended), in (mm) |
257.1 (6530) |
| Loading Height (Retracted), in (mm) |
133.1 (3380) |
| Loading Height (Extended), in (mm) |
167 (4240) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
190 |
| Bucket Digging Force (Retracted), lb (kg) |
11211 (5096) |
| Bucket Digging Force (Extended), lb (kg) |
11211 (5096) |
| Dipper Digging Force (Retracted), lb (kg) |
6782 (3082) |
| Dipper Digging Force (Extended), lb (kg) |
4844 (2202) |
| Boom Cylinder Size (Rod/Stroke), in (mm) |
2.2x32.3 (56x821) |
| Crowd Cylinder Size (Rod/Stroke), in (mm) |
2.2x22.3 (56x566) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.97x35.1 (50x892) |
| Swing Cylinder Size (Rod/Stroke), in (mm) |
1.77x12.2 (45x310) |
| Stabilizer Cylinder Size (Rod/Stroke), in (mm) |
1.97x19.7 (50x500) |
| Dipperstick Cylinder Size (Rod/Stroke), in (mm) |
1.26x41.8 (32x1062) |
