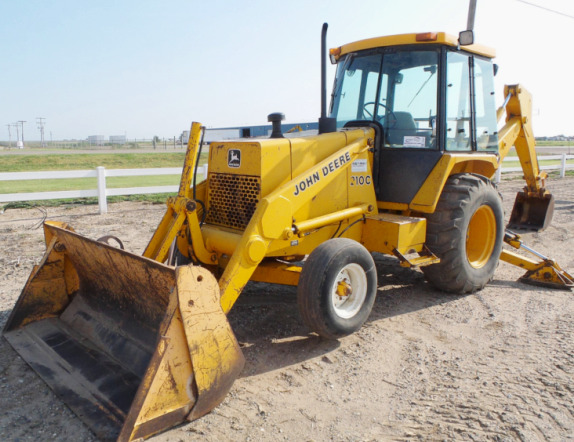

John Deere 210C Backhoe Loader
The
John Deere 210C backhoe loader was manufactured from 1986 to 1996. The JD 210C
is fitted with a John Deere 4239D four-cylinder liquid-cooled diesel engine
rated at 55 hp (41 kW) and a max. torque of 214 Nm (158 lb-ft) at 1300 rev/min.
The 4x4 manual shift transmission includes a single-stage torque converter and
modulated reverser with wet-disc clutches.
The max forward speed - 22.4 mph (36.1 kph), a max reverse speed - 22.3
mph (35.9 kph). The open center hydraulic system includes a gear pump
with flow rate of 24 gpm (91 lpm). The hydraulic pressure is 172.5 bar
(2500 psi).
The John Deere 210C is fitted with 11Lx15 (2WD) or 12.0x16.5 (4WD) front
tires and 17.5Lx24 (2WD) or 16.9x24 (4WD) rear tires. The wheelbase is
82.7 in (2100 mm) for 4x2 models, and 83.3 in (2115 mm) for 4x4 models.
The loader has a maximum lift height of 128 in (3250 mm) at pin and
bucket dump clearance of 103 in (2610 mm) inches. The lift capacity is
4700 lb (2130 kg) at full height (bucket pin), and breakout force
(bucket on ground) is 6800 lb (3085 kg). The raising cycle time is 4.8
seconds from ground line to max height, and bucket dump time is 1.1
seconds. The general purpose bucket has a width of 81 in (2060 mm) and
heaped capacity of 1.0 cu.yd (0.78 cu.m).
The backhoe with extendable dipperstick has a bucket digging force of
9600 lb (4355 kg), and dipperstick dig force of 3510 lb (1590 kg). The
digging depth at max value is 213 in (5410 mm), and overall reach from
swing pivot is 251 in (6370 mm) at ground level. The backhoe is
compatible with 12", 16", 30" and 36" standard-duty buckets, or 18" and
24" heavy-duty buckets.
Engine Model |
John Deere 4239D |
Engine Type |
4-cycle four-cylinder liquid-cooled diesel |
Number of Cylinders |
4 |
Displacement, cu in (L) |
239 (3.917) |
Engine Bore, in (mm) |
4.19 (106.0) |
Engine Stroke, in (mm) |
4.33 (110.0) |
Aspiration |
Naturally aspirated |
Rated Engine Power, hp (kW) |
55.0 (41.0) |
Rated Engine Speed, rpm |
2200 |
Maximum Torque, Nm (ft-lbs) |
214 (158) |
Torque Speed, rpm |
1300 |
Compression |
17.8:1 |
Fuel System |
Injection pump |
Fuel Injection to combustion chamber |
Direct |
Lubrication System |
Pressure system with filter and cooler |
Oil Filter Type |
Full-flow |
Air Cleaner |
Dry type |
Intake Valve Clearance, in (mm) |
0.014 (0.36) |
Exhaust Valve Clearance, in (mm) |
0.018 (0.46) |
Fuel Tank Capacity, gal (L) |
23.0 (87.0) |
Oil Capacity, qts (L) |
9.0 (8.5) |
Coolant Capacity, qts (L) |
17.0 (16.0) |
Electrical System Rating, Volts |
12 |
Alternator Rating, Amps |
51 |
Transmission Type |
Torque Converter and Reverser |
Gearbox Type |
4F/4R |
Number of Forward Gears |
4 |
Number of Reverse Gears |
4 |
Torque Converter Type |
Single stage |
Torque Converter Ratio |
2.78:1 |
Reverser Type |
Modulated, wet-disc clutches |
Oil Capacity, qts (L) |
7.5 (7.0) |
Maximum Forward Speed, mph (kph) |
22.4 (36.1) |
Maximum Reverse Speed, mph (kph) |
22.3 (35.9) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front steer |
Steering System |
Hydrostatic power |
Brakes Type |
Differential hydraulic wet disc |
Front Tire Size (2WD) |
7.50x16 |
Rear Tire Size (2WD) |
14.9x24 |
Front Tire Size (2WD) |
11Lx15 |
Rear Tire Size (2WD) |
17.5Lx24 |
Front Tire Size (4WD) |
12.0x16.5 |
Rear Tire Size (4WD) |
16.9x24 |
Front Tread (2WD), in (mm) |
56 (1420) |
Rear Tread (2WD), in (mm) |
60 (1525) |
Front Tread (4WD), in (mm) |
68 (1730) |
Rear Tread (4WD), in (mm) |
62 (1575) |
Hydraulic System Type |
Open center |
Implement Pump Type |
Gear |
Implement Pump Flow, gpm (Lpm) |
24.0 (91.0) |
Steering Pump Flow, gpm (Lpm) |
4.3 (16.5) |
Hydraulic Pressure, Bar (psi) |
172.5 (2500) |
Hydraulic Fluid Capacity, gal (L) |
8.0 (30.4) |
Wheelbase (2WD), in (mm) |
82.7 (2100) |
Wheelbase (4WD), in (mm) |
83.3 (2115) |
Length, in (mm) |
276 (7010) |
Height (ROPS), in (mm) |
101.5 (2570) |
Height (Exhaust), in (mm) |
99 (2510) |
Overall Width, in (mm) |
75 (1900) |
Ground Clearance, in (mm) |
11 (270) |
Turning Radius (2WD), in (mm) |
112 (2845) |
Turning Radius (4WD), in (mm) |
120 (3050) |
Weight, lb (kg) |
10500 (4720) |
Bucket Width, in (mm) |
81 (2060) |
Bucket Capacity, cu.yd (m3) |
1.0 (0.78) |
Maximum Lift Height to Pivot Pin, in (mm) |
128 (3250) |
Clearance with Bucket Dumped, in (mm) |
103 (2610) |
Reach at Maximum Lift Height, in (mm) |
29 (735) |
Maximum Dump Angle, deg |
45 |
Digging Depth, in (mm) |
1 (25) |
Maximum Rollback Angle, deg |
40 |
Lift Capacity to Maximum Height at Pivot Pin, lb (kg) |
4700 (2130) |
Breakout Force at Pivot Pin, lb (kg) |
6800 (3085) |
Lift Cylinder Size (Rod/Stroke), in (mm) |
1.77x30.8 (45x782) |
Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.75x28.1 (40x715) |
Backhoe (Standard Dipperstick) |
Maximum Digging Depth, in (mm) |
168 (4270) |
2-ft Flat Digging Depth, in (mm) |
165 (4190) |
8-ft Flat Digging Depth, in (mm) |
151 (3830) |
Reach from Swing Pivot, in (mm) |
207 (5250) |
Loading Height, in (mm) |
125 (3170) |
Swing Arc, deg |
180 |
Bucket Rotation, deg |
160 |
Bucket Digging Force, lb (kg) |
9600 (4355) |
Dipper Digging Force, lb (kg) |
5200 (2360) |
Maximum Lift Capacity (Boom at 65 deg), lb (kg) |
2400 (1090) |
Boom Cylinder Size (Rod/Stroke), in (mm) |
1.97x34.9 (50x886) |
Dipperstick Cylinder Size (Rod/Stroke), in (mm) |
1.77x33 (45x838) |
Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.77x31 (45x788) |
Swing Cylinder Size (Rod/Stroke), in (mm) |
1.77x8.9 (45x226) |
Stabilizer Cylinder Size (Rod/Stroke), in (mm) |
1.77x15.5 (45x394) |
Backhoe (Extendable Dipperstick) |
Maximum Digging Depth (Retracted), in (mm) |
168 (4270) |
Maximum Digging Depth (Extended), in (mm) |
213 (5410) |
2-ft Flat Digging Depth (Retracted), in (mm) |
165 (4190) |
2-ft Flat Digging Depth (Extended), in (mm) |
212 (5380) |
8-ft Flat Digging Depth (Retracted), in (mm) |
151 (3830) |
8-ft Flat Digging Depth (Extended), in (mm) |
201 (5100) |
Reach from Swing Pivot (Retracted), in (mm) |
207 (5250) |
Reach from Swing Pivot (Extended), in (mm) |
251 (6370) |
Loading Height (Retracted), in (mm) |
125 (3170) |
Loading Height (Extended), in (mm) |
148 (3750) |
Swing Arc, deg |
180 |
Bucket Rotation, deg |
160 |
Bucket Digging Force (Retracted), lb (kg) |
9610 (4360) |
Bucket Digging Force (Extended), lb (kg) |
9600 (4355) |
Dipper Digging Force (Retracted), lb (kg) |
5200 (2360) |
Dipper Digging Force (Extended), lb (kg) |
3510 (1590) |
Boom Cylinder Size (Rod/Stroke), in (mm) |
1.97x34.9 (50x886) |
Dipperstick Cylinder Size (Rod/Stroke), in (mm) |
1.77x33 (45x838) |
Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.77x31 (45x788) |
Extendahoe Cylinder Size (Rod/Stroke), in (mm) |
1.25x48 (32x1220) |
Swing Cylinder Size (Rod/Stroke), in (mm) |
1.77x8.9 (45x226) |
Stabilizer Cylinder Size (Rod/Stroke), in (mm) |
1.77x15.5 (45x394) |
