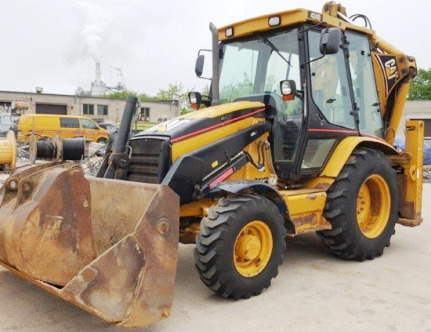

Cat 424D Backhoe Loader
The
Caterpillar 424D backhoe loader was manufactured from 2001 to 2006. The
components of Cat 424D driveline system: a 258 cu.in (4.2L) Caterpillar 3054B
4-stroke 4-cylinder direct Injection liquid cooled diesel engine, and 4x4 Power
Shuttle full synchromesh transmission with single-stage torque converter.
The engine has a cylinder bore of 4.06" (103 mm), piston stroke of 5.0"
(127 mm), and rated power of 74 hp (55 kW). The max travel speed
(forward/reverse): 19.7 mph (31.8 km/h). The closed center load sensing
hydraulic system used an axial piston pump with a flow of 37 gpm (139
lpm). The main relief pressure is 207 bar (3000 psi). The Cat 424D
backhoe loader was equipped with 12.5/80-18 (2WD) or 340/80R18 (4WD)
front tyres and 16.9x28 (2WD) or 16.9R28 (4WD) rear tyres. The wheelbase
is 83" (2100 mm).
The loader has a lift capacity (at pin) of 5320 lbs (2416 kg) to max
height of 10 ft 10 in (3321 mm), and boom breakout force of 8750 lbs
(3977 kg). The clearance with bucket dumped is 8 ft 8 in (2633 mm) at
maximum dump angle of 43 degrees. The 89" (2260 mm) standard material
bucket has a nominal heaped capacity of 29.1 cu.ft (0.83 m3).
The backhoe with extendable stick has a max digging depth of 19 ft 4 in
(5894 mm). The dipperstick digging force is 5670 lbs (2577 kg), and
bucket digging force is 11610 lbs (5277 kg). The overall reach from
swing pivot at ground level is 21 ft 10 in (6664 mm). The backhoe can be
fitted with 12" (305 mm), 18" (455 mm), 24" (605 mm), 30" (760 mm), and
36" (910 mm) buckets.
| Engine Model |
Caterpillar 3054B |
| Engine Type |
Four-stroke, 4-cylinder, liquid cooled diesel |
| Number of Cylinders |
4, In-Line |
| Displacement, cu in (L) |
258 (4.20) |
| Engine Bore, in (mm) |
4.06 (103.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Maximum Engine Power, hp (kW) |
77.0 (57.0) |
| Rated Engine Power, hp (kW) |
74.0 (55.0) |
| Rated Engine Speed, rpm |
2200 |
| Compression |
18.5:1 |
| Fuel System |
Direct Injection |
| Rotation |
Counterclockwise |
| Air Cleaner |
Dry-type radial seal |
| Fuel Tank Capacity, gal (L) |
34.0 (128.0) |
| Oil Capacity, qts (L) |
7.7 (7.3) |
| Coolant Capacity, qts (L) |
16.0 (15.0) |
| Electrical System Rating, Volts |
12 |
| Battery Rating |
700 CCA |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
4F/4R, Full synchromesh |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter |
Single-stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity, qts (L) |
19.0 (18.0) |
| Maximum Forward Speed, mph (kph) |
19.7 (31.8) |
| Maximum Reverse Speed, mph (kph) |
19.7 (31.8) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Cylinder |
One, Double-acting |
| Steering Cylinder Bore (2WD), in (mm) |
2.76 (70) |
| Steering Cylinder Stroke (2WD), in (mm) |
8.81 (224) |
| Steering Cylinder Rod Diameter (2WD), in (mm) |
1.75 (44) |
| Steering Cylinder Bore (4WD), in (mm) |
2.85 (72) |
| Steering Cylinder Stroke (4WD), in (mm) |
8.31 (211) |
| Steering Cylinder Rod Diameter (4WD), in (mm) |
1.50 (38) |
| Service Brakes |
Hydraulic, multiple discs |
| Parking Brake |
Mechanical, independent |
| Front Tire Size (2WD) |
12.5/80-18 10PR |
| Rear Tire Size (2WD) |
16.9x28 10PR |
| Front Tire Size (4WD) |
340/80R18 |
| Rear Tire Size (4WD) |
16.9R28 |
| Front Track Width, in (mm) |
70.4 (1780) |
| Rear Track Width, in (mm) |
67.7 (1714) |
| Hydraulic System Type |
Closed center load sensing |
| Hydraulic Pump Type |
Closed center load sensingVariable displacement, axial piston pump |
| Hydraulic Pump Flow, gpm (Lpm) |
37.0 (139.0) |
| Hydraulic Pressure, Bar (psi) |
207 (3000) |
| Hydraulic System Capacity, gal (L) |
21.0 (79.0) |
| Valves Type |
Pressure-compensated |
| Wheelbase |
83 in (2100 mm) |
| Transport Length |
18 ft 11 in (5760 mm) |
| Overall Length, (Loader on ground) |
18 ft 9 in (5710 mm) |
| Transport Height |
12 ft 3 in (3740 mm) |
| Height (Cab) |
114.6 in (2900 mm) |
| Height (Exhaust) |
106.7 in (2700 mm) |
| Overall Width |
94.7 in (2396 mm) |
| Ground Clearance |
12.6 in (320 mm) |
| Turning Radius |
17 ft 7 in (5350 mm) |
| Weight (Operating) |
16500 lbs (7500 kg) |
| Weight (Maximum) |
21560 lbs (9800 kg) |
| Bucket Hinge Pin, Maximum Height |
10 ft 10 in (3321 mm) |
| Dump Angle at Full Height |
43 degrees |
| Dump Clearance at Full Height |
8 ft 8 in (2633 mm) |
| Dump Reach at Full Height |
31.4 in (794 mm) |
| Maximum Bucket Rollback at Ground Level |
39 degrees |
| Digging Depth |
3.1 in (78 mm) |
| Maximum Grading Angle |
109 degrees |
| Maximum Operating Height |
13 ft 9 in (4201 mm) |
| Lift Capacity at Maximum Height |
5320 lbs (2416 kg) |
| Breakout Force |
8750 lbs (3977 kg) |
| Bucket Width, in (mm) |
89 (2260) |
| Bucket Capacity, cu.ft (m3) |
29.1 (0.83) |
| Loader Weight |
980 lbs (445 kg) |
| Maximum Digging Depth |
15 ft 11 in (4854 mm) |
| Digging Depth, 2 ft (610 mm) Flat Bottom |
15 ft 11 in (4850 mm) |
| Reach From Swing Pivot at Ground Line |
18 ft 6 in (5637 mm) |
| Loading Height |
12 ft 2 in (3712 mm) |
| Loading Reach |
5 ft 9 in (1742 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation |
205 degrees |
| Stabilizer Width |
7 ft 9 in (2360) |
| Digging Force (Bucket Cylinder) |
11720 lbs (5327 kg) |
| Digging Force (Crowd Cylinder) |
7850 lbs (3568 kg) |
| Total Side Shift Travel |
3 ft 7 in (1096) |
| Backhoe (Extendable Stick) |
| Maximum Digging Depth |
19 ft 4 in (5894 mm) |
| Digging Depth, 24 in (610 mm) Flat Bottom |
19 ft 3 in (5865 mm) |
| Reach From Swing Pivot at Ground Line |
21 ft 10 in (6664 mm) |
| Loading Height |
14 ft (4274 mm) |
| Loading Reach |
9 ft (2747 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation |
205 degrees |
| Stabilizer Width |
7 ft 9 in (2360) |
| Digging Force (Bucket Cylinder) |
11610 lbs (5277 kg) |
| Digging Force (Crowd Cylinder) |
5670 lbs (2577 kg) |
| Total Side Shift Travel |
3 ft 7 in (1096) |
