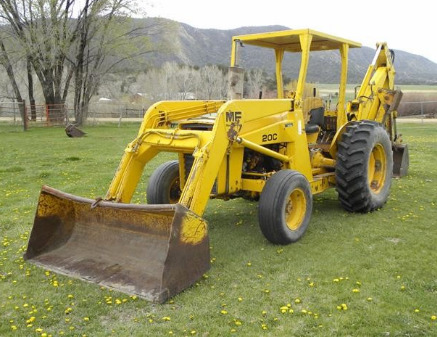

Massey Ferguson 20C Backhoe Loader
The
Massey Ferguson 20C backhoe loader was manufactured from 1976 to 1982. The
components of MF 20C driveline system: a 152.7 cu.in (2.5 L) Perkins AD3.152
diesel engine with a rated power of 46.5 hp (34.7 kW), or 145 cu.in (2.4 L)
Continental gasoline engine with a rated power of 43 hp (32.2 kW), and manual
shuttle transmission with 6 forward and 6 reverse gears.
The maximum forward speed - 22.4 mph (36 km/h), a max reverse speed -
20.3 mph (32.6 km/h). The open center hydraulic system includes a gear
pump with rated fluid flow of 22 gpm (83.3 lpm). The hydraulic system
pressure is 172.5 bar (2500 psi). The Massey Ferguson 20C backhoe loader
is equipped with 7.50-16 or 11L-15 front tires and 14.9-24 rear tires.
The wheelbase is 77" (1950 mm).
The MF 32A loader has a maximum lift height of 124 in (3140 mm) at pin
and clearance with bucket dumped of 102 in (2590 mm). The lifting
capacity is 2800 lbs (1270 kg) to max height at pin, and boom breakout
force is 4500 lbs (2040 kg). The raising time is 3 seconds from ground
level to full height, and bucket dumping time is 2 sec. The 68" (1720
mm) loader bucket has a heaped capacity of 0.63 cu.yd (0.50 m3).
The MF 52A backhoe has a bucket digging force of 8850 lbs (4015 kg), and
dipperstick dig force of 5750 lbs (2610 kg). The digging depth at
maximum value is 139 in (3520 mm), and overall reach from swing pivot is
179 in (4540 mm) at ground line. The backhoe can be equipped with 24"
(610 mm), 30" (760 mm) and 36" (915 mm) buckets.
| Engine Model |
Perkins AD3.152 |
| Engine Type |
4-Stroke, 3-cylinder liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
152.7 (2.50) |
| Engine Bore, in (mm) |
3.60 (91.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
46.5 (34.7) |
| Rated Engine Speed, rpm |
2250 |
| Maximum Torque, Nm (ft-lb) |
161 (119) |
| Torque Speed, rpm |
1300 |
| Compression Ratio |
16.5:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Injection pump |
| Governor |
Mechanical |
| Air Cleaner |
Dual dry element |
| Valve Clearance, in (mm) |
0.012 (0.30) |
| Fuel Tank Capacity, gal (L) |
14.0 (53.0) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Coolant Capacity, qts (L) |
10.0 (9.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
38 |
| Engine Model |
Continental Z145 |
| Engine Type |
4-Stroke, 4-cylinder liquid-cooled gasoline |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
145 (2.40) |
| Engine Bore, in (mm) |
3.40 (86.0) |
| Engine Stroke, in (mm) |
4.00 (102.0) |
| Rated Engine Power, hp (kW) |
43.0 (32.2) |
| Rated Engine Speed, rpm |
2250 |
| Maximum Torque, Nm (ft-lb) |
146 (108) |
| Torque Speed, rpm |
1600 |
| Compression Ratio |
7.4:1 |
| Fuel System |
Carburetor |
| Fuel Tank Capacity, gal (L) |
10.7 (40.5) |
| Oil Capacity, qts (L) |
6.0 (5.7) |
| Coolant Capacity, qts (L) |
10.0 (9.5) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
41.0 (30.3) |
| PTO Speed, rpm |
540 |
| Transmission Type |
Manual shuttle |
| Gearbox Type |
6F/6R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
6 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
42.0 (39.7) |
| Maximum Forward Speed, mph (kph) |
22.4 (36.0) |
| Maximum Reverse Speed, mph (kph) |
20.3 (32.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential internal expanding |
| Front Tire Size (Turf) |
7.50-16 |
| Rear Tire Size (Turf) |
14.9-24 |
| Front Tire Size (Industrial) |
11L-15 |
| Rear Tire Size (Industrial) |
14.9-24 |
| Front Tread, in (mm) |
61-70 (1540-1770) |
| Rear Tread, in (mm) |
60-77 (1520-1950) |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
22.0 (83.3) |
| Hydraulic Pressure, Bar (psi) |
172.5 (2500) |
| Hydraulic Capacity, gal (L) |
16.0 (60.5) |
| Steering Capacity, qts (L) |
2.0 (1.9) |
| Wheelbase, in (mm) |
77 (1950) |
| Length, in (mm) |
246 (6240) |
| Height (Steering Wheel), in (mm) |
56 (1420) |
| Overall Width, in (mm) |
77 (1950) |
| Ground Clearance, in (mm) |
12 (305) |
| Weight (Gas), lb (kg) |
8990 (4085) |
| Weight (Diesel), lb (kg) |
9250 (4195) |
| Loader Model |
MF 32A |
| Maximum Lift Height (to Pin), in (mm) |
124 (3140) |
| Clearance, Dumped Bucket, in (mm) |
102 (2590) |
| Reach At Max. Lift Height, in (mm) |
26 (660) |
| Reach At Ground, in (mm) |
74 (1870) |
| Dump Angle, deg |
40 |
| Rollback Angle, deg |
20 |
| Breakout Force (at Pin), lb (kg) |
4500 (2040) |
| Lift Capacity To Max. Height (at Pin), lb (kg) |
2800 (1270) |
| Bucket Width, in (mm) |
68 (1720) |
| Bucket Capacity, cu.yd (m3) |
0.63 (0.50) |
| Raising Time to Full Height, sec |
3.0 |
| Bucket Dumping Time, sec |
2.0 |
| Lowering Time, sec |
1.5 |
| Backhoe Model |
MF 52A |
| Digging Depth, in (mm) |
139 (3520) |
| Digging Depth (2-ft Flat), in (mm) |
138 (3500) |
| Reach from Swing Pivot, in (mm) |
179 (4540) |
| Loading Height, in (mm) |
104 (2640) |
| Swing Arc, deg |
180 |
| Bucket Digging Force, lb (kg) |
8850 (4015) |
| Dipperstick Digging Force, lb (kg) |
5750 (2610) |
| Bucket Width, in (mm) |
24 (605) |
| Bucket Width, in (mm) |
30 (760) |
| Bucket Width, in (mm) |
36 (910) |
