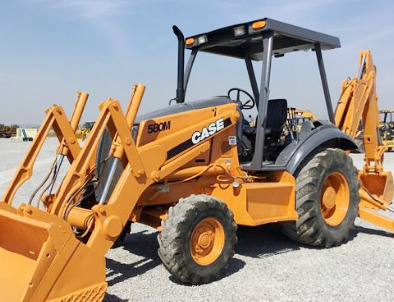

Case 580M Backhoe Loader
The
Case 580M backhoe loader was manufactured from 2002 to 2005. The Case 580M
powerline includes a 274 cubic inches (4.5 L) Case 445T/M2 4-cylinder direct
injection turbocharged diesel engine and 4x4 shuttle transmission with
four-speed synchromesh gears and single stage torque converter.
The engine has a cylinder bore of 4.09" (104 mm), piston stroke of 5.19"
(132 mm), and rated power of 80 hp (60 kW). The max forward speed - 24.5
mph (39.4 km/h), a maximum reverse speed - 29.6 mph (47.6 km/h). The
open center hydraulic system used a gear pump with a flow rate of 28.5
gal/min (108 l/min).
The main relief pressure is 210 bar (3050 psi). The 2-wheel drive models
are equipped with 11Lx16 front tires and 17.5Lx24 rear tires. The
12x16.5 front tires and 19.5Lx24 rear tires are used for tractors with
4-wheel drive. The wheel base is 84" (2130 mm) for 4x2 (2WD) models, and
84.5" (2145 mm) for 4x4 (4WD) models.
The front end loader has a lift capacity (at pin) of 6182 lbs (2804 kg)
to full height of 133.8" (3400 mm), and breakout force (bucket on
ground) of 9164 lbs (4165 kg). The clearance with a bucket dumped is
104" (2640 mm) at maximum dump angle of 46 degrees. The time to raise
the boom is 5.3 seconds from ground line to maximum height, and bucket
dumping time is 1.1 seconds. The loader is compatible with the following
buckets: 82" (2080 mm) general purpose bucket with a heaped capacity of
27.7 cu.ft (0.79 cu.m) and 93" (2360 mm) general purpose bucket with a
heaped capacity of 33.6 cu.ft (0.96 cu.m).
The backhoe digs to a maximum depth of 18 ft 3 in (5560 mm) using
extendahoe model. The digging force is 11212 lbs (5096 kg) for the
bucket cylinder and 4884 lbs (2220 kg) for the dipperstick cylinder. The
reach from swing pivot at ground level is 21 ft 10 in (6655 mm). Backhoe
can be equipped with 12" 16", 20", 24", 30" and 36" buckets.
| Engine Model |
Case 445T/M2 |
| Engine Type |
4-cylinder direct injection turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
274 (4.50) |
| Engine Bore, in (mm) |
4.09 (104.0) |
| Engine Stroke, in (mm) |
5.19 (132.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
80.0 (60.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
320 (236) |
| Torque Speed, rpm |
1400 |
| Idle Speed, rpm |
750-2480 |
| Compression |
17:1 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dual element |
| Oil Filter |
Replaceable, spin-on cartridge, full flow |
| Water Pump Type |
Integral |
| Fuel Tank Capacity, gal (L) |
31.4 (119.0) |
| Oil Capacity, qts (L) |
14.4 (13.6) |
| Coolant Capacity, qts (L) |
17.8 (16.8) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
90 |
| Transmission Type |
Shuttle with Torque Converter |
| Gearbox Type |
4F/4R, four-speed synchromesh |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
3.38:1 |
| Oil Capacity (2WD), qts (L) |
19.5 (18.5) |
| Oil Capacity (4WD), qts (L) |
22.0 (20.8) |
| Maximum Forward Speed, mph (kph) |
24.5 (39.4) |
| Maximum Reverse Speed, mph (kph) |
29.6 (47.6) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Cylinder |
Double acting type |
| Steering Cylinder Rod/Stroke (2WD), in (mm) |
1.5x6.70 (38x170) |
| Steering Cylinder Rod/Stroke (4WD), in (mm) |
1.5x9.53 (38x242) |
| Service Brakes |
Wet disc |
| Front Tire Size (2WD) |
11Lx16 |
| Rear Tire Size (2WD) |
17.5Lx24 |
| Front Tire Size (4WD) |
12x16.5 |
| Rear Tire Size (4WD) |
19.5Lx24 |
| Front Tread Width (2WD), in (mm) |
67.5 (1715) |
| Front Tread Width (4WD), in (mm) |
67.7 (1720) |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
28.5 (108.0) |
| Hydraulic Pressure, Bar (psi) |
210 (3050) |
| Hydraulic System Capacity (Standard), gal (L) |
28.0 (106.0) |
| Hydraulic System Capacity (Extendahoe), gal (L) |
29.5 (111.5) |
| Number of Standard Remote Valves (Loader) |
3/4 |
| Number of Standard Remote Valves (Backhoe) |
6/7 |
| Wheelbase (2WD), in (mm) |
84 (2130) |
| Wheelbase (4WD), in (mm) |
84.5 (2145) |
| Length (with Attachments), in (mm) |
278.4 (7070) |
| Height (ROPS), in (mm) |
105 (2670) |
| Height (Cab), in (mm) |
107 (2720) |
| Height (Exhaust), in (mm) |
104 (2640) |
| Overall Width, in (mm) |
86 (2180) |
| Ground Clearance, in (mm) |
14.8 (375) |
| Turning Diameter (2WD, with Brakes), in (mm) |
255 (6480) |
| Turning Diameter (2WD, w/o Brakes), in (mm) |
295 (7490) |
| Turning Diameter (4WD, with Brakes), in (mm) |
264.5 (6720) |
| Turning Diameter (4WD, w/o Brakes), in (mm) |
339.4 (8620) |
| Weight (2WD, ROPS), lb (kg) |
13360 (6060) |
| Weight (4WD, Cab), lb (kg) |
16510 (7490) |
| Overall Operating Height |
13 ft 8 in (4170 mm) |
| Maximum Height to Bucket Hinge Pin |
11 ft 2 in (3400 mm) |
| Dump Angle at Full Height |
46 deg |
| Dump Clearance at Full Height |
8 ft 8 in (2640 mm) |
| Dump Reach at Full Height |
28.2 in (717 mm) |
| Bucket Rollback Groundline |
45 deg |
| Digging Depth Below Grade Bucket Flat |
7.8 in (200 mm) |
| Reach with Bucket on Ground |
77.6 in (1910 mm) |
| Lift Capacity to Full Height |
6182 lb (2804 kg) |
| Lift Cylinders Breakout Force |
9164 lb (4165 kg) |
| Dump Cylinders Breakout Force |
9480 lb (4310 kg) |
| Bucket Width |
82 in (2080 mm) |
| Lift Cylinder Size (Rod/Stroke) |
1.75x30.2 in (44.5x766 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
1.5x20.6 in (38x522 mm) |
| Maximum Digging Depth |
14 ft 3 in (4340 mm) |
| 2-ft Flat Digging Depth |
14 ft 2 in (4320 mm) |
| 8-ft Flat Digging Depth |
13 ft 3 in (4040 mm) |
| Overall Reach from Rear Axle Centerline |
21 ft 5 in (6530 mm) |
| Overall Reach from Swing Pivot |
17 ft 10 in (5440 mm) |
| Loading Height |
11 ft 2 in (3400 mm) |
| Loading Reach |
8 ft 9 in (2670 mm) |
| Swing Arc |
180 deg |
| Bucket Rotation |
170 deg |
| Stabilizer Spread (Operating Position) |
9 ft 5 in (2870 mm) |
| Digging Force (Bucket Cylinder) |
11212 lb (5096 kg) |
| Digging Force (Dipper Cylinder) |
7050 lb (3205 kg) |
| Boom Cylinder Size (Rod/Stroke) |
2.25x38.6 in (57x981 mm) |
| Dipperstick Cylinder Size (Rod/Stroke) |
2.25x27 in (57x686 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
2.25x34.3 in (57x872 mm) |
| Swing Cylinder Size (Rod/Stroke) |
2.0x11.5 in (51x292 mm) |
| Stabilizer Cylinder Size (Rod/Stroke) |
2.0x21.8 in (51x553 mm) |
| Maximum Digging Depth (Retracted) |
14 ft 10 in (4520 mm) |
| Maximum Digging Depth (Extended) |
18 ft 3 in (5560 mm) |
| 2-ft Flat Digging Depth (Retracted) |
14 ft 8 in (4470 mm) |
| 2-ft Flat Digging Depth (Extended) |
18 ft 2 in (5535 mm) |
| 8-ft Flat Digging Depth (Retracted) |
13 ft 9 in (4190 mm) |
| 8-ft Flat Digging Depth (Extended) |
17 ft 6 in (5330 mm) |
| Reach from Rear Axle Centerline (Retracted) |
22 ft (6705 mm) |
| Reach from Rear Axle Centerline (Extended) |
25 ft 5 in (7745 mm) |
| Reach from Swing Pivot (Retracted) |
18 ft 5 in (5615 mm) |
| Reach from Swing Pivot (Extended) |
21 ft 10 in (6655 mm) |
| Loading Height (Retracted) |
11 ft 5 in (3480 mm) |
| Loading Height (Extended) |
13 ft 3 in (4040 mm) |
| Loading Reach (Retracted) |
8 ft 8 in (2640 mm) |
| Loading Reach (Extended) |
11 ft 6 in (3500 mm) |
| Swing Arc |
180 deg |
| Bucket Rotation |
170 deg |
| Stabilizer Spread (Operating Position) |
9 ft 5 in (2870 mm) |
| Bucket Digging Force |
11212 lb (5096 kg) |
| Dipperstick Digging Force (Retracted) |
6686 lb (3040 kg) |
| Dipperstick Digging Force (Extended) |
4884 lb (2220 kg) |
| Boom Cylinder Size (Rod/Stroke) |
2.25x38.6 in (57x981 mm) |
| Dipperstick Cylinder Size (Rod/Stroke) |
2.25x27 in (57x686 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
2.25x34.3 in (57x872 mm) |
| Extendahoe Cylinder Size (Rod/Stroke) |
1.75x42 in (44.5x1070 mm) |
| Swing Cylinder Size (Rod/Stroke) |
2.0x11.5 in (51x292 mm) |
| Stabilizer Cylinder Size (Rod/Stroke) |
2.0x21.8 in (51x553 mm) |
