Case 580N Backhoe Loader
The

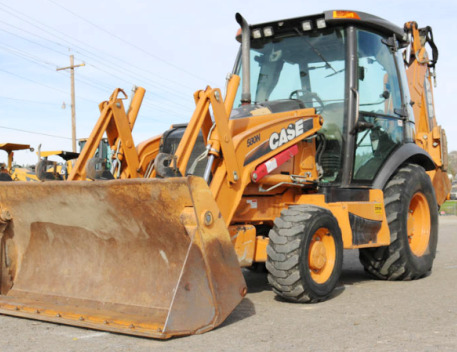

Case 580N backhoe loader was manufactured between 2011 and 2021. The Case 580N
is powered by 274 cu.in (4.5L) Case 445T 4-cylinder direct injection
turbocharged diesel engine with a rated power of 85 hp (63 kW) and 374 Nm (276
lb-ft) of peak torque at 1400 rev/min.
The Case 580N is fitted with 2 types of transmission. Type 1: 4x4 power
shuttle transmission with manual gear shifting. Type 2: 4x3 powershift
transmission with hydraulic gear shifting. The max forward speed - 24.3
mph (39.1 km/h), a maximum reverse speed - 29.1 mph (46.9 km/h).
The open center hydraulic system includes a single section gear pump
with fluid flow rate of 28.5 gal/min (108 l/min). The main relief
pressure is 207 bar (3000 psi). The Case 580N is equipped with 11Lx16
(2WD) or 12x16.5 (4WD) front tires and 17.5Lx24 (2WD) or 19.5Lx24 (4WD)
rear tires. The wheelbase is 84" (2130 mm) for 2-wheel drive models, and
84.5" (2145 mm) for 4-wheel drive models.
The front end loader has a lift capacity (at pin) of 6803 lb (3086 kg)
to a maximum height of 11 ft 3 in (3420 mm) and breakout force of 10622
lb (4828 kg). The bucket dump clearance is 8 ft 10 in (2690 mm) at max
dump angle of 47 degrees. The front-end loader is compatible with a 82
in (2080 mm) standard material bucket with a rated capacity of 28.1
cu.ft (0.80 cu.m).
The extendahoe backhoe operational data includes a bucket dig force of
11334 lb (5152 kg) and dipper arm dig force of 4887 lb (2221 kg). The
maximum digging depth is 18 ft 3 in (5550 mm), and a reach from swing
pivot is 25 ft 4 in (7720 mm) at ground level. The backhoe is equipped
with 12, 16", 18", 24", 30", or 36" buckets.
| Engine Model |
Case 445T |
| Engine Type |
4-cylinder direct injection turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
274 (4.50) |
| Engine Bore, in (mm) |
4.09 (104.0) |
| Engine Stroke, in (mm) |
5.19 (132.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
85.0 (63.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
374 (276) |
| Torque Speed, rpm |
1400 |
| Idle Speed, rpm |
875-2450 |
| Compression |
17:1 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dual element |
| Oil Filter |
Replaceable, spin-on cartridge, full flow |
| Water Pump Type |
Integral |
| Fuel Tank Capacity, gal (L) |
42.0 (159.0) |
| Oil Capacity, qts (L) |
14.4 (13.6) |
| Coolant Capacity, qts (L) |
17.8 (16.8) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
120 |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
4F/4R, manual gear shifting |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
3.2:1 |
| Oil Capacity (2WD), qts (L) |
18.0 (17.0) |
| Oil Capacity (4WD), qts (L) |
21.0 (19.4) |
| Maximum Forward Speed, mph (kph) |
24.3 (39.1) |
| Maximum Reverse Speed, mph (kph) |
29.1 (46.9) |
| Transmission Type |
PowerShift |
| Gearbox Type |
4F/3R, hydraulic gear shifting |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
3 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
3.2:1 |
| Oil Capacity (2WD), qts (L) |
23.0 (21.7) |
| Oil Capacity (4WD), qts (L) |
22.0 (20.7) |
| Maximum Forward Speed, mph (kph) |
24.3 (39.1) |
| Maximum Reverse Speed, mph (kph) |
15.5 (24.9) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Cylinder |
Double acting type |
| Service Brakes |
Wet disc |
| Front Tire Size (2WD) |
11Lx16 |
| Rear Tire Size (2WD) |
17.5Lx24 |
| Front Tire Size (4WD) |
12x16.5 |
| Rear Tire Size (4WD) |
19.5Lx24 |
| Front Tread Width, in (mm) |
67.5-67.7 (1715-1720) |
| Rear Tread Width, in (mm) |
61.2-63.1 (1555-1600) |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Type |
Single section gear pump |
| Implement Pump Flow, gpm (Lpm) |
28.5 (108.0) |
| Hydraulic Pressure, Bar (psi) |
207 (3000) |
| Hydraulic System Capacity (Standard), gal (L) |
28.0 (106.0) |
| Hydraulic System Capacity (Extendahoe), gal (L) |
29.5 (111.7) |
| Number of Standard Remote Valves (Loader) |
2/3 |
| Number of Standard Remote Valves (Backhoe) |
6/7 |
| Wheelbase (2WD), in (mm) |
84 (2130) |
| Wheelbase (4WD), in (mm) |
84.5 (2145) |
| Transport Length (2WD), in (mm) |
281.5 (7150) |
| Transport Length (4WD), in (mm) |
280.3 (7120) |
| Height (ROPS), in (mm) |
104.5 (2660) |
| Height (Cab), in (mm) |
107 (2720) |
| Height (Exhaust), in (mm) |
103 (2620) |
| Overall Width, in (mm) |
81.5 (2070) |
| Ground Clearance, in (mm) |
15 (380) |
| Turning Radius (2WD, with Brakes), in (mm) |
127.6 (3240) |
| Turning Radius (2WD, w/o Brakes), in (mm) |
149.2 (3790) |
| Turning Radius (4WD, with Brakes), in (mm) |
135.8 (3450) |
| Turning Radius (4WD, w/o Brakes), in (mm) |
165.7 (4210) |
| Weight (2WD, ROPS), lb (kg) |
14520 (6600) |
| Weight (4WD, Cab), lb (kg) |
16345 (7430) |
| Overall Operating Height |
13 ft 9 in (4180 mm) |
| Maximum Height to Bucket Hinge Pin |
11 ft 3 in (3420 mm) |
| Dump Angle at Full Height |
47 deg |
| Dump Clearance at Full Height |
8 ft 10 in (2690 mm) |
| Dump Reach at Full Height |
31.5 in (800 mm) |
| Bucket Rollback Groundline |
42 deg |
| Digging Depth Below Grade Bucket Flat |
6.1 in (155 mm) |
| Reach with Bucket on Ground |
6 ft 10 in (2080 mm) |
| Lift Capacity to Full Height |
6803 lb (3086 kg) |
| Lift Cylinders Breakout Force |
9506 lb (4321 kg) |
| Bucket Cylinders Breakout Force |
10622 lb (4828 kg) |
| Bucket Width |
82 in (2080 mm) |
| Lift Cylinder Size (Rod/Stroke) |
1.75x28.86 in (44.5x733 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
1.5x20.33 in (38x517 mm) |
| Maximum Digging Depth |
14 ft 9 in (4500 mm) |
| 2-ft Flat Digging Depth |
14 ft 8 in (4460 mm) |
| 8-ft Flat Digging Depth |
13 ft 8 in (4160 mm) |
| Overall Reach from Rear Axle Centerline |
21 ft 11 in (6680 mm) |
| Overall Reach from Swing Pivot |
18 ft 4 in (5570 mm) |
| Loading Height |
11 ft 9 in (3590 mm) |
| Loading Reach |
6 ft 9 in (2040 mm) |
| Swing Arc |
180 deg |
| Bucket Rotation |
198 deg |
| Stabilizer Spread (Operating Position) |
9 ft 9 in (2970 mm) |
| Digging Force (Bucket Cylinder) |
11334 lb (5152 kg) |
| Digging Force (Dipper Cylinder) |
6710 lb (3050 kg) |
| Boom Cylinder Size (Rod/Stroke) |
2.25x38.2 in (57x972 mm) |
| Dipperstick Cylinder Size (Rod/Stroke) |
2.25x24.2 in (57x629 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
2.25x35.4 in (57x898 mm) |
| Swing Cylinder Size (Rod/Stroke) |
2.0x11.5 in (51x292 mm) |
| Stabilizer Cylinder Size (Rod/Stroke) |
2.25x21.4 in (51x543 mm) |
| Maximum Digging Depth (Retracted) |
14 ft 9 in (4500 mm) |
| Maximum Digging Depth (Extended) |
18 ft 3 in (5550 mm) |
| 2-ft Flat Digging Depth (Retracted) |
14 ft 8 in (4460 mm) |
| 2-ft Flat Digging Depth (Extended) |
18 ft 4 in (5590 mm) |
| 8-ft Flat Digging Depth (Retracted) |
13 ft 8 in (4160 mm) |
| 8-ft Flat Digging Depth (Extended) |
17 ft 4 in (5290 mm) |
| Reach from Rear Axle Centerline (Retracted) |
21 ft 11 in (6680 mm) |
| Reach from Rear Axle Centerline (Extended) |
25 ft 4 in (7720 mm) |
| Reach from Swing Pivot (Retracted) |
18 ft 4 in (5570 mm) |
| Reach from Swing Pivot (Extended) |
21 ft 8 in (6600 mm) |
| Loading Height (Retracted) |
11 ft 9 in (3590 mm) |
| Loading Height (Extended) |
14 ft 1 in (4300 mm) |
| Loading Reach (Retracted) |
6 ft 9 in (2040 mm) |
| Loading Reach (Extended) |
9 ft 4 in (2840 mm) |
| Swing Arc |
180 deg |
| Bucket Rotation |
198 deg |
| Stabilizer Spread (Operating Position) |
9 ft 9 in (2970 mm) |
| Bucket Digging Force |
11334 lb (5152 kg) |
| Dipperstick Digging Force (Retracted) |
6710 lb (3050 kg) |
| Dipperstick Digging Force (Extended) |
4887 lb (2221 kg) |
| Boom Cylinder Size (Rod/Stroke) |
2.25x38.2 in (57x972 mm) |
| Dipperstick Cylinder Size (Rod/Stroke) |
2.25x24.2 in (57x629 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
2.25x35.4 in (57x898 mm) |
| Extendahoe Cylinder Size (Rod/Stroke) |
1.75x42.1 in (44.5x1068 mm) |
| Swing Cylinder Size (Rod/Stroke) |
2.0x11.5 in (51x292 mm) |
| Stabilizer Cylinder Size (Rod/Stroke) |
2.25x21.4 in (51x543 mm) |
