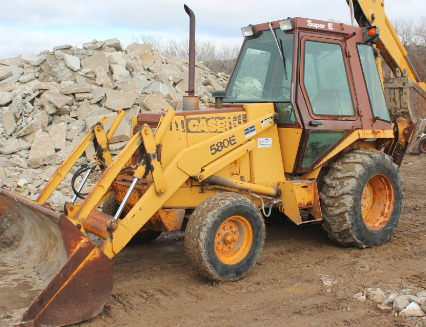

Case 580 Super E Backhoe Loader
The
Case 580 Super E is a 4-wheel drive backhoe loader from Construction King
series. This model was manufactured between 1984 and 2005. The Case 580SE is
fitted with a Case 4-390 four-cylinder direct injection liquid-cooled diesel
engine with a rated power of 69 hp (51.5 kW) and max. torque of 252 Nm (186
lb-ft) at 1200 rpm.
The power shuttle transmission consists of a 4x4 gearbox with sliding
and synchromesh gears and single-stage torque converter. The max travel
speed (forward/reverse): 21.8 mph (35.1 km/h) and 19.6 mph (31.5 km/h).
The open center hydraulic system used a positive displacement gear pump
with a flow of 23 gpm (87 lpm) for loader and 30 gpm (114 lpm) for
backhoe. The hydraulic pressure is 169 bar (2450 psi). The Case 580
Super E is fitted with 8.00x16 or 11Lx16 front tires and 16.9x24 or
17.5Lx24 rear tires. The wheel base is 82" (2080 mm).
The loader has a lift capacity (at pivot pin) of 4390 lbs (1995 kg) to a
max height of 129.1" (3280 mm), and breakout force of 7040 lbs (3200
kg). A full dump clearance with a 52-degree max dump angle is 103.1"
(2620 mm). The estimated cycle times are 5.2 seconds raising to maximum
height, and 1.1 seconds to full bucket dump. The 74" (1880 mm) standard
material bucket has a rated capacity of 21 cu.ft (0.6 m3). The 82" (2080
mm) 4-in-1 bucket has a rated capacity of 26.6 cu.ft (0.76 m3).
The backhoe has a maximum depth of 170" (4320 mm). The dipperstick
digging force is 6015 lbs (2735 kg), and bucket digging force is 11535
lbs (5245 kg). The overall reach from swing pivot at ground line is
211.8" (5380 mm). The backhoe is compatible with 12", 18", 24", 30" and
36" buckets.
| Engine Model |
Case 4-390 |
| Engine Type |
4-cylinder direct injection liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
239,3 (3,90) |
| Engine Bore, in (mm) |
4,02 (102,0) |
| Engine Stroke, in (mm) |
4,72 (120,0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
69,0 (51,5) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
252 (186) |
| Torque Speed, rpm |
1200 |
| Idle Speed, rpm |
850-2250 |
| Compression |
18,5:1 |
| Fuel System |
Direct injection |
| Lubrication System |
Positive pressure |
| Cooling System |
Pressurized |
| Air Cleaner |
Dual element |
| Oil Filter |
Replaceable, spin-on cartridge, full flow |
| Fuel Tank Capacity, gal (L) |
26,5 (100,0) |
| Oil Capacity, qts (L) |
11,0 (10,4) |
| Coolant Capacity, qts (L) |
18,9 (18,0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
42 |
| Transmission Type |
Full power shuttle and torque converter |
| Gearbox Type |
4F/4R, sliding gears and synchromesh gears |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter |
Single stage |
| Converter Ratio |
2,78:1 |
| Reversing Unit |
Power hydraulic clutches |
| Oil Capacity (Power Shuttle), qts (L) |
8,0 (7,6) |
| Oil Capacity (Transaxle), qts (L) |
20,0 (18,9) |
| Maximum Forward Speed, mph (kph) |
21,8 (35,1) |
| Maximum Reverse Speed, mph (kph) |
19,6 (31,5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Cylinder |
Double acting type |
| Steering Cylinder Size (Diameter/Stroke), in (mm) |
1,5x6,5 (38x165) |
| Brakes Type |
Hydraulic disc |
| Brake Disc Diameter, in (mm) |
8 (203) |
| Front Tire Size (Std) |
7.50x16 |
| Rear Tire Size (Std) |
14.9x24 |
| Front Tire Size (Opt) |
8.00x16 |
| Rear Tire Size (Opt) |
16.9x24 |
| Front Tire Size (Industrial) |
11Lx16 |
| Rear Tire Size (Industrial) |
17.5Lx24 |
| Front Tread Width, in (mm) |
59-62 (1500-1575) |
| Rear Tread Width, in (mm) (min) |
62 (1575) |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Type |
Positive displacement, gear type |
| Implement Pump Flow (Loader), gpm (Lpm) |
23,0 (87,0) |
| Implement Pump Flow (Backhoe), gpm (Lpm) |
30,0 (114,0) |
| 3-Point Mod Hitch Pump Flow, gpm (Lpm) |
23,0 (87,0) |
| Steering Pump Flow, gpm (Lpm) |
7,0 (26,0) |
| Hydraulic Pressure, Bar (psi) |
169 (2450) |
| 3-Point Mod Hitch Pressure, Bar (psi) |
124 (1800) |
| Steering Pressure, Bar (psi) |
145 (2100) |
| Hydraulic System Capacity, gal (L) |
23.8 (90.0) |
| Number of Standard Remote Valves (Loader) |
2/3 |
| Number of Standard Remote Valves (Backhoe) |
2/4 |
| Wheelbase, in (mm) |
82 (2080) |
| Overall Length, in (mm) |
133,9 (3400) |
| Height (w/o Cab), in (mm) |
103,1 (2620) |
| Height (with Cab), in (mm) |
103,9 (2640) |
| Height (Steering Wheel), in (mm) |
72,8 (1850) |
| Overall Width, in (mm) |
81 (2060) |
| Ground Clearance, in (mm) |
9,1 (230) |
| Turning Circle (with Brakes), in (mm) |
254 (6450) |
| Turning Circle (w/o Brakes), in (mm) |
289 (7340) |
| Operating Weight, lb (kg) |
12060 (5470) |
| Height to Bucket Hinge Pin, in (mm) |
129,1 (3280) |
| Dump Clearance at Full Height (Dump-Clam), in (mm) |
120 (3050) |
| Dump Clearance at Full Height (Dump-Bucket), in (mm) |
103,1 (2620) |
| Dump Angle at Full Height, deg |
52 |
| Dump Reach at Full Height, in (mm) |
27 (686) |
| Reach with Bucket on Ground, in (mm) |
77 (1960) |
| Grading Angle (Clam Closed), deg |
103 |
| Digging Depth Below Ground Line Bucket Flat, in (mm) |
5.3 (133) |
| Digging Depth (Using Clam), in (mm) |
47 (1190) |
| Digging Depth (Clam Open), in (mm) |
5 (127) |
| Overall Length, in (mm) |
192,1 (4880) |
| Bucket Rollback at Ground line, deg |
46 |
| Lift Capacity to Full Height, lb (kg) |
4390 (1995) |
| Breakout Force, lb (kg) |
7040 (3200) |
| Lift Cylinder (Rod/Stroke), in (mm) |
1,75x31,5 (44x800) |
| Bucket Cylinder (Rod/Stroke), in (mm) |
1,5x20 (38x508) |
| Clam Cylinder (Rod/Stroke), in (mm) |
1,75x9 (44x230) |
| Pitch Cylinder (Rod/Stroke), in (mm) |
1,25x7 (32x178) |
| Digging Depth, in (mm) |
170 (4320) |
| Digging Depth with 24" HC Bucket, in (mm) |
175,2 (4450) |
| Overall Reach from Rear Axle Centerline, in (mm) |
254 (6450) |
| Overall Reach from Swing Pivot, in (mm) |
211,8 (5380) |
| Loading Height, in (mm) |
133,9 (3400) |
| Loading Reach, in (mm) |
79 (2010) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
168 |
| Stabilizer Spread (Operating Position), in (mm) |
107,9 (2740) |
| Stabilizer Spread (Transport Position), in (mm) |
81,3 (2060) |
| Stabilizer Angle from Straight, deg |
20 |
| Max Transport Height, in (mm) |
135,3 (3430) |
| Digging Force (Bucket Cylinder), lb (kg) |
11535 (5245) |
| Digging Force (Dipper Cylinder), lb (kg) |
6015 (2735) |
| Stabilizers Cylinder (Rod/Stroke), in (mm) |
2x21,77 (51x553) |
| Swing Cylinder (Rod/Stroke), in (mm) |
2x11,2 (51x285) |
| Boom Cylinder (Rod/Stroke), in (mm) |
1,75x42,1 (44x1070) |
| Dipper Cylinder (Rod/Stroke), in (mm) |
2x33,87 (51x860) |
| Bucket Cylinder (Rod/Stroke), in (mm) |
2,5x30,56 (64x776) |
| Dipper Extension Cylinder (Rod/Stroke), in (mm) |
1,5x48 (38x1220) |
