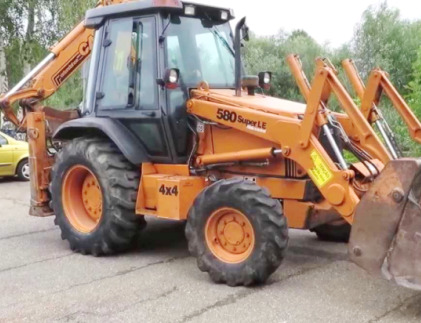

Case 580SLE Backhoe Loader

The Case 580 Super LE backhoe loader was manufactured from 1998 to 2002. The Case 580 SLE is powered by Case 4T-390 4-cylinder direct injection turbocharged liquid-cooled diesel engine with a rated power of 91.2 Hp (68.1 kW). The power shuttle transmission includes a 4x4 mechnical gearbox with synchronised shifting, and single-stage torque converter.

The max travel speed (forward/reverse): 21.5 mph (34.4 km/h) and 25.9 mph (41.5 km/h). The open center hydraulic system with sectional type valve blocks has a crankshaft driven tandem gear pump with a flow of 28.5 gpm (108 lpm).

The hydraulic pressure is 210 bar (3045 psi). The Case 580 SLE backhoe loader is equipped with 10.5/80x18 (2WD) or 12.5/80x18 (4WD) front tyres and 16.5/85x28 rear tyres. The wheel base is 84" (2135 mm).

The loader’s maximum lift height is 133.8" (3400 mm) at pin, and bucket dump clearance is 97.2" (2470 mm). The lift capacity is 6182 lbs (2804 kg) at full height (bucket pin), and bucket's breakout force is 9667 lbs (4530 kg). The front-end loader is compatible with a 82" (2080 mm) standard material bucket with a rated capacity of 1.1 cu.yd (0.80 cu.m).

The backhoe with extendable stick has a max depth of 18.3 ft (5580 mm). The bucket digging force is 13123 lbs (5954 kg), and dipper stick digging force is 5795 lbs (2635 kg). The reach from swing pivot at ground level is 21.1 ft (6430 mm). The backhoe is compatible with 12, 16", 18", 24", 30", and 36" buckets.

Engine
Engine Model Case 4T-390
Engine Type 4-cylinder direct injection turbocharged diesel
Number of Cylinders 4
Displacement, cu in (L) 239,3 (3,90)
Engine Bore, in (mm) 4,02 (102,0)
Engine Stroke, in (mm) 4,72 (120,0)
Aspiration Turbocharged
Rated Engine Power, hp (kW) 91,2 (68,1)
Rated Engine Speed, rpm 2200
Maximum Torque, Nm (ft-lbs) 354 (261)
Torque Speed, rpm 1500
Idle Speed, rpm 850-2355
Compression 17:1
Fuel System Direct injection
Air Cleaner Dual element
Oil Filter Replaceable, spin-on cartridge, full flow
Fuel Tank Capacity, gal (L) 31.4 (119,0)
Oil Capacity, qts (L) 11,0 (10,4)
Coolant Capacity, qts (L) 17.5 (16,5)
Electrical System Rating, Volts 12
Alternator Rating, Amps 65

Transmission
Transmission Type Power Shuttle
Gearbox Model Carraro
Gearbox Type 4F/4R, mechnical with synchronised shifting
Number of Forward Gears 4
Number of Reverse Gears 4
Torque Converter Single stage
Converter Ratio 3,24:1
Oil Capacity, qts (L) 19,6 (18,5)
Maximum Forward Speed, mph (kph) 21,5 (34,4)
Maximum Reverse Speed, mph (kph) 25,9 (41,5)


Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front steer
Steering System Hydrostatic power
Steering Cylinder Double acting type
Service Brakes Hydraulic disc
Front Tire Size (2WD) 10,5/80x18
Rear Tire Size (2WD) 16,5/85x28
Front Tire Size (4WD) 12,5/80x18
Rear Tire Size (4WD) 16,5/85x28
Front Tread Width, in (mm) 67,5 (1715)
Rear Tread Width, in (mm) (min) 61,2 (1555)

Hydraulic System
Hydraulic System Type Open center, sectional type valve blocks
Hydraulic Pump Type Crankshaft driven tandem gear pump
Implement Pump Flow, gpm (Lpm) 28,5 (108,0)
Hydraulic Pressure, Bar (psi) 210 (3045)
Number of Standard Remote Valves (Loader) 3/4
Number of Standard Remote Valves (Backhoe) 6/7

Dimensions and Weight
Wheelbase, in (mm) 84 (2135)
Transport Length, in (mm) 272,5 (6920)
Transport Height, in (mm) 230,3 (5850)
Transport Width, in (mm) 86,4 (2195)
Ground Clearance, in (mm) 15 (380)
Turning Circle (2WD, with Brakes), in (mm) 300,4 (7630)
Turning Circle (2WD, w/o Brakes), in (mm) 409,4 (10400)
Turning Circle (4WD, with Brakes), in (mm) 295,3 (7500)
Turning Circle (4WD, w/o Brakes), in (mm) 402,4 (10220)
Operating Weight, lb (kg) 13285 (6025)

Loader
Maximum Lift Height, in (mm) 133,8 (3400)
Clearance at Max Dump Height, in (mm) 97,2 (2470)
Reach at Max Dump Height, in (mm) 27,7 (705)
Digging Depth, in (mm) 5,9 (150)
Lift Capacity at Full Height, lb (kg) 6182 (2804)
Bucket Breakout Force, lb (kg) 9667 (4530)
Bucket Width, in (mm) 82 (2080)
Bucket Capacity, cu.yd (m3) 1,1 (0,80)

Backhoe
Digging Depth (Std), ft (mm) 14,5 (4420)
Digging Depth (Ext), ft (mm) 18,3 (5580)
Reach From Swivel (Std), ft (mm) 18,1 (5515)
Reach From Swivel (Ext), ft (mm) 21,1 (6430)
Load Height (Std), ft (mm) 11,2 (3415)
Load Height (Ext), ft (mm) 13,3 (4055)
Reach at Load Height (Std), ft (mm) 8,9 (2710)
Reach at Load Height (Ext), ft (mm) 11,6 (3535)
Bucket Digging Force (Std), lb (kg) 13125 (5955)
Bucket Digging Force (Ext), lb (kg) 13123 (5954)
Load at Max Lift (Std), lb (kg) 2395 (1085)
Load at Max Lift (Ext), lb (kg) 1603 (727)
